34
automatically readjusted only at the request of the user (One Push Trigger), assuming that a white subject, in cor-
rect lighting conditions can occupying more than 1/2 of the image. One Push White Balance data is lost when the
power is turned o. If the power is turned o, you'll need to reset One Push White Balance.
To select OPW:
1. Place a white subject (i.e., sheet of white paper) in the center of the frame.
2. Press the remote controller HOME button to activate the one-push white balance adjustment.
ATW (Auto Tracking White Balance): Auto Tracking White balance (2000K to 10000K), allows the camera to ad-
just the white balance according to the temperature of the light source illuminating the subject.
Manual 1 / Manual 2: These two user modes allow you to manually set the following color balance parameters.
Cam Red/Blue Gain
Sets the intensity of red and blue colors in the image.
Cam Color Temp
Sets the color temperature of the image in degrees Kelvin.

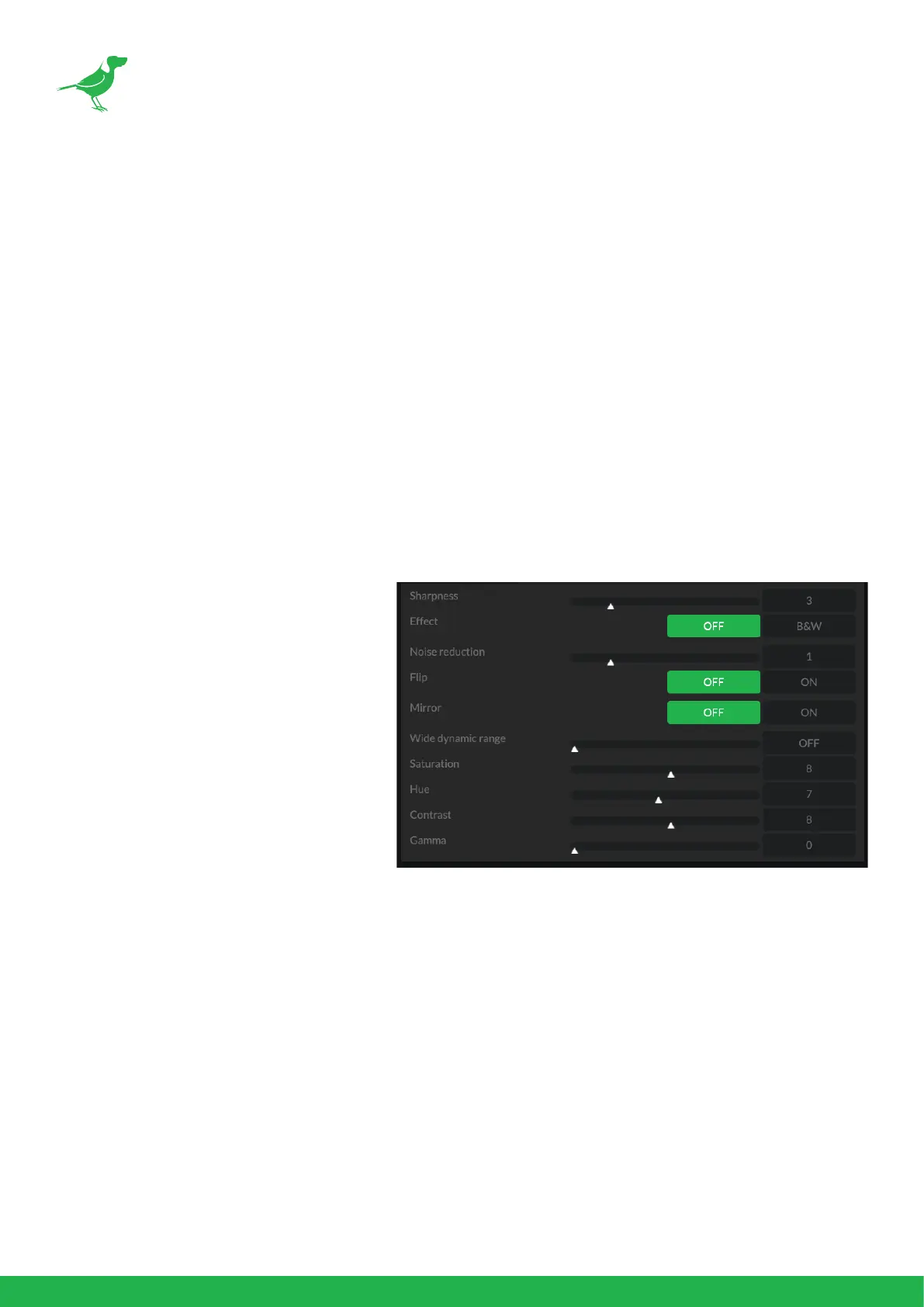

Picture Tab
Sharpness
Adjusts the picture sharpness value from 0
to 15.
Eect
Select from Monochrome Image (B&W) or
Color image (OFF).
Noise Reduction
Can reduce the level of image noise. Select
from 6 levels - OFF, 1 - 5 (MAX).
Flip
Flips the image upside down for ceiling
mounted cameras. Select from upright mode
(OFF) or ceiling mount (ON).
Mirror
Displays a mirror image of the video image.
WDR (Wide dynamic range mode)
The WDR feature is available on certain product models. The camera adjusts the image brightness for both the
extreme dark and bright areas of the image.
Saturation
Adjusts the intensity of colours in the image from a range of 1-15.
Hue
Adjusts the color phase from 1-15.
Contrast
You can adjust the contrast level in the range from 0 (00h) to 255 (FFh). The initial setting is 128 (80h). The smaller
the value lowers the contrast.
Gamma
Adjusts the gamma of the image from 0 to 1.
