16 | Chapter 2: Hardware installaon

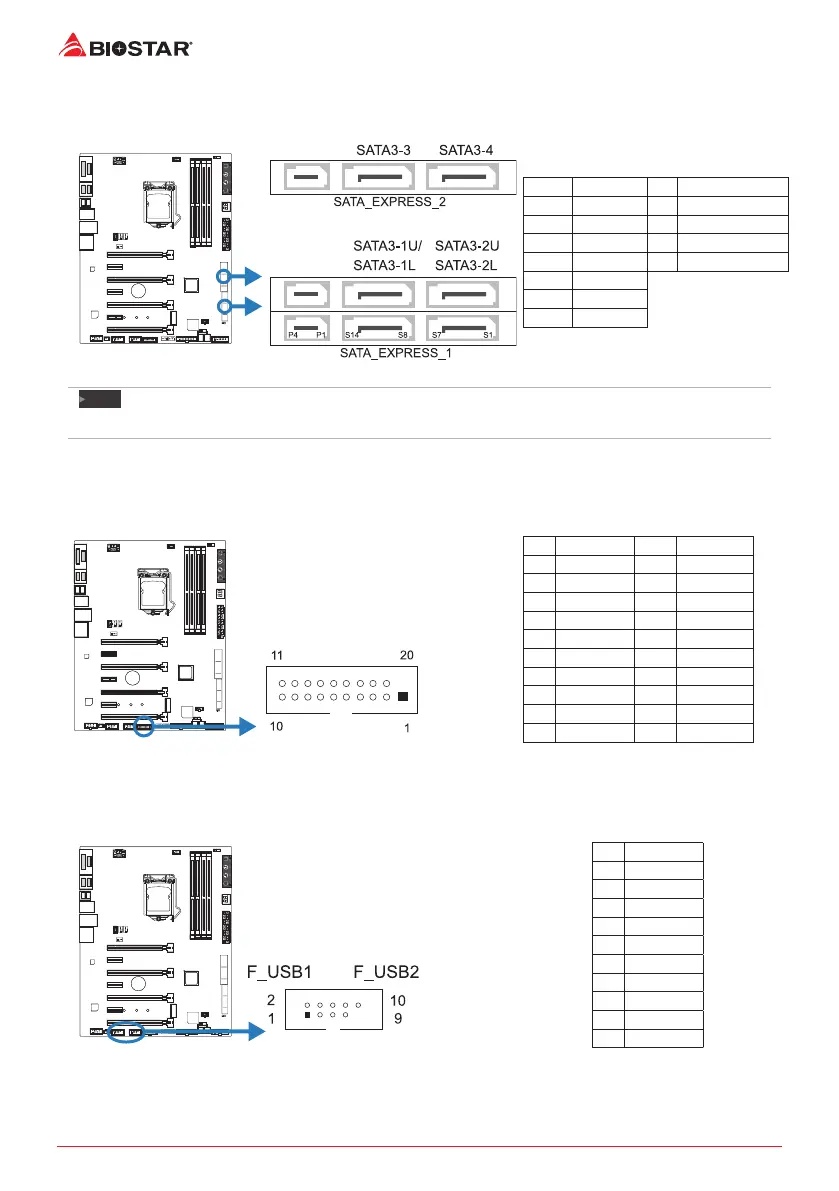

SATA_Express_1/2: SATA Express Connector
Each SATA Express connector can support one SATA Express device or two SATA devices.
Pin Assignment Pin Assignment
S1/S8 Ground P1 Reserved
S2/S9 TX+ P2 PERST#
S3/S10 TX- P3 CLKREQ#/DEVSLP
S4/S11 Ground P4 IFDet
S5/S12 RX-
S6/S13 RX+
S7/S14 Ground
Note
WhenusingSSDmoduleonPCIE-M2_1slot,theSATA_EXPRESS_2connectorwillbedisabled.
»
JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel
This header allows user to add addional USB ports on the PC front panel, and also can be
connected with a wide range of external peripherals.
Pin Assignment Pin Assignment
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID 20 Key
F_USB1/2: Header for USB 2.0 Ports at Front Panel
This header allows user to add addional USB ports on the PC front panel, and also can be
connected with a wide range of external peripherals.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10 NC
