12 | Chapter 2: Hardware installaon

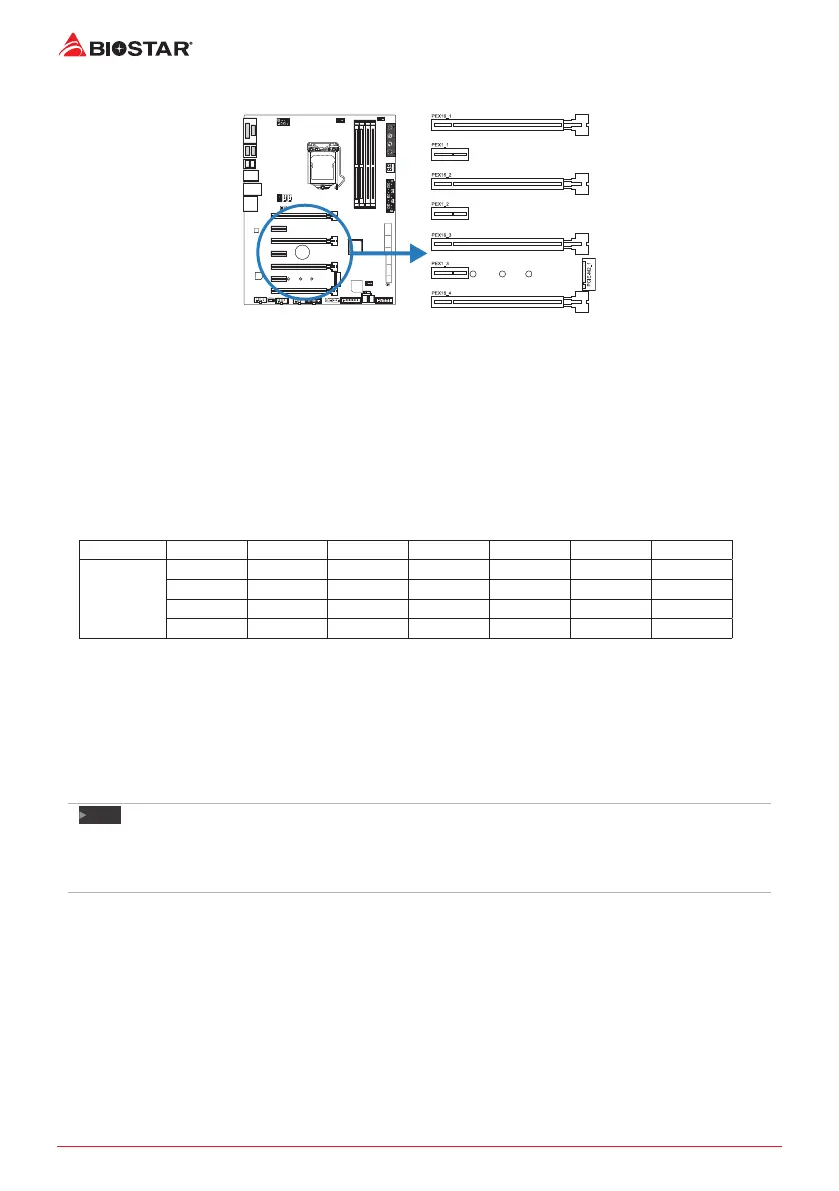

2.5 Expansion Slots

PEX16_1/16_2/16_3/16_4: PCI-Express Gen3 x16 Slots

•  PCI-Express 3.0 compliant.

•  Maximum theorecal realized bandwidth of 16GB/s simultaneously per direcon, for an

aggregate of 32GB/s totally.

•  Supports 3-Way AMD® CrossFire™ Technology

PEX1_1/1_2/1_3: PCI-Express Gen3 p12-x1 Slots

•  PCI-Express 3.0 compliant.

•  Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total

PCI Express Slots Combinaon Table

Slots PEX16_1 PEX16_2 PEX16_3 PEX16_4 PEX1_1 PEX1_2 PEX1_3

PCIe Slot

Max. Speed

x16 -- x2 x4 x1 x1 x1

x16 -- x4 x4 x1 -- --

x8 x8 x2 x4 x1 x1 x1

x8 x8 x4 x4 x1 -- --

--:theslotisnotbeusedbyanyexpansioncard 

»

theactualPCIecardspeedwilldependonitsrunningstatus 

»

PCIE-M2_1: M.2 (Key M) Slot

•  The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

•  The M.2 slot supports M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to

Gen3 p12-x4 (32Gb/s)

Note

WhenPEX16_3andPEX16_4slotsarebothinstalledgraphicscards,AMDCrossre™Technology 

»

willbedisabled.

WhenusingSSDmoduleonPCIE-M2_1slot,theSATA_EXPRESS_2connectorwillbedisabled. 

»

Install an Expansion Card

You can install your expansion card by following steps:

•  Read the related expansion card’s instrucon document before install the expansion card into the

computer.

•  Remove your computer’s chassis cover, screws and slot bracket from the computer.

•  Place a card in the expansion slot and press down on the card unl it is completely seated in the

slot.

•  Secure the card’s metal bracket to the chassis back panel with a screw.

•  Replace your computer’s chassis cover.

•  Power on the computer, if necessary, change BIOS sengs for the expansion card.

•  Install related driver for the expansion card.
