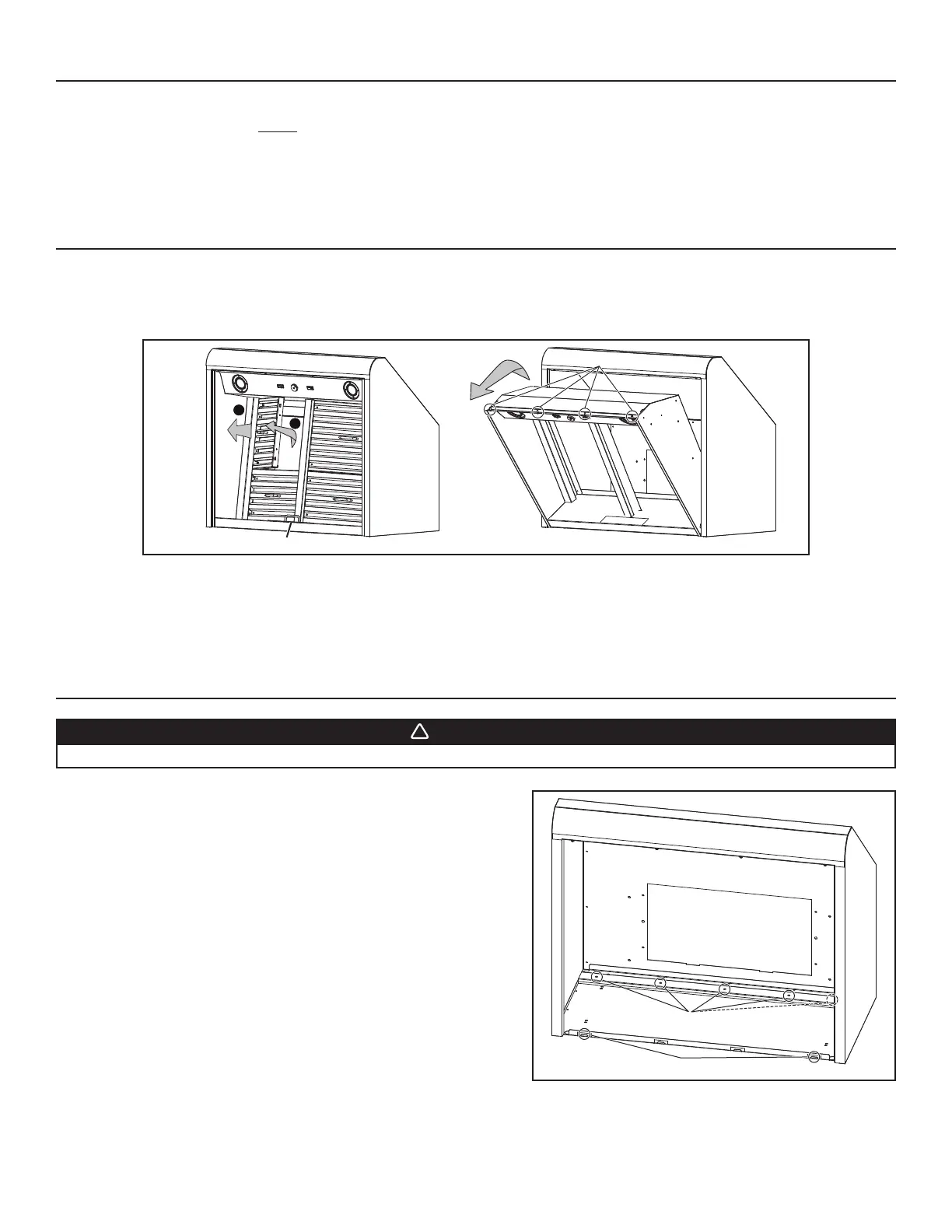

7. INSTALL HOOD
WARNING
!
Hold the hood until it is completely secured to the wood mounting strip.
Rest the back cavity of the hood on the wood mounting strip.
Secure the hood to the wood mounting strip using 5 no. 10 x 2" hex head
screws at locations shown at right. Drill two 3/16" diameter holes into the wall
for wall anchors through the existing holes in the lower back of the hood at
locations shown at right. Then, install both wall anchors with both no. 8 x 5/8"
screws and washers provided.
HD0479
W
ALL
ANCHORS
LOCATION
M
OUNTING
SCREWS
LOCATION
5. INSTALL WALL EXTENSION (OPTIONAL)
AWWPD Series
Wall extension must be installed before the hood (see instructions packed with wall extension).
6. REMOVE BAFFLE FILTERS, GREASE TRAY AND PANEL ASSEMBLY
Remove tape on filters. Remove filters from hood (as illustrated below) and set aside.
Remove tape on grease tray. Lift and pull grease tray to remove and set aside.
Remove panel assembly retaining screws (4, 5 or 6 depending on hood width) and set aside. Tilt panel assembly forward.
HD0461
1
2
GREASE TRAY
R
ETAINING
SCREW
LOCATIONS
