MAINTENANCE
REPLACING COMPONENTS
Disconnect the appliance from the power mains before
carrying out any maintenance procedure.
Contact an authorized service center if functional and
electrical components require replacement.
WARNING
If the power cable requires replacement,
the installer/maintenance technician
must use a cable of the type and with
the cross-section as per the table and
leave the earth lead about 2 cm longer
than the phase leads. The instructions
given for the initial electrical connection
must also be complied with.
Permitted cable types: H05VV-F, H05RR-F, H07RN-F
TYPE OF
CONNECTION
VOLTAGE
CABLE
SECTION
SINGLE-
PHASE
220-240 V 5x2.5 mm
2
TWO-PHASE 220-240/380- 415 V2N~ 4x4 mm
2
THREE-PHASE 220-240/380- 415 V3N~ 5x1.5 mm
2
For the two-phase or three-phase connection, follow the
procedure below:
1) Turn the hob over and place it on a cloth or other soft
surface to avoid scratching it.

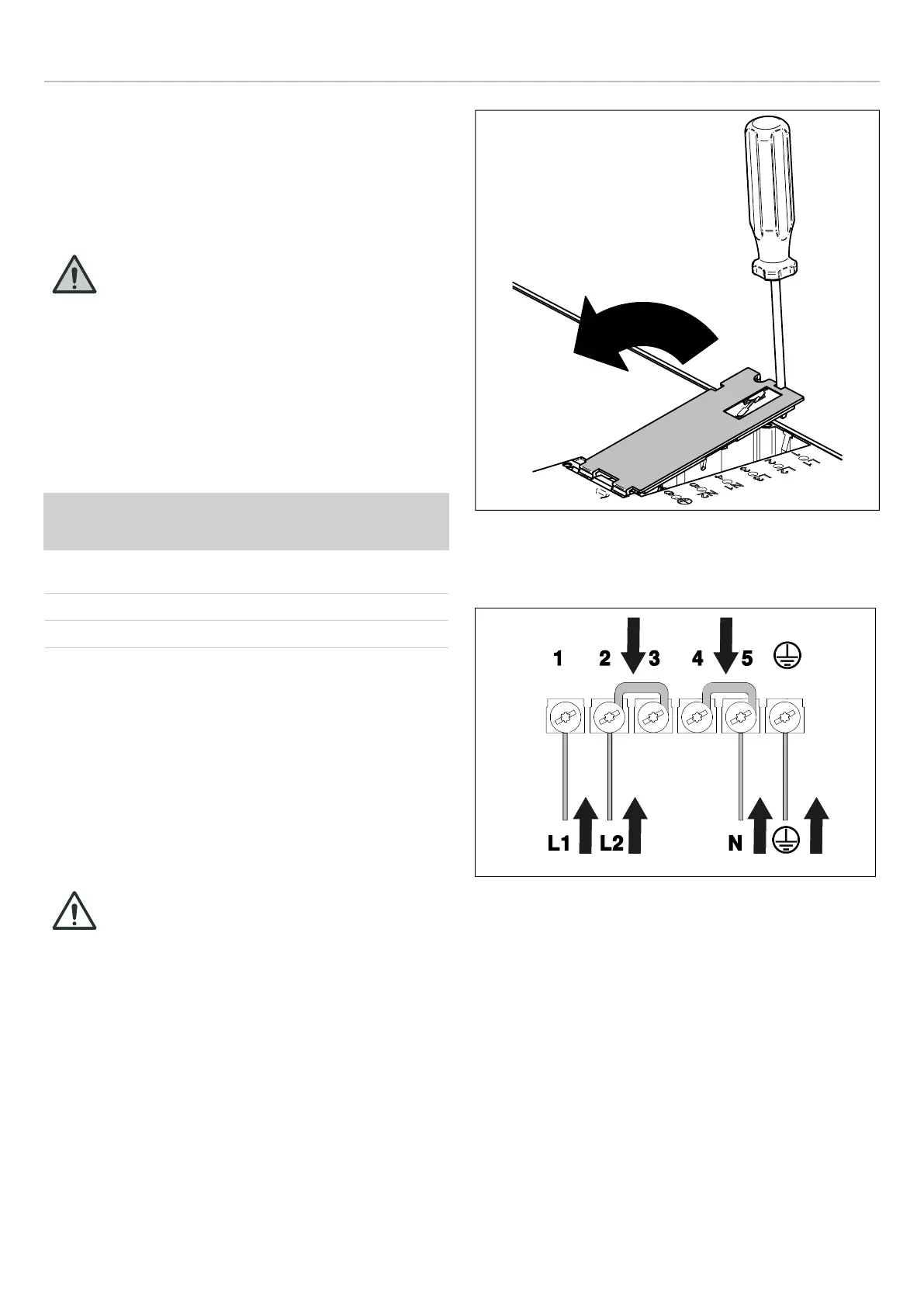

2) Remove the terminal block cover and the cable clamp
using a screwdriver. Unscrew the cable fixing clamps
and remove the cable and jumpers.
3) Depending on the connection required, prepare the
jumpers, insert the cables into the terminals and tighten
the screws adequately. Refit the cable clamp and
terminal block cover.
CAUTION
Make sure that the cables and jumpers are
correctly fixed and that the screws are
properly tightened.
For the different electrical connection
possibilities, use the brass connection
jumpers already assembled in the terminal
block.
Fig. 14
• Two-phase connection 4x4 mm
2
220-240 / 380- 415V
2N~
Fig. 15
POWER LIMITATION
Power limitation defines how much power is used by the
hob in total, within the limits of the fuses for domestic
installation.
The hob is preset to the maximum power level.
To set a different power limit, see chapter POWER
FUNCTION, obviously the higher the power set, the greater
the number of functions and power levels that can be used
simultaneously on the cooking zones.
1
2
3 4 5
L1
L2 N
63
