INSTALLATION INSTRUCTIONS
The installation comes under the exclusive responsibility of specialists.
The installer is held to respect the legislation and the standards enforce in his home country.

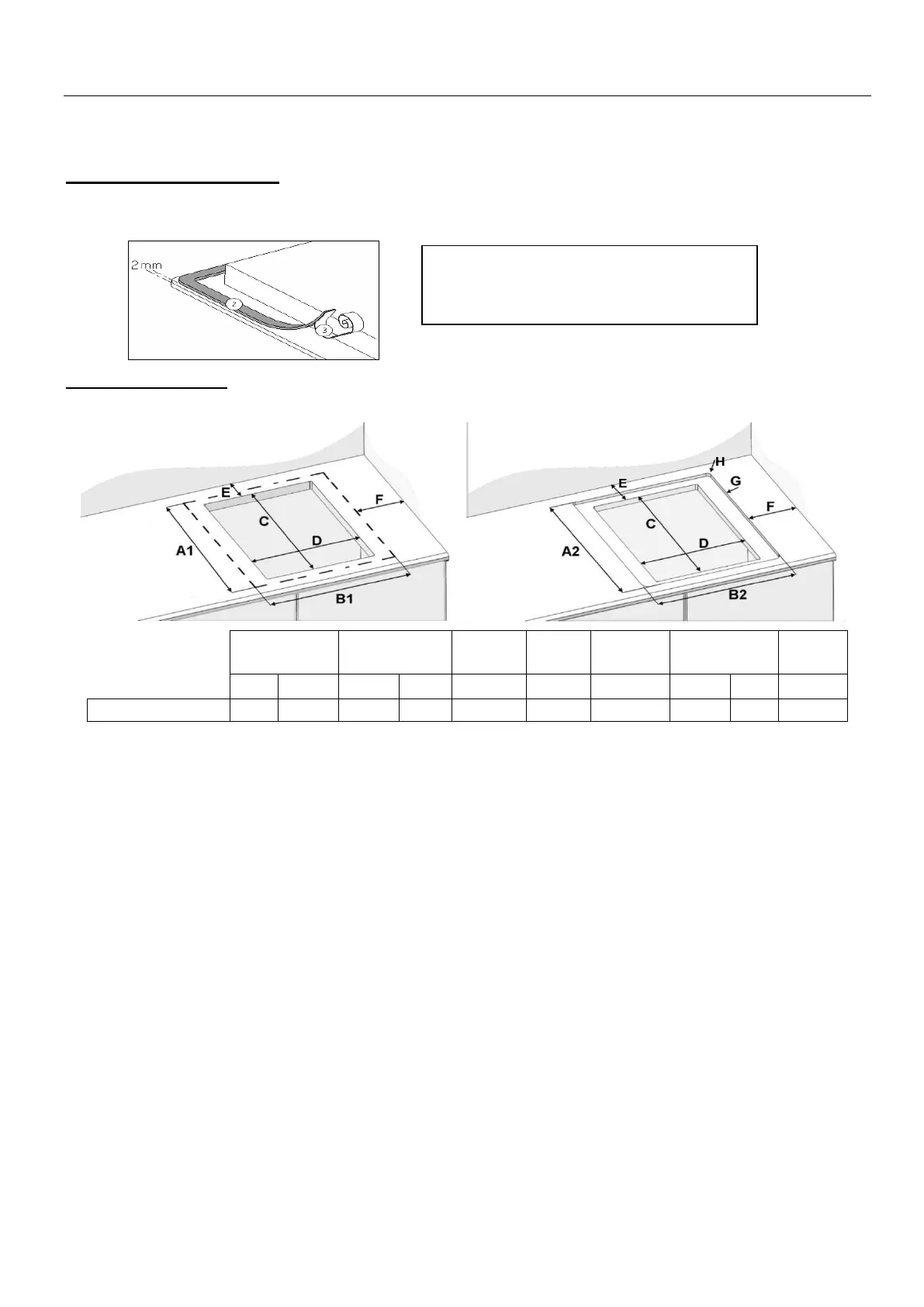

How to stick the gasket:
The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.
His installation has to be done carefully, in conformity of the following drawing.
Fitting - installing:
The cut-out sizes are:
Glass size
Cut-out
size
Rear
Side
Radius
Cut size
Deep
A1
B1
C
D
E
F
H
A2
B2
G
P885IC2G5NE
520
880
490
815
50
40
8
526
886
5
Stick the gasket (2) two millimeters
from the external edge of the glass,
after removing the protection sheet (3).
Flushed :
