INSTALLATION

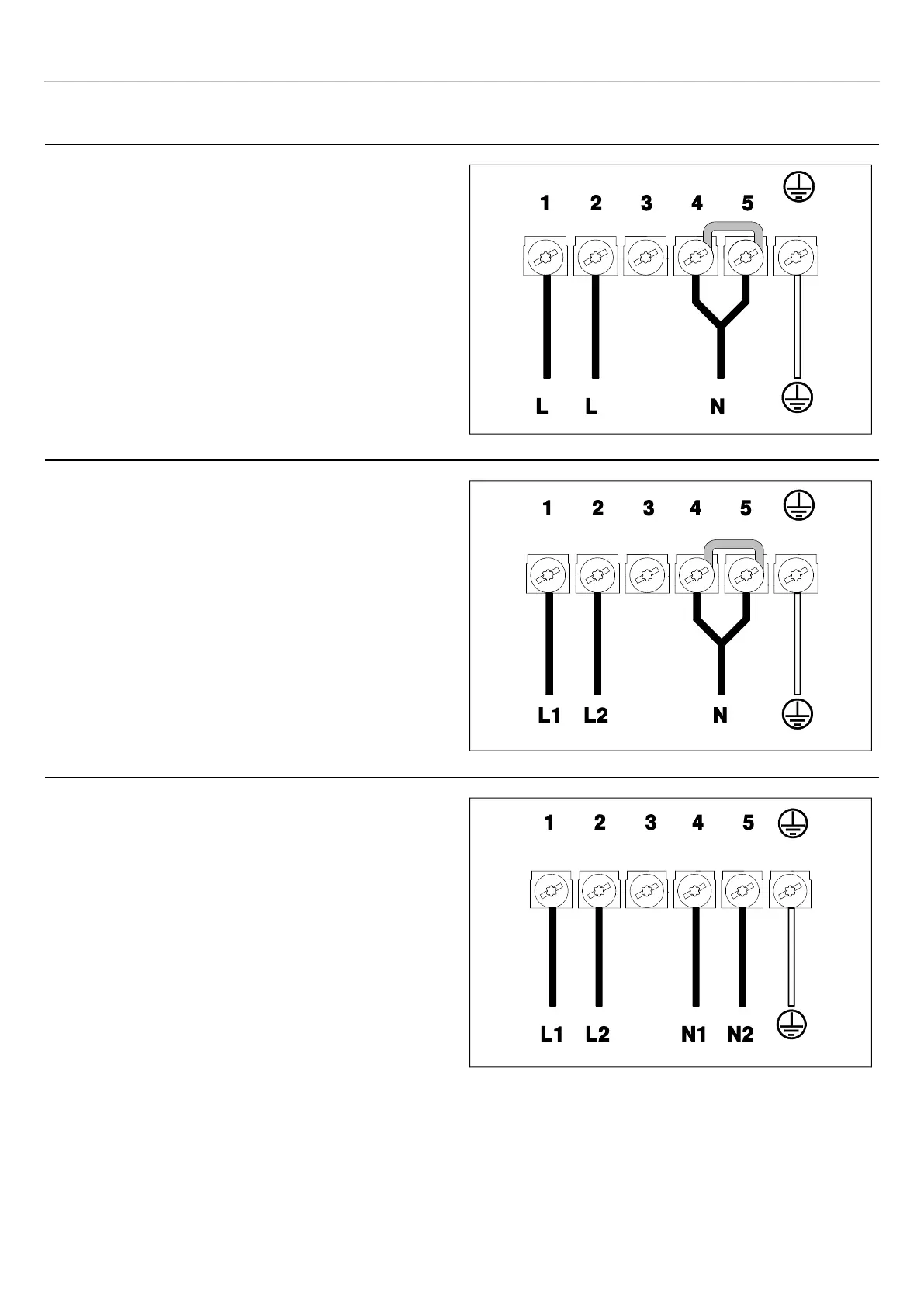

POSSIBLE CONNECTIONS WITH THE CABLE SUPPLIED
SINGLE-PHASE CONNECTION
• Connect the two paired wires in the BLUE sheath to the
mains neutral
• Connect the yellow-green wire to the mains earth
• Connect the two black and brown wires together to the
mains phase
• Cable section: 5 x 1.5 mm
2
• Voltage: 220-240 V1N~
TWO-PHASE CONNECTION
• Connect the two paired wires in the BLUE sheath to the
mains neutral
• Connect the yellow-green wire to the mains earth
• Connect the brown wire L1 to F1 of the mains
• Connect the black wire L2 to F2 of the mains
• Cable section: 5 x 1.5 mm
2
• Voltage: 220-240/380-415 V2N~
Remove the jumper from the terminal board (for
instructions see chapter REPLACING COMPONENTS)
TWO-PHASE CONNECTION NL
• Separate the two neutral wires with the BLUE sheath
and connect the blue wire to N1 and the grey wire to N2
• Connect the yellow-green wire to the mains earth
• Connect the brown wire L1 to F1 of the mains
• Connect the black wire L2 to F2 of the mains
• Cable section: 5 x 1.5 mm
2
• Voltage: 220-240 V2N~
L L
N
1
2
3
4
5
1
L1 L2 N
2 3 4 5
1
L1 L2 N1 N2
2 3 4 5
51
