Handleiding

98

Installation

6003417_a – 26.09.2017

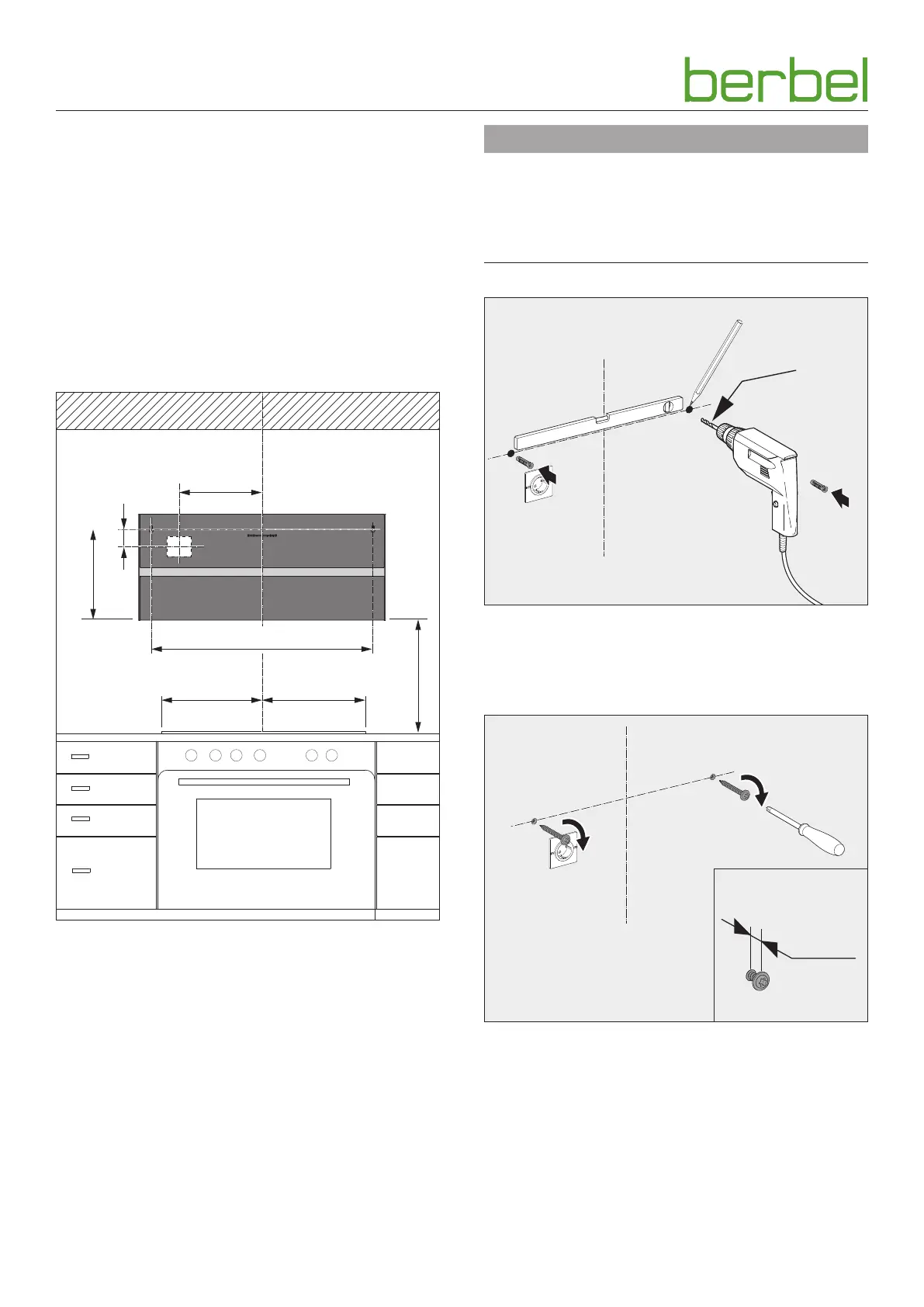

3.4.4 Hang the device in place

The device is designed to be hung on walls.

When mounting on a solid wall:

☞ Make sure that the wall has sufficient load bearing

capacity.

☞ Use the fastening materials provided.

With different installation situations:

☞ Enquire about alternative fastening systems (e.g. consult

with your architect).

☞ Only use fastening hardware suitable for the type of wall.

x

340

105

==

600

245

Safety distance (x):

y Recommendation 450 mm.

y With gas hobs, at least 650 mm.

Distances from the centre point of the socket opening on the

device rear:

y Top 105 mm from the left fastening point.

y Side 245 mm from the hood centre axis.

☞ Determine the hanging position.

☞ Make sure that the safety distance is complied with.

D WARNING

Risk of death due to explosions or electric shock!

Drilling through gas, water or electrical lines can lead to

hazardous situations.

☞ Ensure that there are no lines in the wall at the fastening

points.

Ø 8

☞ Determine the locations of the fastening points and mark

them.

☞ Drill the holes in the wall.

☞ Insert the wall plugs into the holes.

a

a = 7

The fastening screws are only tightened once the device has

been aligned.

☞ Tighten the mounting screws appropriately.
