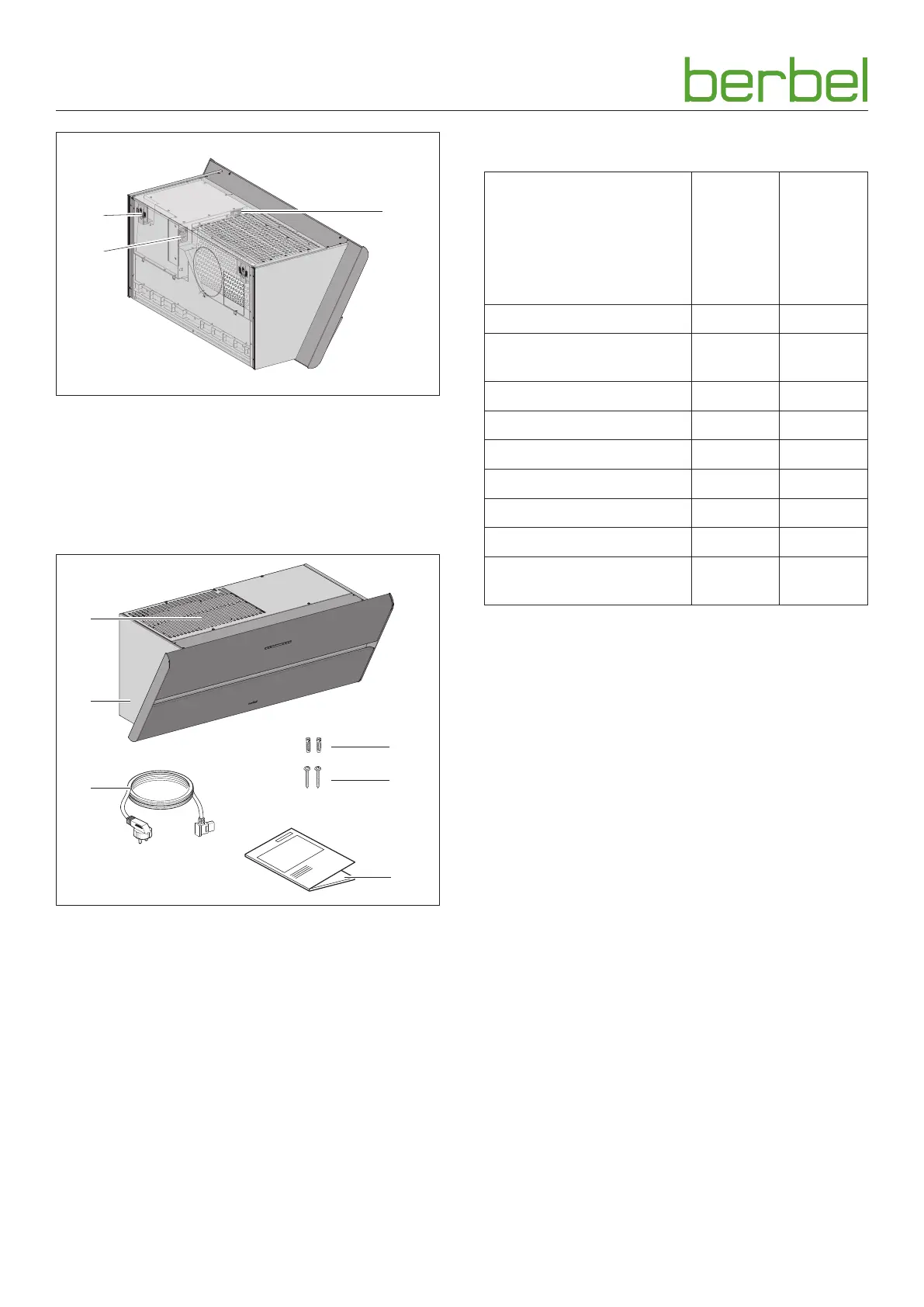

Product information

6003417_a – 26.09.2017

A

B

C

A Adjusting screws for alignment

B Connector for mains cable

C Connection terminals for wall box, window contact switch

(multifunction contact) and bus connection

2.4 Scope of delivery

C

E

F

D

B

A

A Recirculated air filter (in the hood body). The model is

dependent on the version:

y BUF-BDL recirculated air filter

y Recirculated air filter permalyt BUR BKH ST

B Hood body with front panel

C Cold device cable

D 2 nylon wall plugs 8 mm

E 2 Torx screws TX30 with integrated washers

F Operating and installation instructions

The fastening materials are only suitable for solid walls.

2.5 Technical data

BKH80ST

BKH90ST

Connection voltage 230 V / 50 Hz 230 V / 50 Hz

Total power

186 W,

311 W

1

186 W,

311 W

1

Fan power consumption 170 W 170 W

Lighting LED 15.6 W LED 15.6 W

Illumination on the hob surface 387 lx 387 lx

Width 800 mm 900 mm

Depth 420 mm 420 mm

Height 389 mm 389 mm

Net weight

28.5 kg,

30.0 kg

1

29.5 kg,

31.0 kg

1

Version with recirculated air filter permalyt

Information on the model (e.g. serial number, year of

construction) is quoted on the front panel.

D “2.3 Product overview” (page 93).
