Installation

6003417_a – 26.09.2017

EN

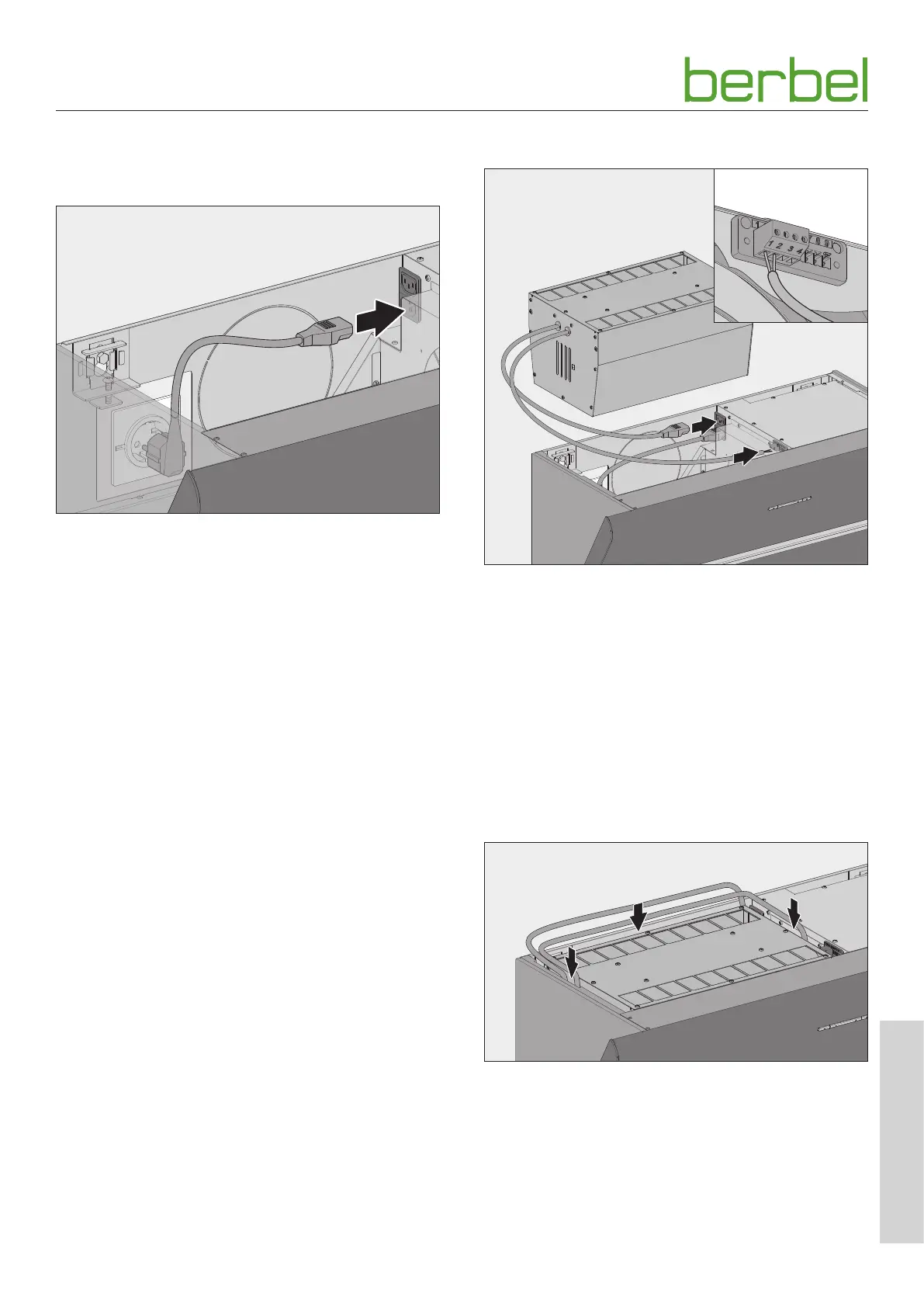

3.4.6 Establish electrical power supply

☞ Observe the voltage specifications on the rating plate.

☞ Plug the connecting cable mains plug into the socket.

☞ Route the cable such that it is not kinked, crushed or

damaged and so that it will not get in the way when

replacing the filter filling.

☞ Make sure the device can be disconnected from the

electricity supply after installation.

3.4.7 Installing the recirculated air filter permalyt

☞ Connect the recirculated air filter permalyt as follows:

y Wire 1 on terminal 1

y Wire 2 on terminal 2

☞ Plug the cold device plug into the socket on the fan

housing.

A connection check takes place automatically:

y If the device is not connected correctly, five beeps will

sound.

☞ Correct the connection of the wires to terminals 1 and

2.

y If the device is connected correctly, three will beeps

sound.

☞ Insert the recirculated air filter permalyt.

☞ Lay the cable from the recirculated air filter permalyt

through the guide channel.
