146
Maintenance
6003396_a – 27.03.2017

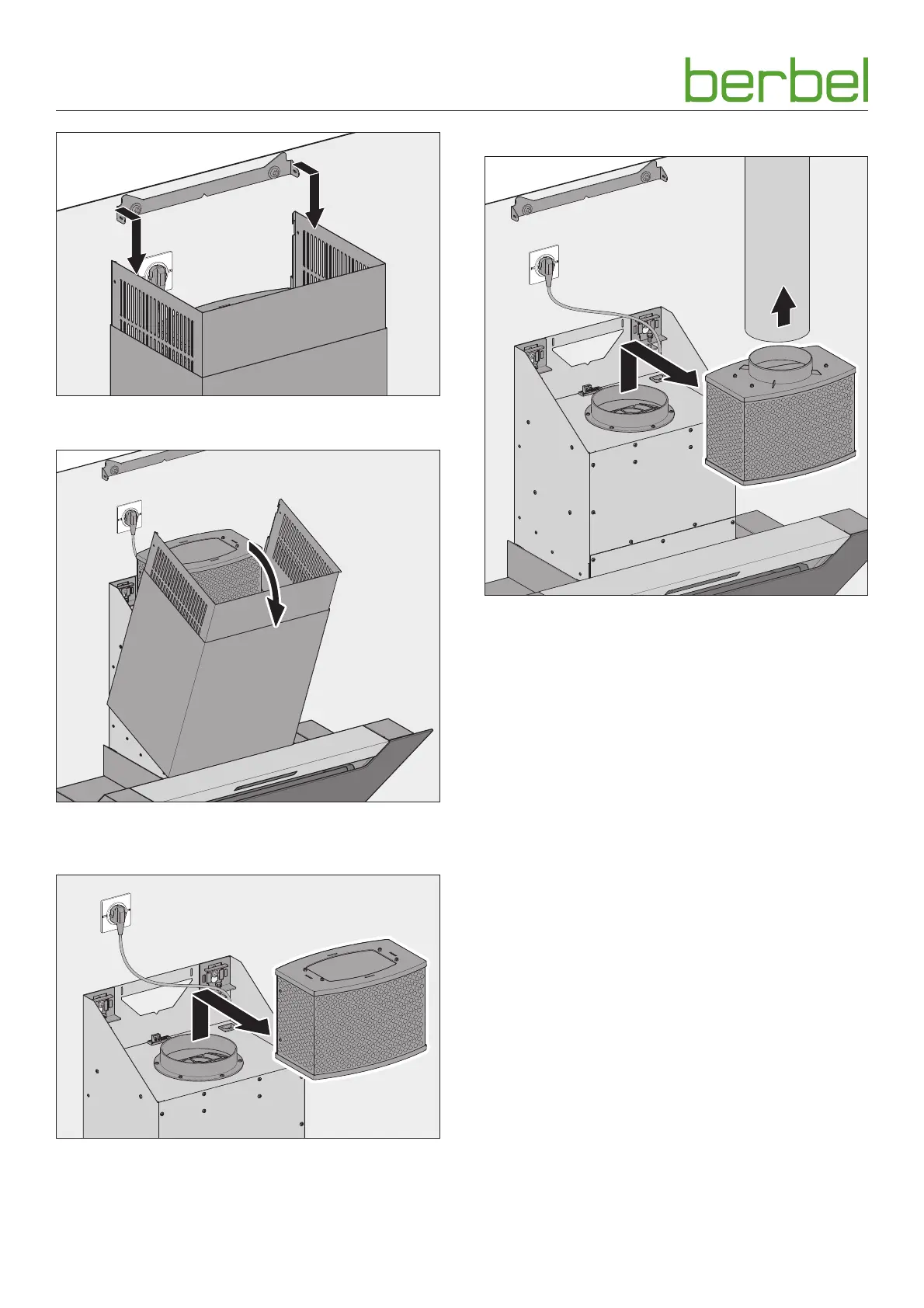

Slide the inner chimney duct downwards.
Lift the chimney away from the device.
Remove the recirculation air filters
Lift the filter at least 30 mm.
Remove the filter to the front.
Removing the hybrid filter
1.
2.
Remove the exhaust pipe from the hybrid filter.
Lift the filter at least 30 mm.
Remove the filter to the front.
The replacement of the filter filling is carried out as
described in the associated instructions.
Change the filter filling.
Clean the filter from the outside (e.g. through extraction
with a vacuum cleaner).
Re-fit the filter.
D “3.5.6 Install filter (with recirculating and hybrid
operation)” (page 135).
Mount the chimney.
D “3.5.9 Mounting the chimney” (page 137).
Switch off the check indicator on the control panel.
D “4.4 Configuration” (page 142).
