136
Installation
6003396_a – 27.03.2017

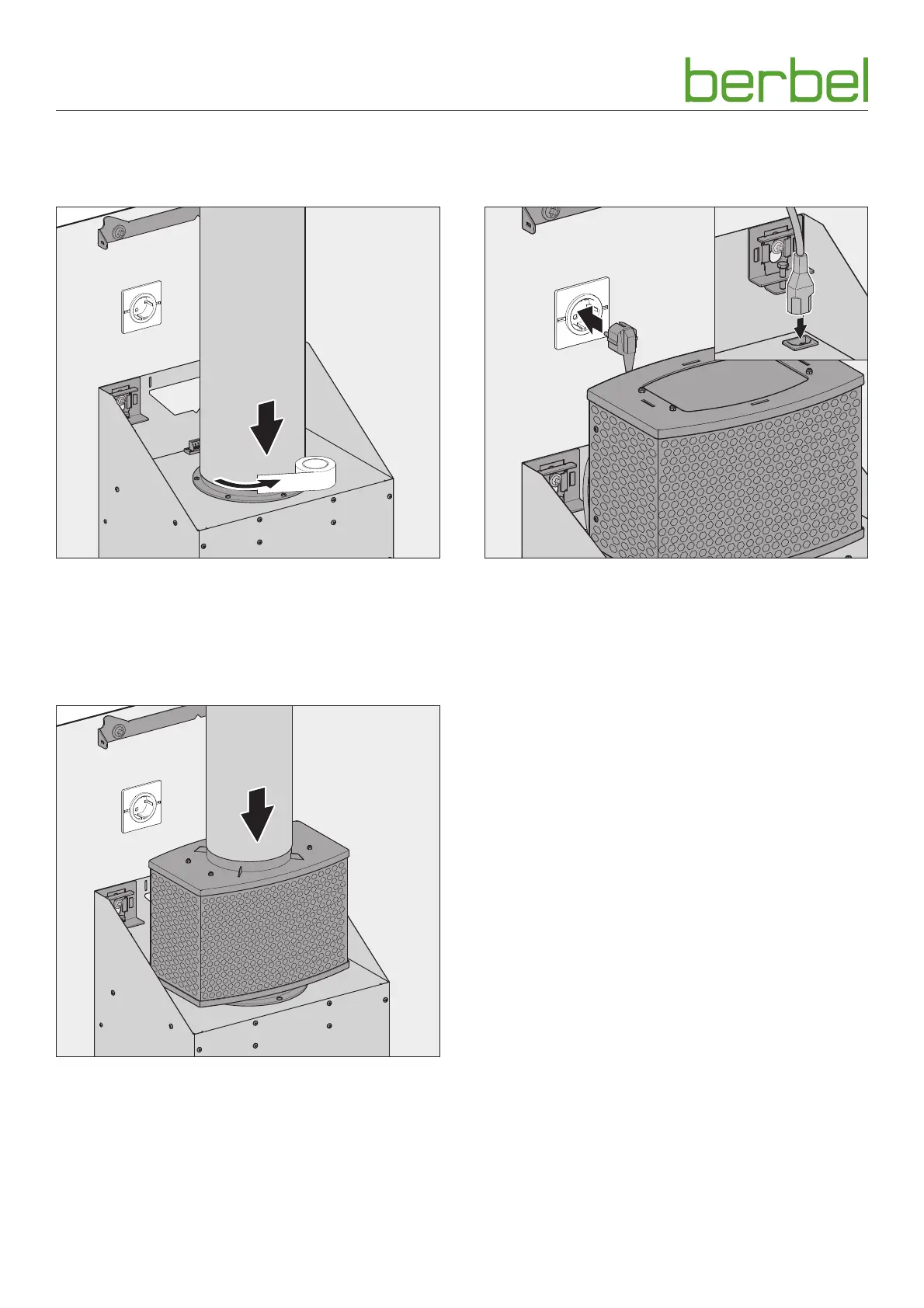

3.5.7 Connect exhaust air ducting (with exhausted
air and hybrid operation)
Extracted air mode
2.
1.
2.
Fit the exhaust air ducting onto the guide on the fan
housing from above.
Seal the transition between the exhaust air ducting and
the guide with the help of sealing tape (accessory).
Ensure that the exhaust air duct is correctly fitted.
Hybrid mode
Fit the exhaust air ducting onto the collar of the hybrid
filter from above.
Ensure that the exhaust air duct is correctly fitted.
3.5.8 Establish electrical power supply
Observe the voltage specifications on the rating plate.
Plug the cold device plug into the socket on the fan
housing.
Plug the mains plug into the socket.
Route the cable such that it is not kinked, crushed or
damaged and so that it will not get in the way when
replacing the filter filling.
Make sure that the device can be disconnected on all
poles from the electricity supply after installation.
The device is ready for operation.
