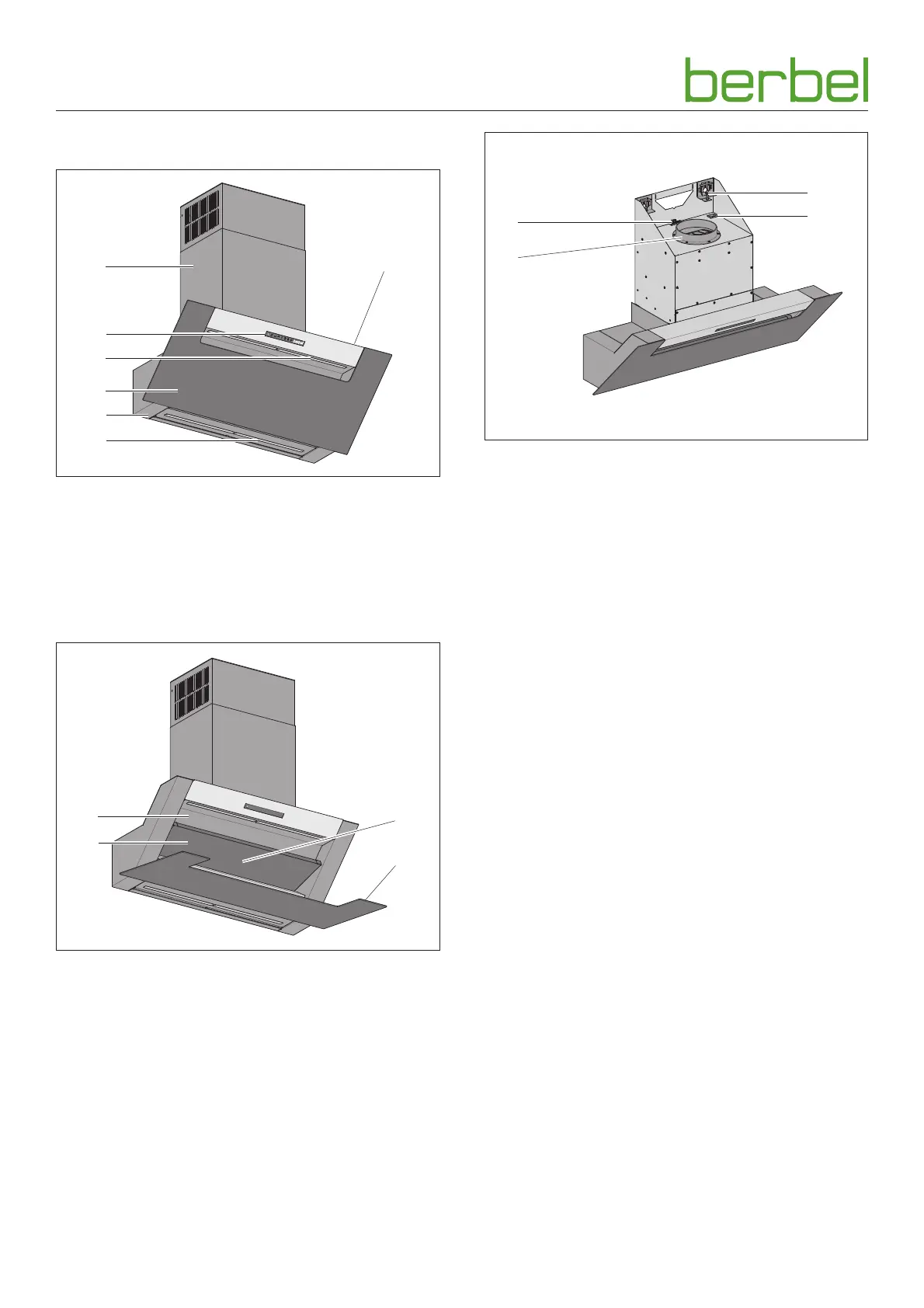

2.3 Product overview
E
A
B
C
D
C
F
A Chimney
B Control panel
D “4.2 Control panel” (page 139).
C Hob lighting
D Front panel made of glass
E Hood body
F Effect lighting - on the rear of the hood body
B
A
C
D
A Upper section
B Lower section (removable)
C Capillar Trap (removable) - behind the lower section
D Type plate - on the inside of the front panel
B
A
D
C
A Connection terminals for wall box, window contact switch
(multifunction contact) and bus connection
B Fan outlet with guide for filter or exhaust air ducting
C Adjusting screws for alignment
D Connector for the mains cable
