6
Product information
6005077_a – 24.02.2020

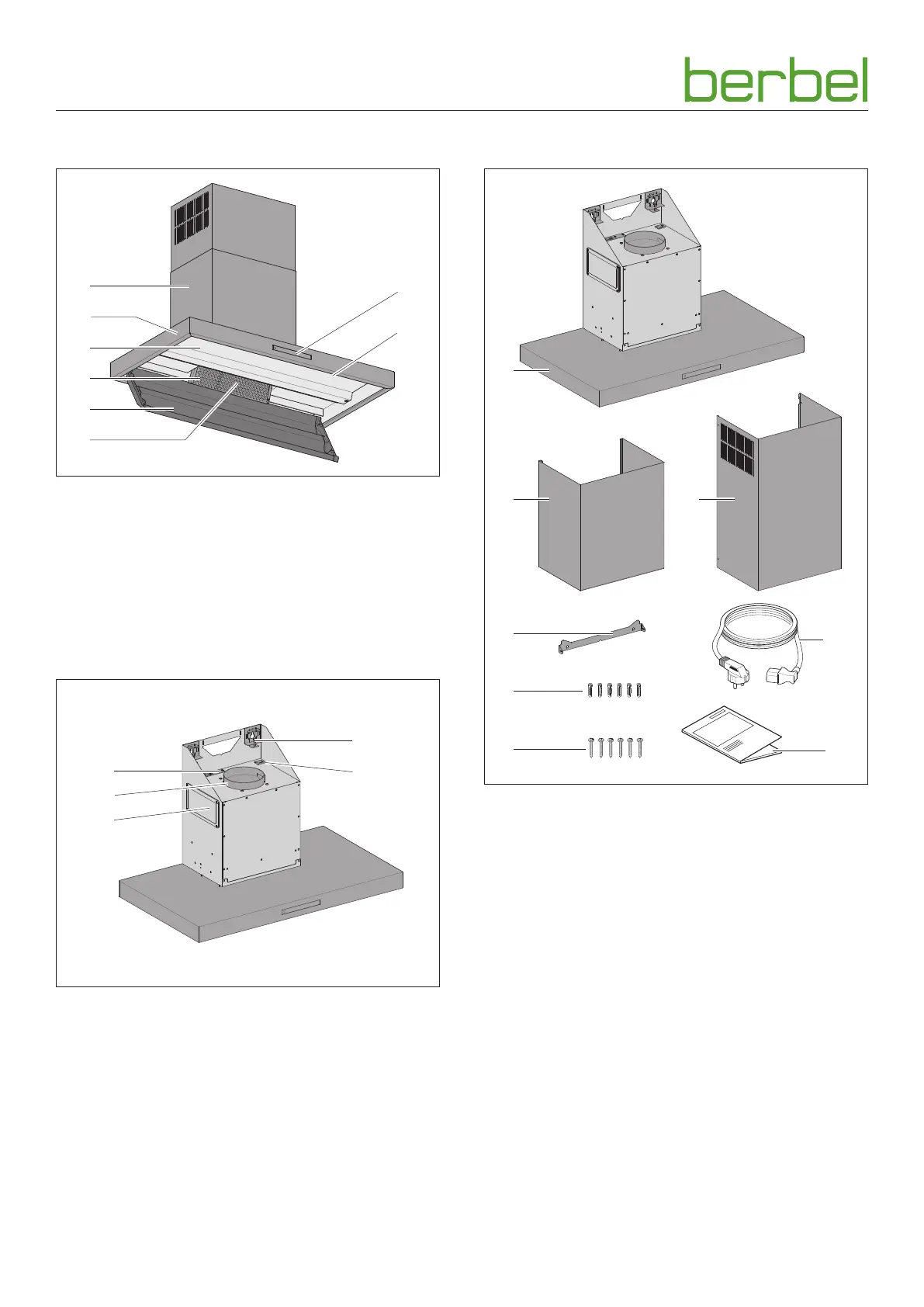

2.3 Product overview
D
C
E
F
A
B
H
G
A Chimney
B Hood body
C Upper section with bulging edge (removable)
D Capillar Trap (removable)
E Lower section (removable)
F Ratings plate (in the air induction shaft of the Capillar
Trap)
G Control panel
H Hob lighting
D
E
A
B
C
A Sockets for accessories
B Fan outlet with guide for filter or exhaust air ducting
C Control box
D Adjusting screws for alignment
E Connector for the mains cable
2.4 Scope of delivery
A
B
B
C
D
E
G
F
A Hood body
B Chimney (two-part, can be pulled apart)
C Chimney fastening
D 6 nylon wall plugs 8 mm
E 6 Torx screws TX30 with integrated washers
F Mains cable with plug and cold device plug
G Operating and installation instructions
The fastening materials are only suitable for solid walls.
Further accessories may be required depending on the
operating mode.
