Installation
6005077_a – 24.02.2020
EN

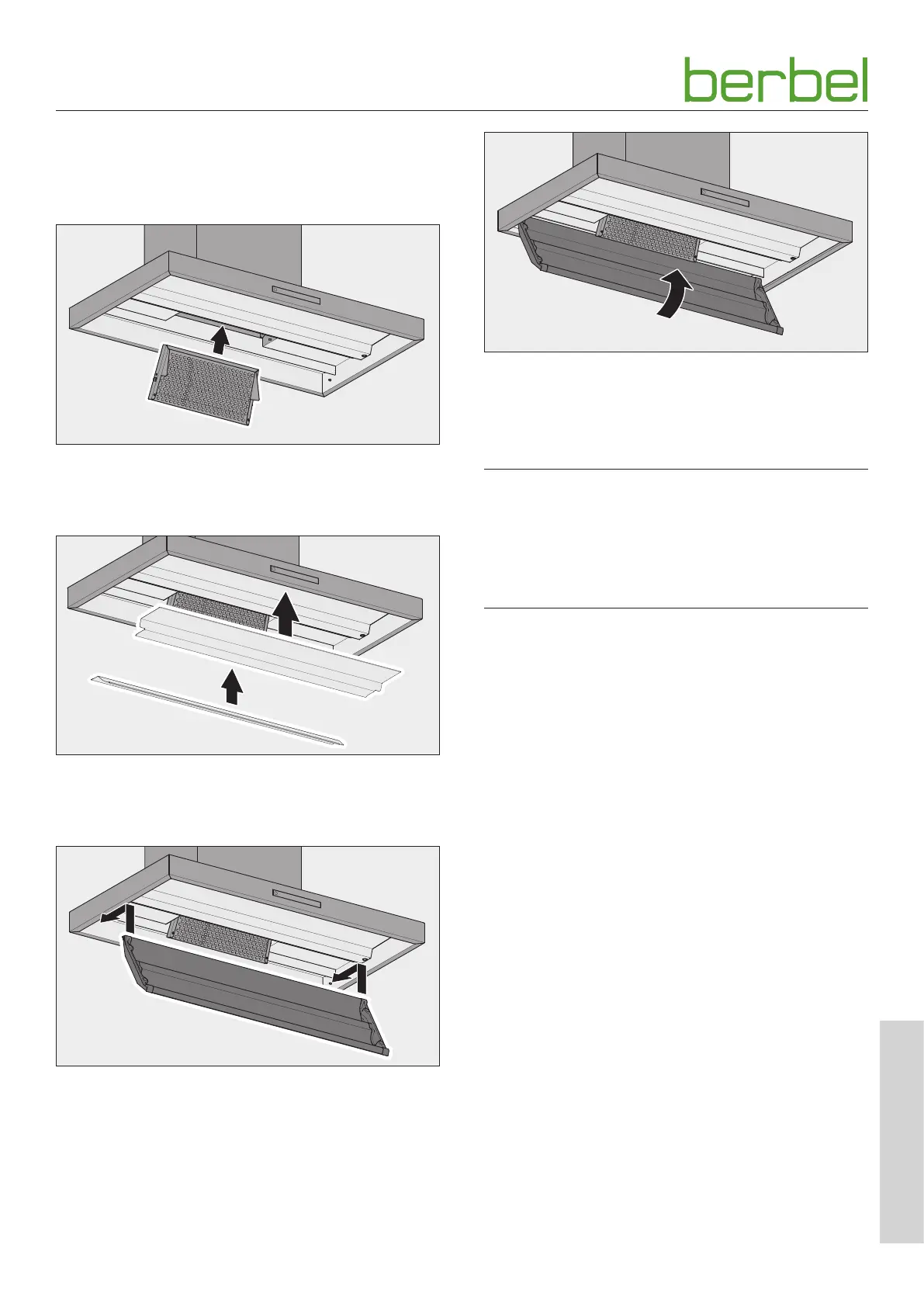

3.5.10 Insert the Capillar Trap, bulging edge and
lower section
After the installation, the parts lying inside should be re-fitted.
☞ Insert the Capillar Trap into the mounting slot with both
hands.
☞ Push the Capillar Trap upwards until it latches into place.
☞ Place the bulging edge onto the upper shell.
☞ Check whether the bulging edge is correctly placed and
held by the magnets.
☞ Guide the lower section into the device from below, until
the guide grooves of the lower section are in front of the
guide pins on both sides.
☞ Press the lower section backwards into the device.
☞ Pull the lower section downwards until it latches into
place.
☞ Check that the lower section can be moved easily.
☞ Pivot the lower section upwards until both magnetic
fasteners can be heard to click into place.
3.5.11 Check and carry out commissioning
D ATTENTION!
Risk of disruptions due to moisture in the device!
If the device is moved from a cold environment into a hot
one, condensation may form inside.
☞ Wait about 2-3 hours before bringing the device into
service.
☞ Remove the protective film from the device.
☞ Check that the mains plug is freely accessible or that
an all-pole isolating device (min. 3 mm contact gap) is
present.
☞ Check that the mains cable and the electrical connection
cable are not kinked, crushed or damaged.
☞ Ensure that air outlets are not closed or covered.
☞ With recirculated air devices: Make sure that the
ventilation slots are free.
☞ Check the correct functioning of the device.
D “4. Operation” (page 18).
