29
Using the monitor wall mounting kit
(purchased separately)
The back of your LCD monitor has a VESA standard mount with 100mm pattern, allowing
the installation of a wall mount bracket. Before starting to install a monitor wall mounting
kit, please read the precautions carefully.
Precautions
• Install your monitor and monitor mounting kit on a wall with flat surface.
• Ensure that the wall material and the standard wall mount bracket (purchased separately)
are stable enough to support the weight of the monitor. Refer to the product
specifications on the website for weight information.
• Turn off the monitor and the power before disconnecting the cables from the LCD
monitor.

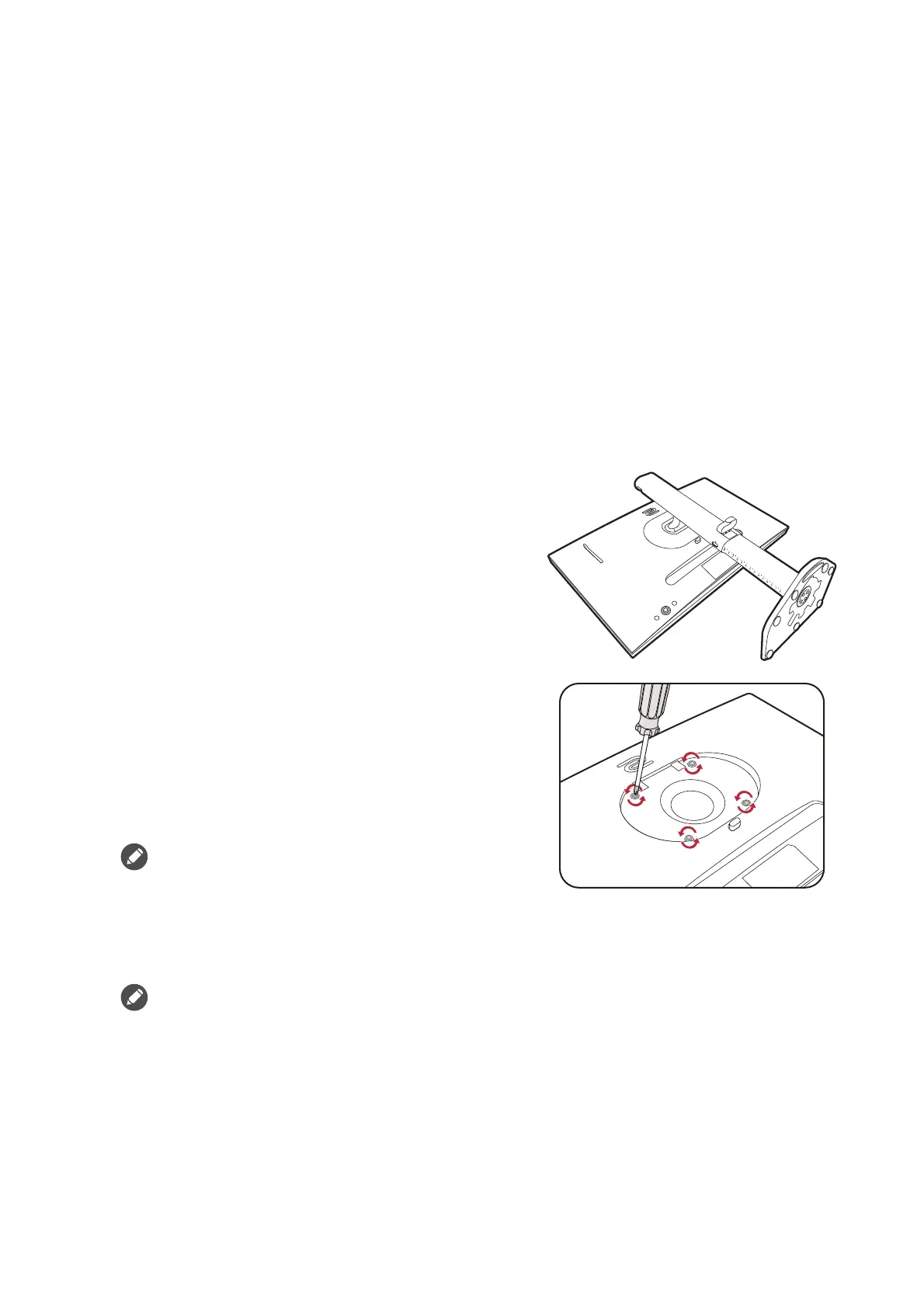

1. Remove the monitor stand.
Lay the screen face down on a clean and
well-padded surface. Detach the monitor stand as
instructed in step 1~2 in How to detach the stand
and the base on page 22.
2. Remove the screws on the
back cover.
Use a cross-pointed screwdriver to release the
screws on the back cover. The use of a
magnetic-head screwdriver is recommended to
avoid of losing the screws.
In case you intend to use your monitor on the stand in
the future, please keep the monitor base, monitor
stand, and screws somewhere safe for future use.
3. Follow the instruction manuals of the wall mount bracket
you purchased to complete the installation.
Use four M4 x 10 mm screws to fix a VESA standard wall mount bracket to the monitor. Make sure that
all screws are tightened and secured properly. Consult a professional technician or BenQ service for
wall mount installation and safety precautions.
