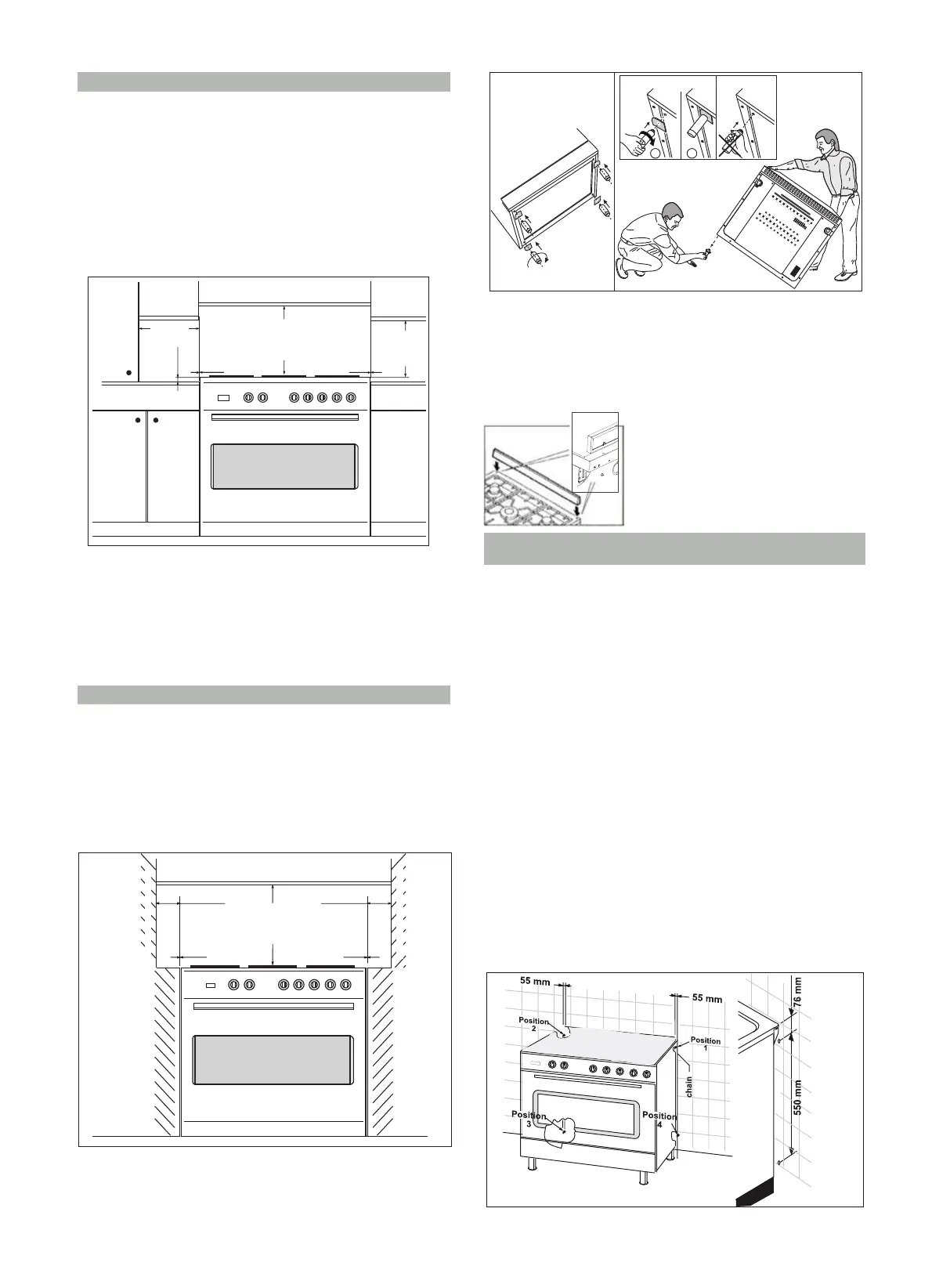

Clearances to combustible materials
"Any adjoining wall surface (side or rear) situated within
200mm of any hob burner must be a suitable non-combusti-
ble material from the edge for a height of 150mm for the
entire length of the cooker.
Any combustible construction above the cooker must be at
least 650mm above the maintop." Ensure that a power and
gas supply are nearby. The Cooker should be located
carefully so that the heat produced by it has plenty of space
to escape. The diagram below shows an ideal configuration.
Clearances to non-combustible materials
"If the cooker is being fitted next to cupboards or adjoing
wall surfaces, which are within 200mm from the edge of the
hob burner and of a suitable non-combustible material as
specified in AS/NZS 5601, then ensure that a distance of at
6cm is left between the edge of the cooker and
non-combustible material. This gap is to allow plenty
space for the heat produced by the cooker to escape on
each side of the cooker.
No part of any adjoining wall surface can be made of
combustible materials. The protection of combustible
materials required by Clause 5.12.1.1 of AS/NZS 5601 is
the fixing of 5 mm thick ceramic tiles to the surface or
attaching fire resistant material to the surface and covering
with sheet metal with a minimum thickness of 0.4 mm.
Note:
The cooker is fitted with 4 legs for an eventual alignment in
height with the furniture ( fig. 1 A ).
min. 650 mm
"0" mm "0" mm
min "60" mmmin "60" mm min "60" mm
non- combustible materials
non- combustible materials
Fig. 1 A
OK
NO
1
2
To fix the cooker to the rear wall (anti-tilting chain/hose
restraining chain)
WARNING - For safety reasons and to prevent tipping of
the appliance, these stabilizing means must be installed.
The cooker is equipped with 2 chains fixed on each side at
the rear of the cooker near the top (see Fig. A). The chains
are fitted with "spring clips" which must be clipped to the
"screw eyes" provided with the cooker.
Install the "screw eyes" as follows:
1. Drill four 6mm holes (position 1 - 2 - 3 - 4) in the wall as
in Fig. A.
2. Insert part "R" into the holes then screw in the "screw
eyes" part "G" see Fig. B.
Note: If the part provided is not suitable for the wall
material please use an appropriate device to ensure
secure holding of the "screw eyes" to the wall.
3. Bring the cooker near the wall and clip the chains on the
"screw eyes" as in Fig. C.
IMPORTANT: If the cooker is moved for any reason (e.g.
maintenance) resulting in the cooker being unclipped from
the wall, the cooker must be re-clipped to the wall at the
completion of the task.
A chain should be fitted by the installer within 50mm of the
hos e connection point to prevent strain on the hose when
the cooker is pulled forward. The chain should restrict the
appliance movement to no more than 80% of the hose
length. After the chain is installed, check that there is no
strain on the hose or gas connections when the cooker is
pulled as far forward as the chain allows.
Fig. A
WARNING:
This appliance is not suitable to be installed on a base
IMPORTANT NOTICE: When positioning the oven take extra
c
are on uneven floors. Where possible safely lift the oven into
position or slide the oven slowly taking care as not to jam and
damage the legs.
Fitting the splash guard
Depending on the model.
Proceed as follows:
- Remove the packaging and the
protective film from the splash guard.
-
Screw the splash guard onto the rear
of the appliance using the 2 screws.
Not permitted use with lids or covers
af
ter
m
arket.
.
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
5
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
least
the
of
min.100 mm
min. 650 mm
min. 400 mm
"0" mm "0" mm
min.10 mm
