EN / 13

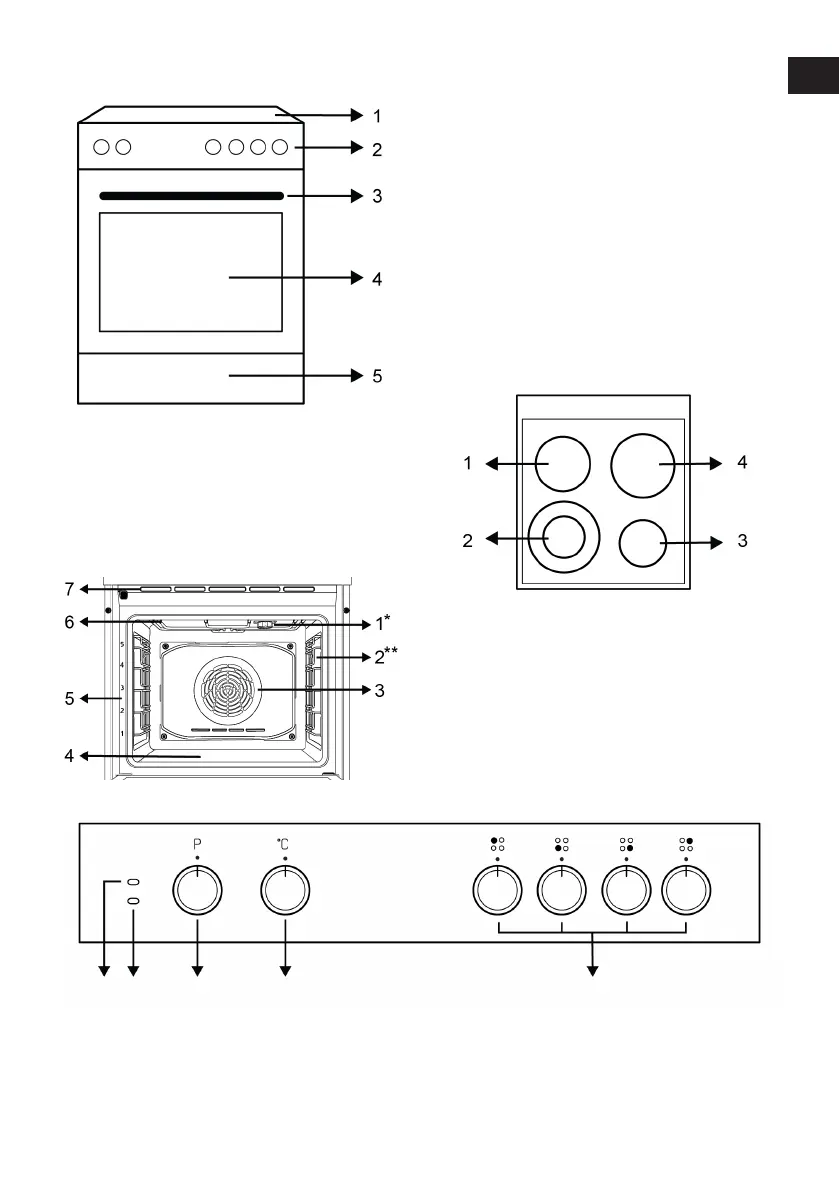

3.1 Product Introduction
1 Hob section
2 Control panel
3 Handle
4 Door
5 Bottom part
3.1.1 Cooking unit
1 Lamp
2 Wire shelves
3 Fan motor (behind the steel plate)
4 Lower heater (under the steel plate)
5 Shelf positions
6 Upper heater
7 Ventilation holes
* Varies depending on the model. Your product
may not be equipped with a lamp, or the type
and location of the lamp may differ from the il-
lustration.
** Varies depending on the model. Your product
may not be equipped with a wire rack. In the im-
age, a product with wire rack is shown as an ex-
ample.
3.1.2 Hob section
1 Rear left - Single cooking zone
2 Front left - Multiple cooking zone
3 Front right - Single cooking zone
4 Rear right - Single cooking zone
3.2 Introduction of the oven control
panel
1 2 3 4 5
1 Active hob warning lamp 2 Thermostat lamp
3 Function selection knob 4 Temperature knob
5 Hob control knobs
