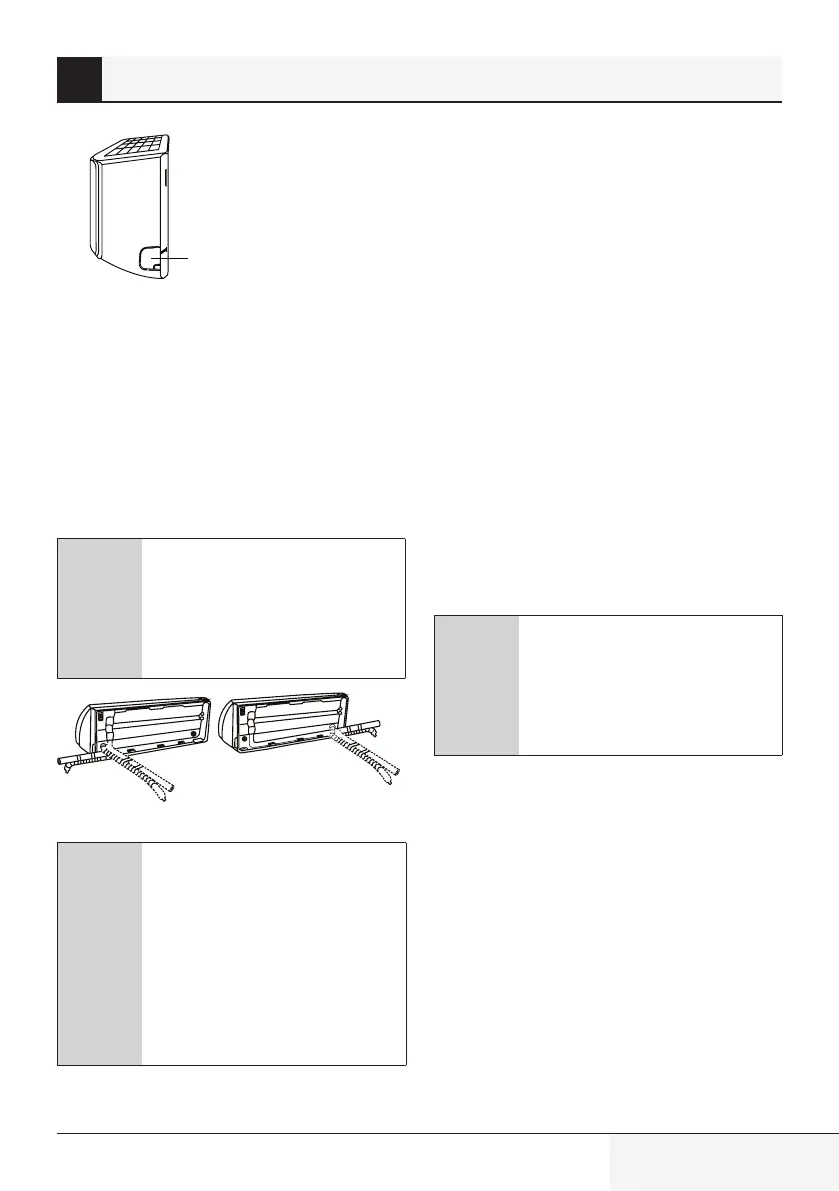

Split type air conditioner / User Manual
35 / EN
Knock-out Panel
3. If existing connective piping is already
embedded in the wall, proceed directly to
the Connect drain hose step. If there is
no embedded piping, connect the indoor
unit’s refrigerant piping to the connective
piping that will join the indoor and outdoor
units. Refer to the Refrigerant Piping
Connection section of this manual for detailed
instructions.
C
Note on piping angle:
Refrigerant piping can exit the
indoor unit from four different
angles:Left-hand side, Right-
hand side, Left rear, Right rear.
A
Warning:
Be extremely careful not to
dent or damage the piping
while bending them away
from the unit. Any dents in
the piping will affect the
unit’s performance.
Step 5: Connect drain hose
By default, the drain hose is attached to the left-
hand side of unit (when you’re facing the back
of the unit). However, it can also be attached to
the right-hand side. To ensure proper drainage,
attach the drain hose on the same side that your
refrigerant piping exits the unit. Attach drain
hose extension (purchased separately) to the
end of drain hose.
•
Wrap the connection point firmly with Teflon
tape to ensure a good seal and to prevent
leaks.
•
For the portion of the drain hose that will
remain indoors, wrap it with foam pipe
insulation to prevent condensation.
•
Remove the air filter and pour a small amount
of water into the drain pan to make sure that
water flows from the unit smoothly.
C
Anote on drain hose
placement:
Make sure to arrange the drain
hose according to the follo.wing
figures.
8 Indoor unit installation
