Split type air conditioner / User Manual
8.1 Installation instructions -
Indoor unit
8.1.1 Prior to installation
Before installing the indoor unit, refer to the
label on the product box to make sure that the
model number of the indoor unit matches the
model number of the outdoor unit.
Step 1: Select installation location
Before installing the indoor unit, you must
choose an appropriate location. The following
are standards that will help you choose an
appropriate location for the unit.
Proper installation locations meet the
following standards:
•
Good air circulation
•
Convenient drainage
•
Noise from the unit will not disturb other
people
•
Firm and solid—the location will not vibrate
•
Strong enough to support the weight of the
unit
•
A location at least one meter from all other
electrical devices (e.g., TV, radio, computer)
Do not install unit in the following locations:
•
Near any source of heat, steam, or
combustible gas
•
Near flammable items such as curtains or
clothing
•
Near any obstacle that might block air
circulation
•
Near the doorway
•
In a location subject to direct sunlight
C
Note about wall hole:
If there is no fixed refrigerant
piping:
While choosing a location, be
aware that you should leave
ample room for a wall hole (see
Drill wall hole for connective
piping step) for the signal cable
and refrigerant piping that
connect the indoor and outdoor
units. The default position for
all piping is the right side of the
indoor unit (while facing the
unit). However, the unit can
accommodate piping to both the
left and right.

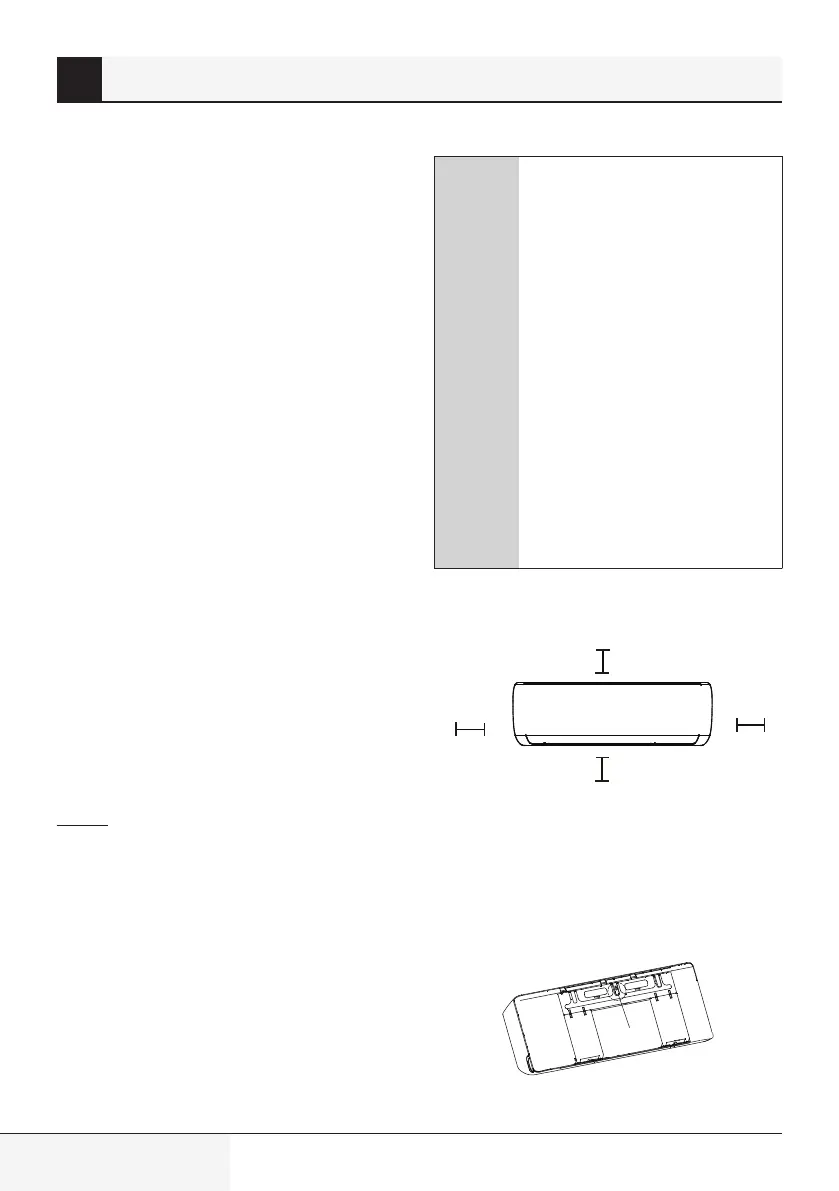

Refer to the following diagram to ensure
proper distance from walls and ceiling:
15cm (5.9in) or more
2.3m (90.55in) or more
12cm (4.75in)
or more
12cm (4.75in)
or more
Step 2: Attach mounting plate to wall
The mounting plate is the device on which you
will mount the indoor unit.
•
Remove the screw that attaches the mounting
plate to the back of the indoor unit.
8 Indoor unit installation
