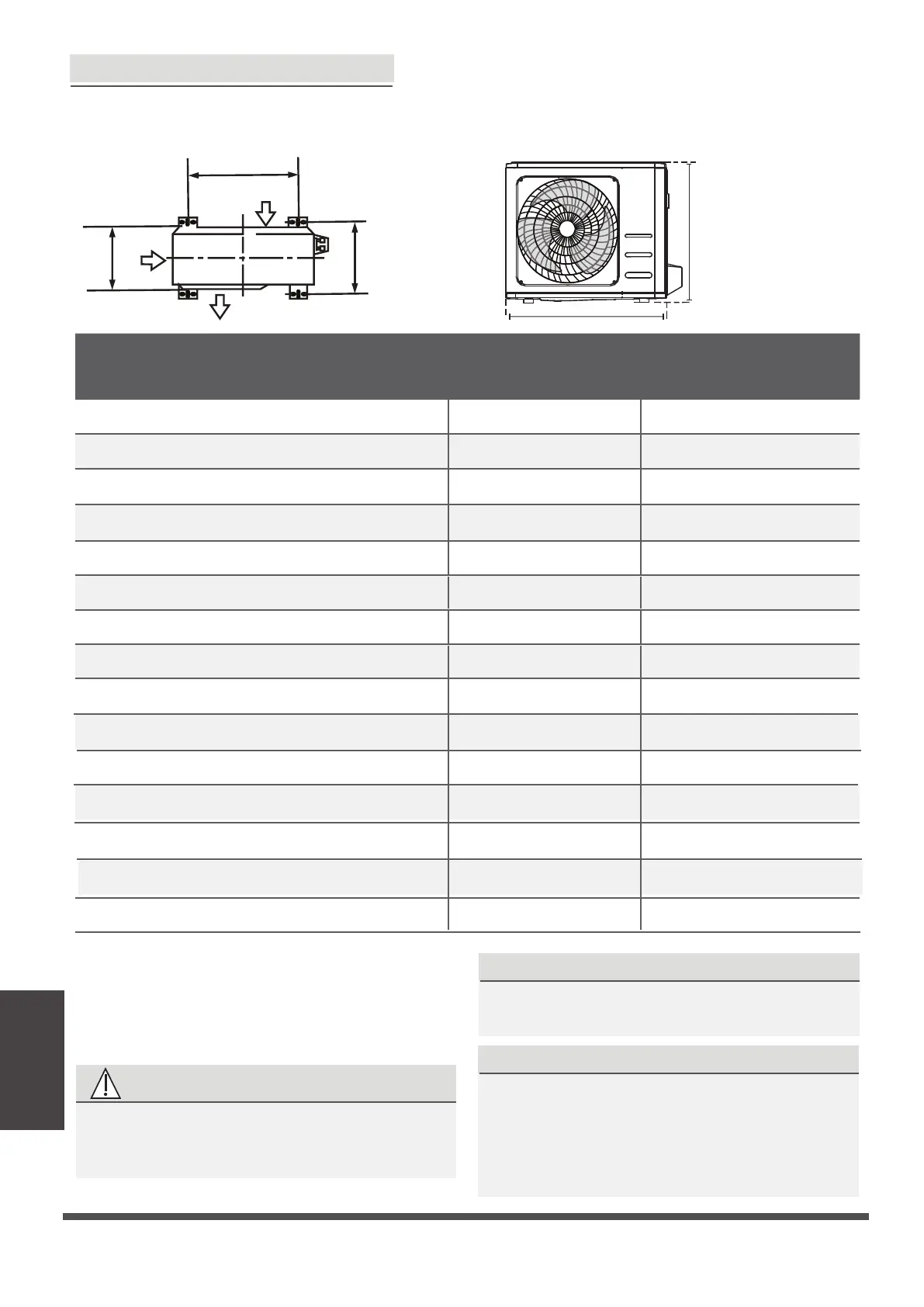

Page 27
Outdoor Unit
Installation
Outdoor Unit Dimensions (mm)
W x H x D
Mounting Dimensions
Distance A (mm) Distance B (mm)
681x434x285 (26.8”x 17.1”x 11.2”) 460 (18.1”) 292 (11.5”)
700x550x270 (27.5”x 21.6”x 10.6”) 450 (17.7”) 260 (10.2”)
728x555x300 (28.7”x 21.8”x 11.8”)
452 (17.8”)
302(11.9”)
765x555x303 (30.1”x 21.8”x 11.9”)
452 (17.8”)
286(11.3”)
890x673x342 (35.0”x 26.5”x 13.5”)
946x810x420 (37.2”x 31.9”x 16.5”)
663 (26.1”)
673 (26.5”)
354 (13.9”)
403 (15.9”)
946x810x410 (37.2”x 31.9”x 16.1”)
673 (26.5”)
403 (15.9”)
720x495x270 (28.3”x 19.5”x 10.6”)
452 (17.8”)
255 (10.0”)
845x702x363 (33.3”x 27.6”x 14.3”)
540 (21.3”)
350 (13.8”)
700x550x275 (27.5”x 21.6”x 10.8”)
450 (17.7”)
260 (10.2”)
770x555x300 (30.3”x 21.8”x 11.8”)
487 (19.2”)
298 (11.7”)
800x554x333 (31.5”x 21.8”x 13.1”)
514 (20.2”)
340 (13.4”)
805x554x330 (31.7”x 21.8”x 12.9”)
511 (20.1”)
317 (12.5”)
UNIT MOUNTING DIMENSIONS
The following is a list of different outdoor unit sizes and the distance between their mounting feet. Prepare the
installation base of the unit according to the dimensions below.
A
W
B
D
Air inlet
Air outlet
Air inlet
W
H
Step 4: Connect signal and power cables
The outside unit’s terminal block is protected by
an electrical wiring cover on the side of the unit.
A comprehensive wiring diagram is printed on
the inside of the wiring cover.
WARNING
1. Prepare the cable for connection:
BEFORE PERFORMING ANY ELECTRICAL
OR WIRING WORK, TURN OFF THE MAIN
POWER TO THE SYSTEM.
USE THE RIGHT CABLE
Please choose the right cable refer to
“ Cable types” in page 22.
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable, signal cable,
fuse, and switch needed is determined by the
maximum current of the unit. The maximum
current is indicated on the nameplate located
on the side panel of the unit.
680x542x248 (26.7”x 21.3”x 9.8”)
230 (9.05”)
452 (17.8”)
668x469x252 (26.3”x 18.5”x 9.9”)
231 (9.1”)
430 (16.9”)
