34 / 340 EN
Split type air conditioner / User Manual
348.4mm (13.7in)
403mm (15.9in)
418mm (16.5in)
527mm (20.7in)
722mm (28.5in)
805mm (31.7in)
835mm (32.9in)
973mm(38.3in)
179mm (7.1in)
231mm (9.1in)
246mm (9.7in)
247mm (9.7in)
101mm(4.0in)
190mm (7.5in)
230mm (9.1in)
190mm(7.5in)
244mm(9.6in)
106mm(4.2in)
165mm (6.5in)
136mm (5.4in)
121mm (4.8in)
121mm (4.8in)

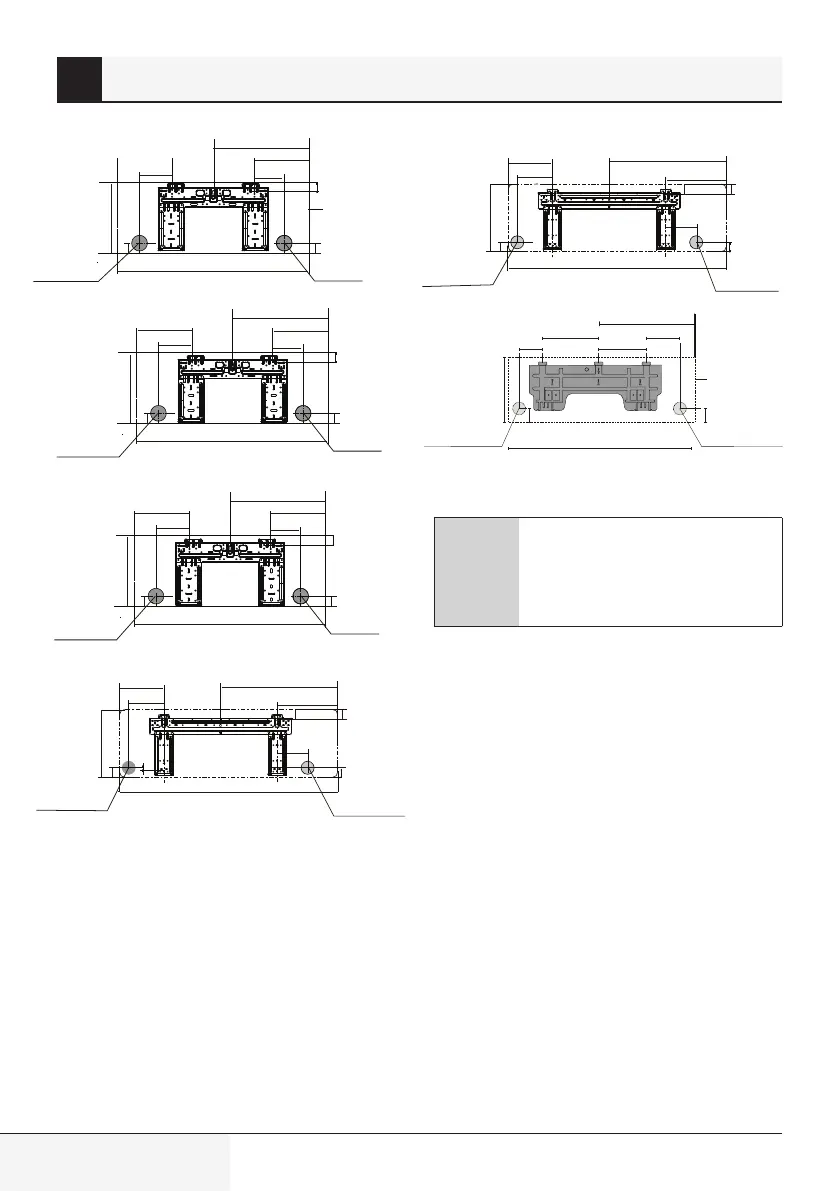

Model A
Model B
Model C
Model D
Indoor unit outline
Right rear wall hole
65mm (2.5in)
Right rear wall hole
65mm (2.5in)
Right rear wall hole
65mm (2.5in)
Right rear wall hole
65mm (2.5in)
Left rear wall hole
65mm (2.5in)
Left rear wall hole
65mm (2.5in)
Left rear wall hole
65mm (2.5in)
Left rear wall hole
65mm (2.5in)
290mm (11.4in)
297mm (11.7in)
297mm(11.7in)
318mm (12.5in)
49mm (1.95in)
47mm (1.8in)
47mm(1.8in)
48mm (1.9in)
29mm (1.1in)
37mm
(1.45in)
36mm
(1.4in)
36mm
(1.4in)
37mm (2.1in)
49mm
(1.95in)
53mm
(2.1in)
53mm
(2.1in)
48mm
(1.9in)
603mm (23.7in)
643.6mm (25.3in)
1082mm (42.6in)
1259mm (49.55in)
257mm (10.1in)
52mm (2.05in)
52mm (2.05in)
199mm (7.8in)
129mm (5.1in)
322mm (12.7in)
332mm (13.05in)
172mm (6.8in)
389mm (15.3in)
Model E
Model F
Indoor unit outline
Right rear wall hole
90mm (3.54in)
Right rear wall hole
90mm (3.54in)
Left rear wall hole
90mm (3.54in)
Left rear wall hole
90mm (3.54in)
338mm (13.3in)
362mm (14.25in)
54mm (2.1in)
55mm
(2.2in)
54mm
(2.1in)
173mm
(6.8in)
C
Note: When the gas side
connective pipe is Ø16mm (5/8in)
or more, the wall hole should be
90mm (3.54in).
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating
sleeve attached to the back of the unit. You must
prepare the piping before passing it through the
hole in the wall.
1. Based on the position of the wall hole relative
to the mounting plate, choose the side from
which the piping will exit the unit.
2. If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole is to
the side of the indoor unit, remove the plastic
knock-out panel from that side of the unit. This
will create a slot through which your piping
can exit the unit. Use needle nose pliers if the
plastic panel is too difficult to remove by hand.
8 Indoor unit installation
