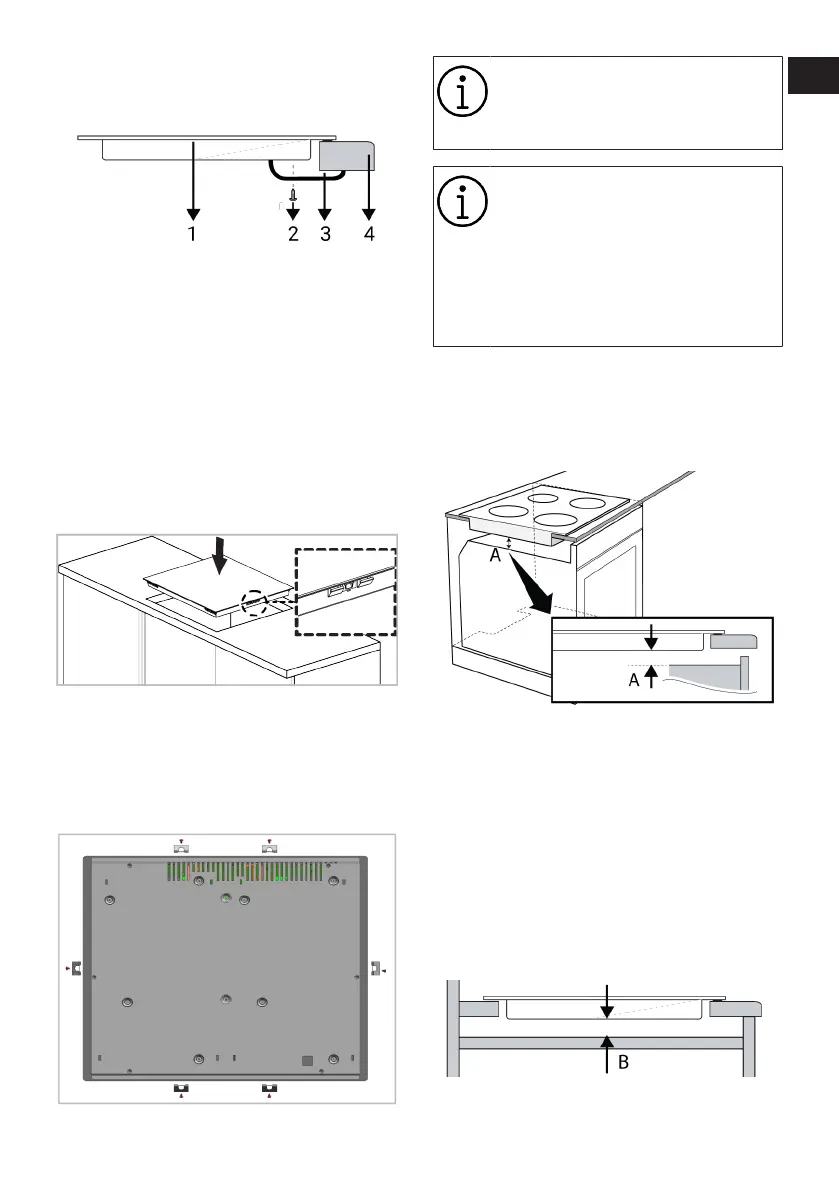

tion with these springs is not sufficient,
you can attach two mounting springs to
the front of the product as follows.
1 Hob
2 Screw
3 Mounting spring
4 Countertop
Easy installation:Some models come with
mounting springs and sealing gasket at-
tached to the product. For these models, ig-
nore the mounting springs and bracket
mounting instructions described in the
manual. Place your product directly in the
space where the product will be placed as
shown in the figure below.
Rear view (connection holes)
Location of the connection holes shown in
the below figure are schematic,may vary
depending on the product model. Fix them
according to connection holes on your
product.
Making connections to different
holes is not a good practice in
terms of safety since it can dam-
age the gas and electrical system.
There are gas and electrical com-
ponents contained within this hob,
therefore when fitting the mounting
springs/clamps only attach the
supplied fixings to the connection
holes shown in this manual. Failure
to observe this advise may lead to
life and property safety.
If there is an built-in oven under the hob;
When installing the hob on an built-in oven,
a distance should be left between the upper
wall of the oven and the lower housing of
the hob, as shown in the figure.
A min. 15 mm
If there is a drawer/cabinet under the hob;
When installing the hob onto a cabinet, a
shelf must be installed in order to separate
the cabinet from the hob as illustrated in
the above figure. This is not required when
installing onto a built-under oven.
For example, if it is possible to touch the
bottom of the product since it is installed
onto a drawer, this section must be covered
with a wooden plate.
B min. 15 mm
