INSTALLATION

• The cooktop must be set into a worktop at least 20 mm deep.

• There must be nothing between the cooktop and the oven (cross rails, brackets, etc.).

• Make sure the power cord is long enough to allow convenient installation.

• The distance between the lower face of the glass ceramic hob and the cupboard or separating

panel must be at least 20 mm.

• For built-in dimensions and installation see the picture in this paragraph.

• A minimum distance must be maintained between the hob and the hood above it. Please refer to

the user manual of the hood for more informations.

• Apply the supplied gasket to the cooktop (unless it has already been tted), after having cleaned its surface.

• Do not install the cooktop near a dishwasher or washing machine, so that the electronic circuits do not come into contact with steam or

moisture, which could damage them.

• If an oven (from our range of ovens) is installed beneath the cooktop, make sure that it is equipped with a cooling system. If the temperature of the

electronic circuits exceeds the maximum permitted temperature, the cooktop will switch o automatically; in this case, wait for a few minutes until the

internal temperature of the electronic circuits reaches a tolerable level, at which point it will be possible to switch the hob on again.

PLACING THE HOB

After the electrical connection (see the chapter “Electrical connection“).Position each xing clips on the dedicated slots on the lateral sides of the hob as

shown in the picture. Then push the hob inside the cut out and check that the glass is at and parallel to the worktop. The xing clips are designed for

every type of worktop material (wood, marble, etc).

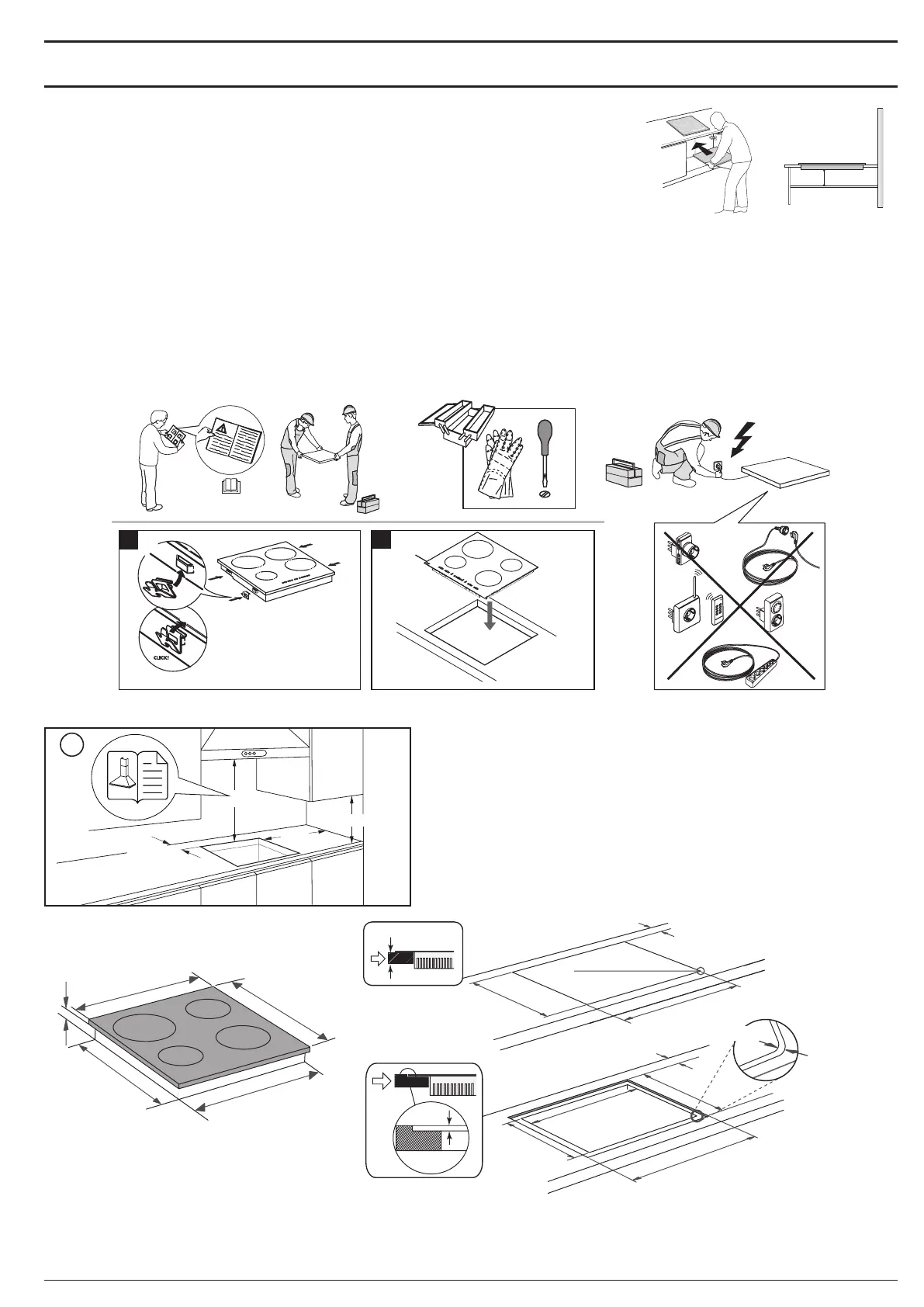

DIMENSIONS AND DISTANCES TO BE MAINTAINED

Min. 40 cm

Min. 5 cm

Min.10 cm

552 mm

42 mm

510 mm

580 mm

Min. 6,5 mm

Max. 8 mm

490 - 492 mm

560 - 562 mm

Min. 50 mm

Min.

20 mm

11,5 mm

583 - 585 mm

490 - 492 mm

513- 515 mm

560 - 562 mm

Min. 6,5 mm

6 mm

482 mm

Min. 50mm

min. 20 mm
