Installation and operation
18 / 26 700473
EN
Changing the Hinge Side 700473

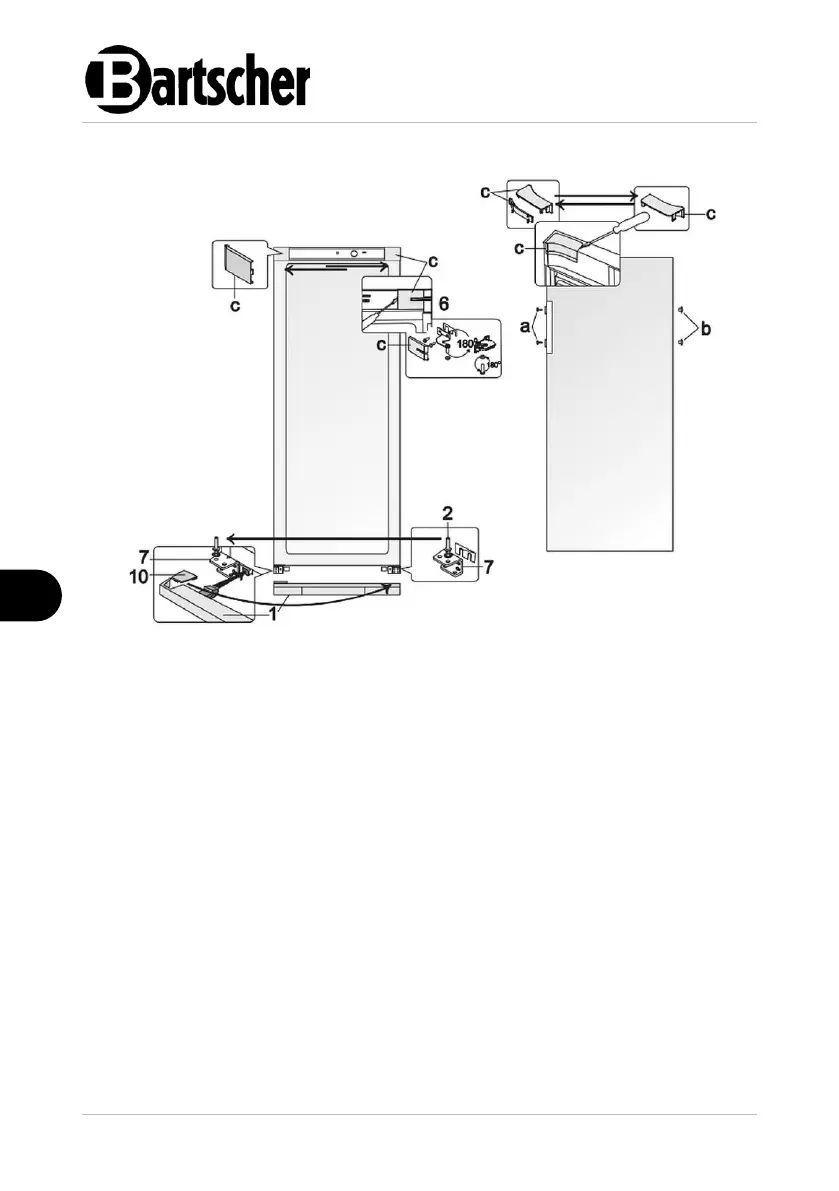

Fig. 8
1. Remove cover strips (c, Fig. 8) from the housing and the internal side of the
door.
2. Remove the top support (6) together with washers and a plastic gasket under
the support.
3. Remove the cooler door.
4. Remove the bottom cover strip (1).
5. Loosen the support stud (2) on the bottom support (7).
6. Bolt it with all washers on the opposite support (7), symmetrically with the
previous location.
7. Set the cooler door on the support stud (2), moving it from the support (7).
8. Rotate the support (6) with the support stud, washers and plastic gasket by
180º.
9. Undo the support stud with washers and bolt it anew at the other side of the
support.
10. Insert the support (6) into cooler door and screw i it in openings at the other side
of the cooler.
