R5916765 /01 MUIP-221310
2.1 Cable connections
Opening and closing the rear cover
1. Remove the two rubber caps which cover the fixation screws.
2. Remove the two fixation screws and remove the rear cover from the MUIP-2213.

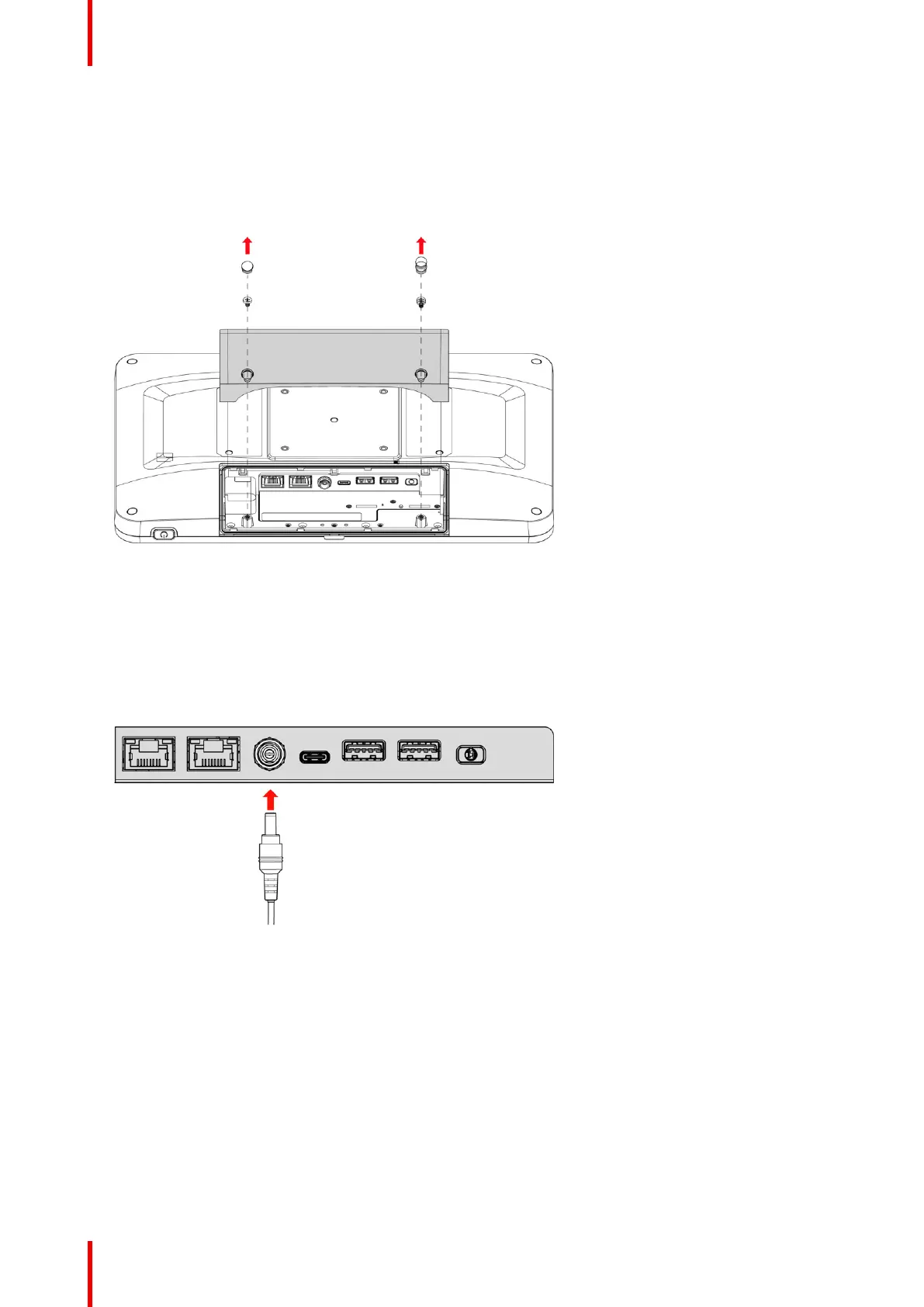

Image 2–1
3. To properly close the rear cover, first route the cables as described in “Cable routing”, page 11. Install the
rear cover and follow the above steps in reverse order.
Power and LAN connection
The MUIP-2213 Computing Touch-Screen Module working as an intelligent User-Interface is usually
connected to the system via Ethernet LAN connection and / or USB interface connection.
1. Connect the power connector to the power jack input.
Image 2–2
2. Connect the LAN connector to the LAN input.
Installation
