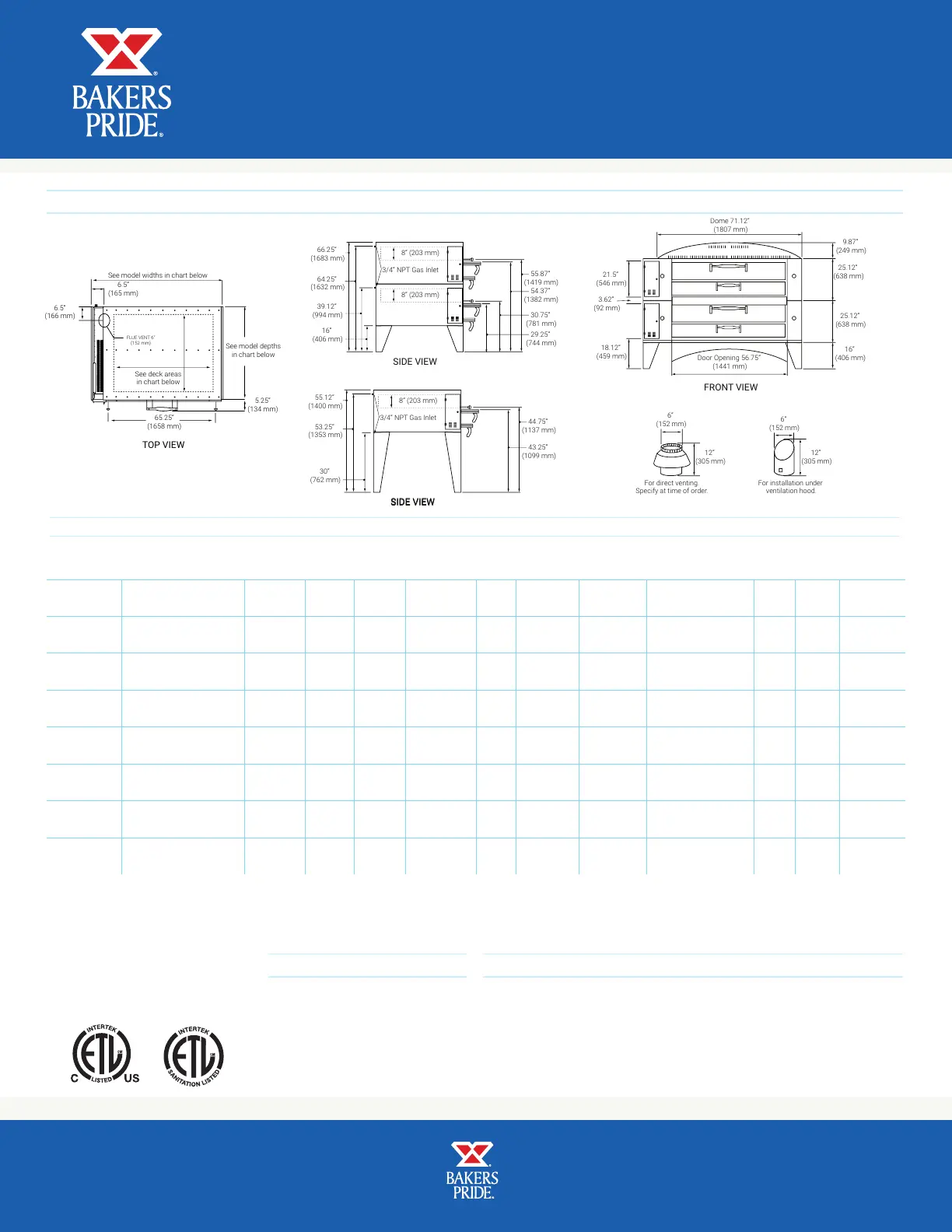

EQUIPMENT DIMENSIONS
Freight Class: 77.5
FOB Smithville 37166
REQUIRED CLEARANCES
Non-Combustible Construction Combustible Construction
Left 0" (0 mm) 1" (25 mm)
Right 0" (0 mm) 3" (76 mm)
Back 2" (51 mm) 3" (76 mm)
GAS CONNECTIONS
3/4"
Each deck requires a separate gas connection
MECHANICAL SPECIFICATIONS
Model # Overall Dim••
(W x H x D)
Total
BTUH
kW Deck
Height
Deck Size Decks Baking
Chambers
Thermostat
Range
Carton Dim
(W x H x D)
Cubic
Feet
Cubic
Meter
Ship Wt.•
Y-600-DSP
78" x 55.12" x 43"
(1981 x 1400 x 1092)
120,000 35.15 8"
(203)
60" x 36"
(1524 x 914)
1 1 300°-650°F
(149-343)
31" x 82" x 53"
(787 x 2083 x 1364)
76 2.4 1338
(607kg)
Y-602-DSP
78" x 66.25" x 43"
(1981 x 1683 x 1092)
240,000 70.3 8"
(203)
60" x 36"
(1524 x 914)
2 2 300°-650°F
(149-343)
* * * 2676
(1214kg)
Y-600BL-DSP
†
78" x 55.12" x 43"
(1981 x 1400 x 1092)
120,000 35.15 7.5"
(191)
60" x 36"
(1524 x 914)
1 1 300°-650°F
(149-343)
31" x 82" x 53"
(787 x 2083 x 1364)
76 2.4 1338
(607kg)
Y-602BL-DSP
†
78" x 66.25" x 43"
(1981 x 1683 x 1092)
240,000 70.3 7.5"
(191)
60" x 36"
(1524 x 914)
2 2 300°-650°F
(149-343)
* * * 2676
(1214kg)
Y-800-DSP
84" x 55.12" x 51"
(2134 x 1400 x 1295)
120,000 35.15 8"
(203)
66" x 44"
(1676 x 1118)
1 1 300°-650°F
(149-343)
31" x 86" x 60"
(787 x 2184 x 1524)
78 2.8 1542
(699kg)
Y-802-DSP
84" x 66.25" x 51"
(2134 x 1683 x 1295)
240,000 70.3 8"
(203)
66" x 44"
(1676 x 1118)
2 2 300°-650°F
(149-343)
* * * 3084
(1399kg)
Y-800BL-DSP
†
84" x 55.12" x 51"
(2134 x 1400 x 1295)
120,000 35.15 7.5"
(191)
66" x 44"
(1676 x 1118)
1 1 300°-650°F
(149-343)
31" x 86" x 60"
(787 x 2184 x 1524)
78 2.8 1542
(699kg)
Y-802BL-DSP
†
84" x 66.25" x 51"
(2134 x 1683 x 1295)
240,000 70.3 7.5"
(191)
66" x 44"
(1676 x 1118)
2 2 300°-650°F
(149-343)
* * * 3084
(1399kg)
* Each oven ships in separate carton as do the legs. Refer to the single unit for carton specs. Shipping weight shown includes all decks and legs.
**Height includes 30" (762 mm) legs on single units and 16" (406 mm) on stacked units. Height excludes 9.87" dome accent.
†
BL in model # represents a brick-lined model
SERIES: Y-DSP
SUPERDECK SERIES 8" DECK HEIGHT DISPLAY GAS PIZZA OVENS
FLUE VENT 6”
(152 mm)
65.25”
(1658 mm)
5.25”
(134 mm)
See model widths in chart below
See model depths
in chart below
See deck areas
in chart below
6.5”
(166 mm)
6.5”
(165 mm)
TOP VIEW
66.25”
(1683 mm)
55.87”
(1419 mm)
54.37”
(1382 mm)
30.75”
(781 mm)
29.25”
(744 mm)
64.25”
(1632 mm)
39.12”
(994 mm)
16”
(406 mm)
8” (203 mm)
3/4” NPT Gas Inlet
8” (203 mm)
SIDE VIEW
25.12”
(638 mm)
21.5”
(546 mm)
3.62”
(92 mm)
18.12”
(459 mm)
25.12”
(638 mm)
9.87”
(249 mm)
Dome 71.12”
(1807 mm)
Door Opening 56.75”
(1441 mm)
16”
(406 mm)
FRONT VIEW
SIDE VIEW
55.12”
(1400 mm)
44.75”
(1137 mm)
43.25”
(1099 mm)
53.25”
(1353 mm)
30”
(762 mm)
8” (203 mm)
3/4” NPT Gas Inlet
SIDE VIEW
12”
(305 mm)
12”
(305 mm)
For installation under
ventilation hood.
For direct venting.
Specify at time of order.
6”
(152 mm)
6”
(152 mm)
Bakers Pride reserves the right to modify
specications or discontinue models without
incurring obligation. Dimensions nominal.
www.bakerspride.com | p: 800-527-2100 265 Hobson St. Smithville, TN 37166
2M-Z24872 REV C (07-23)
