ASSEMBLY ASSEMBLY
1211
Copyright © 2023, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados.
Copyright © 2023, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados.

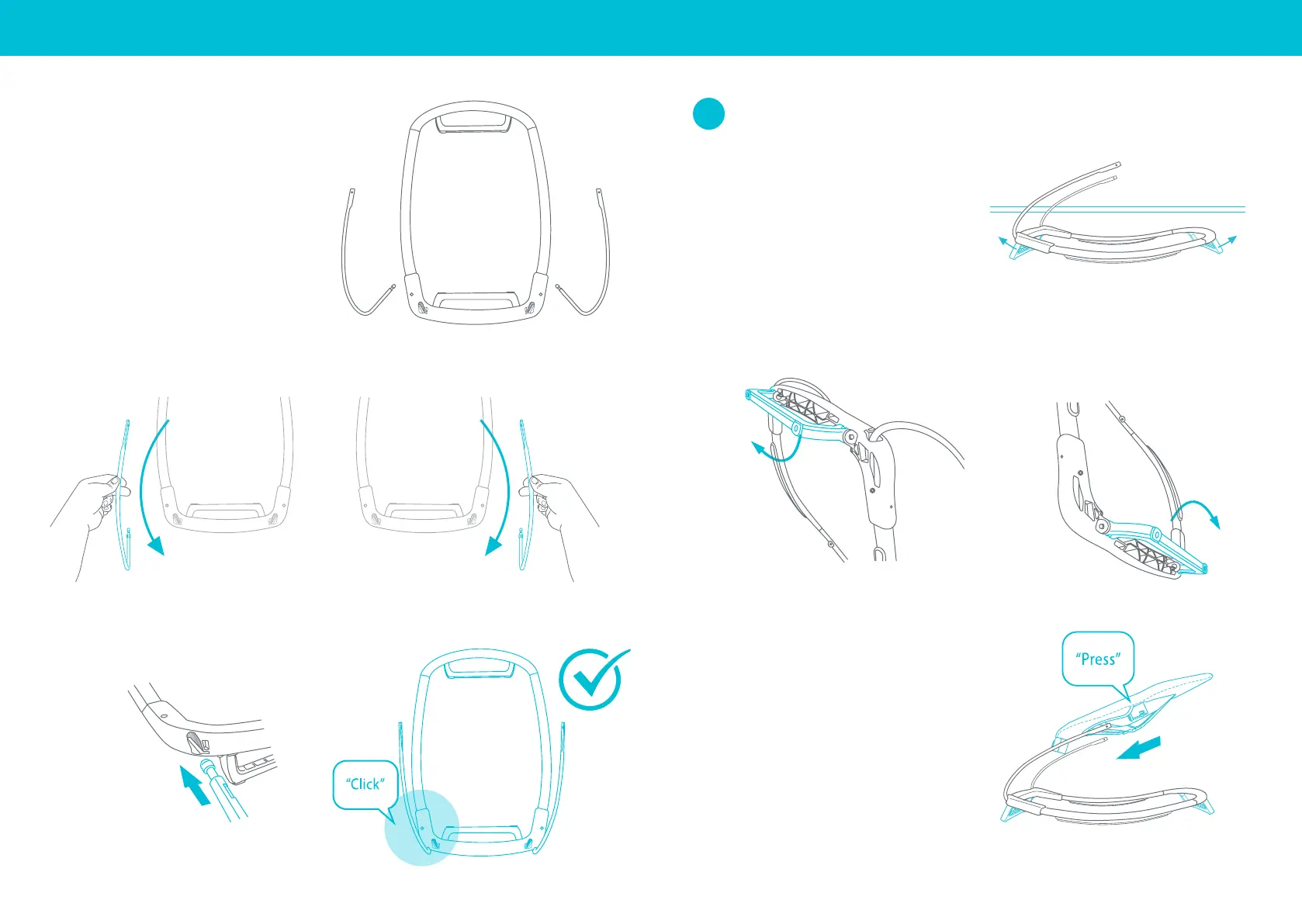

Base frame wire connection
Locate the and base frame,
right and left base frame
wires (Fig. 4c).
NOTE: Base frame wires must
be curved inward toward base
for proper installation (Fig. 4d).
Fig. 4c
Fig. 4d
Fig. 4e Fig. 4f
LR
Insert each base frame wire in firmly (Fig. 4e). Both
must click into position (Fig. 4f).
Flip-out the 2 stationary feet
NOTE: use the 2 feet to assist in
assembing the Bouncer/Rocker
frame sections (Fig. 5a).
Rotate the stationary feet out
on both front and back sides of
the base frame (Fig. 5b).
Align frames
Align the complete seat frame with
the base frame wire. Press in firmly
(Fig. 5c).
Connect the frames
5
Front Back
Fig. 5a
Fig. 5b
Fig. 5b
Fig. 5c
