12V-2x6 Cable Guide
RTX 40/50 Series is bigger than the rest of the models therefore
make sure that the width of the case is wide enough for the PSU
and RTX40/50 Series GPU.
Once complete install the system, please DO NOT PUSH THE
SIDE PANEL otherwise the cable will be squeezed and there
will be the risk of OVERHEATING & BURNING.
The 12V-2x6 connector and the terminals used in it are much smaller than the previous generation.
Through our extensive testing, it appears that bending the wires too close to the connector could result
in some of the terminals coming loose or misaligning within the connector itself.
This may lead to an uneven load across the other wires, increasing the risk of overheating damage.
The risk of this is substantially higher if the bend is done horizontally in relation to the connector orientation
(left to right).

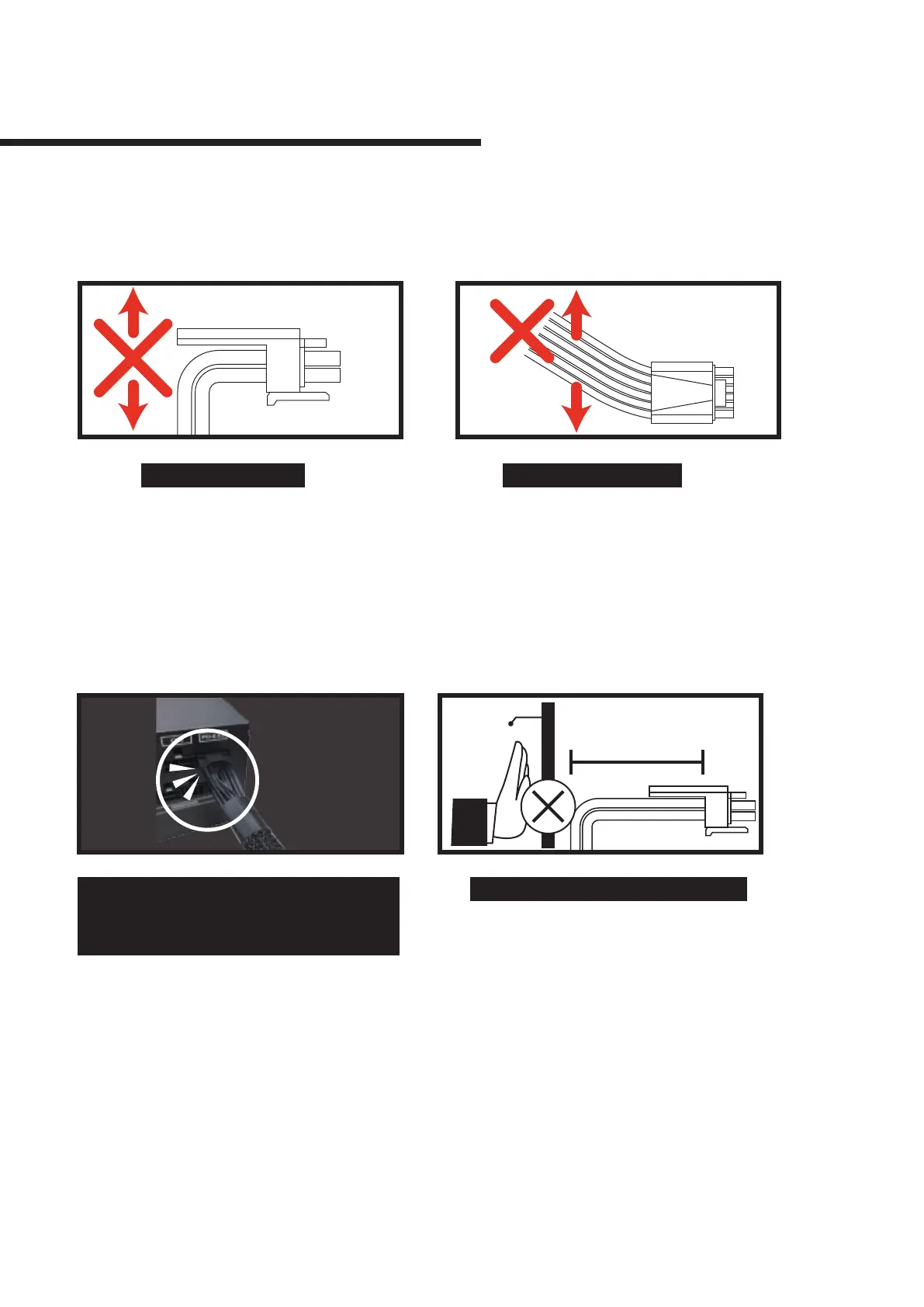

Do not bend vertically Do not bend horizontally
PC Case
Side Panel
Don't Push
Leave enough 12V-2x6 cable length
(around 35mm), then do cable management.
Bend starting at 35mm from connector
The connectors should click to lock in.
Don’t Push
35mm
PC Case
Side Panel
12VHPWR Cable Guide
Don’t Push
35mm
PC Case
Side Panel
RTX 40 Series is bigger than the rest of the models therefore
make sure that the width of the case is wide enough for the
PSU and RTX40 Series GPU.
Once complete install the system,please DO NOT PUSH THE
SIDE PANEL otherwise the cable will be squeezed and there
will be the risk of OVERHEATING & BURNING.
The 12V-2x6 connector and the terminals used in it are much smaller than the previous generation.
Through our extensive testing,it appears that bending the wires too close to the connector could result
is some of the terminals coming loose or misaligning within the connector itself.
This may lead to an uneven load across the other wires,increasing the risk of overheating damage.
The risk of this is substantially higher if the bend is done horizontally in relation to the connector orientation
(left to right).
Do not bend vertically Do not bend horizontally
Bend starting at 35mm from connector
Leave enough 12V-2x6 cable length
(around 35mm),then do cable management.
The connectors should click to look in.
12V-2x6 Cable Guide
