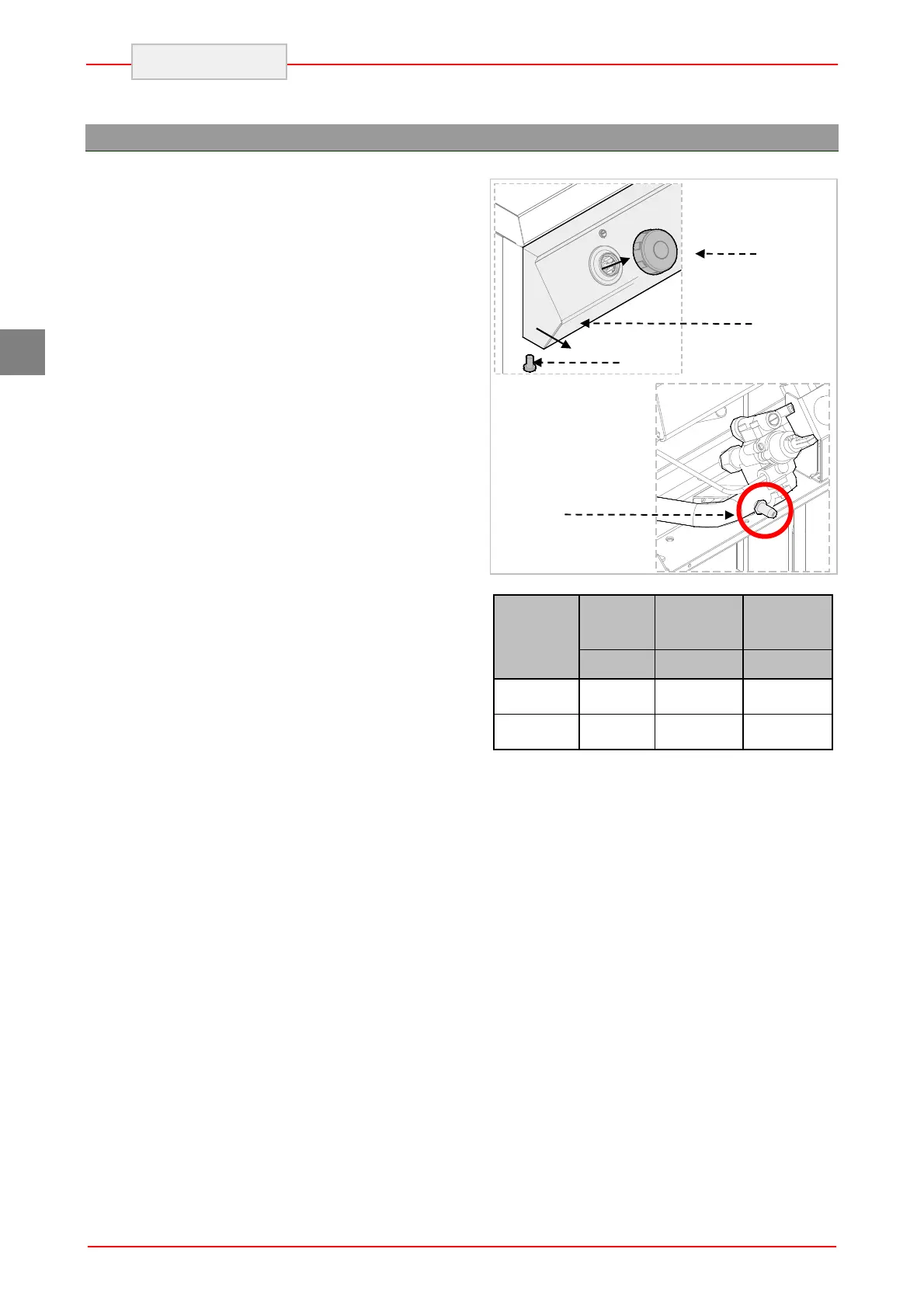

9. ADJUSTMENTS
!
Before carrying out any adjustments,
activate all the safety devices envisaged.
In particular, close the gas supply valve and
prevent access to all the devices which, if
activated, could lead to unexpected dangerous
situations putting personal safety and health at
risk.
The first operation to carry out is to check the
supply pressure, proceeding as follows:
1. Close the gas supply valve.
2. Remove the knob (A).
3. Unscrew the screws (B) and remove the
instrument panel (C).
4.
Unscrew the cap (
D) of the pressure
socket of the supply pipe
6. Connect a pressure gauge to the socket (e.g.
a manometer)
7. Open the gas shut-off valve and measure
the value of the supply pressure. CAUTION: If
the value of the supply pressure measured
is not the pressure shown in “table
pressure gas”, it is not possible to go ahead
with installation and it is necessary to inform
the gas company of the anomaly with the supply..
8. Close the gas shut-off valve, disconnect
the pressure gauge, screw the cap screw
back on and close the front door.
NATURAL
GAS
Manifold
Pressure
(D)
MIN Gas
Supply
Pressure
MAX Gas
Supply
Pressure
i.w.c. i.w.c. i.w.c.
AX-CPG-1 4” 5” 10.5”
AX-CPG-2 4”
Tab. Pressure gas : Permissible limits for the gas
supply pressure.
D
C
A
B
ID 09
5"
10.5"
