Operation instructions | EOC 1-32 | EOC 2-32 | Ethernet over Coax | Peer to Peer
6 2020-11-24 | Technical improvements, changes in design, printing- and other errors expected.

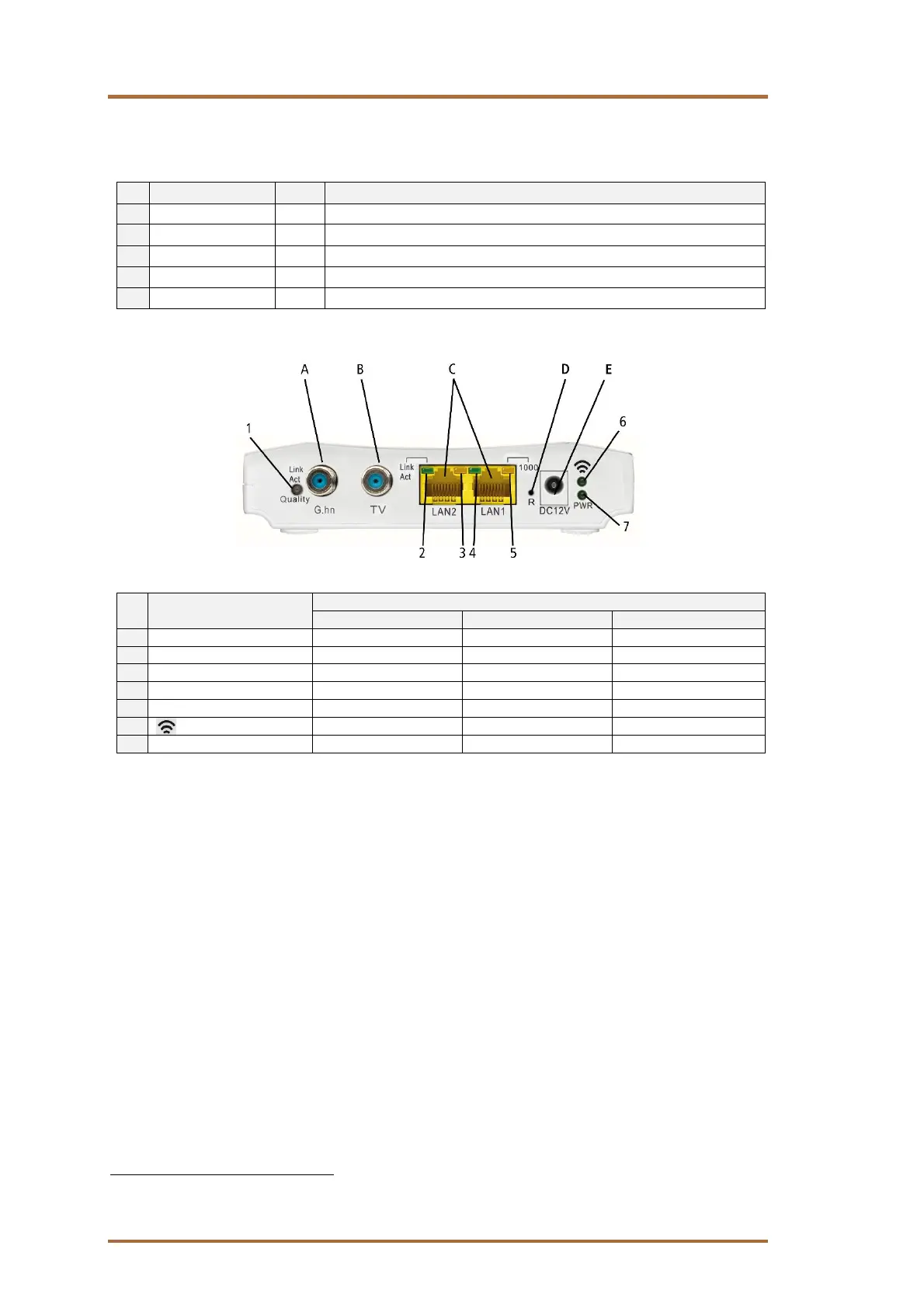

1.3. Connectors and LED indicators on the rear panel
Port Name/Button Type Function
A G.hn F EoC signal (5...1218 MHz)
B
1
TV F TV signal (258...1218 MHz, use depends on the application (see 4, page 11)
C LAN1/LAN2 RJ-45 Connect to PC or STB or other Ethernet devices
D
2
R – Reset Button
E DC12V DC Connect to the power adapter plug
LED
Status
On
Flashing
Off
1
Link/Act |
Quality
Linked
Receive or transmit
Disconnected or Link fail
2
LAN2 Link/Act
Linked
Receive or transmit
Disconnected or Link fail
3
LAN2 1000
1000
Mbps
N/A
100
Mbps
4
LAN1 Link/Act
Linked
Receive or transmit
Disconnected or Link fail
5
LAN1 1000
1000
Mbps
N/A
100
Mbps
6
2
WiFi
on
Receive or transmit
WiFi
off
7
PWR
Power supply on
N/A
Power supply off
LED 1 (Link/Act | Quality) also shows the quality of the EoC connection: Green: High
Orange: Medium
Red: Low
1
The TV connection has a frequency range of 258...1218 MHz.
2
EoC 2-32 only
