MXNET 1G USER MANUAL
1 INTRODUCTION
The MXNet 1G Ecosystem is an AV over IP platform of products that uses standard networking
infrastructure to route video, audio, and control signals throughout large scale systems with an unlimited
number of sources and displays, all switching independently and seamlessly. Designed and developed by
AVPro Edge to be truly “plug and play”, MXNet provides the complete end-to-end solution for stability,
interoperability, and easy deployment of the entire system.

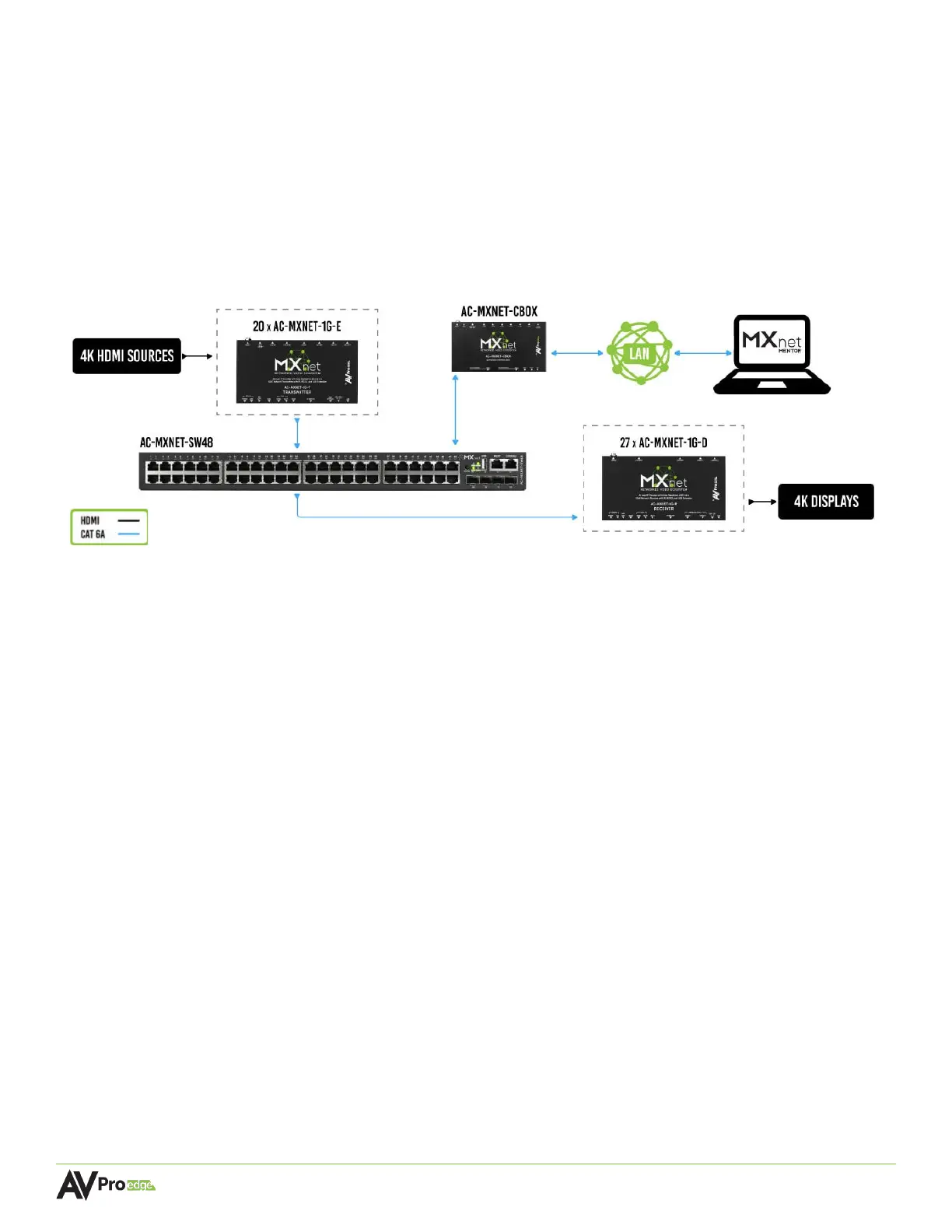

The diagram below shows the basic application with the AC-MXNET-SW48 network switch, AC-MXNET-1G-
E encoders, AC-MXNET-1G-D decoders, and AC-MXNET-CBOX.
1.1 Descriptions
1.1.1 Encoders and Decoders
The AC-MXNET-1G-E, AC-MXNET-1G-EV2, AC-MXNET-1G-E-AVDM, AC-MXNET-1G-EWP, AC-MXNET-
1G-DV2, and AC-MXNET-1G-D are all 1GbE encoder/decoder endpoint devices that extend HDMI
video, audio, USB 2.0, and control signals from a local source to a remote sink display or output
device. The encoders and decoders connect directly to an MXNet network switch, or other
compatible switch, via a Category cable or SFP fiber optic connection. The encoders also support
standalone point-to-point applications (encoder to decoder with a direct Category cable
connection). The encoders and decoders support both DHCP (factory default) and static IP address
settings.
1.1.1.1 MXNet 1G Evolution II
The AC-MXNET-1G-EV2 and AC-MXNET-1G-DV2 incorporate a newly designed AVPro Edge
application-specific integrated circuit (ASIC) that introduces an improved software-based video
encoding/decoding engine into the IC for enhanced video processing. Refinements to the IC
include full support for 4K 60Hz 4:4:4 signals (RGB and YCbCr at 10- and 12-bit color) with
minimal compression, plus extended audio capabilities to support high bitrate multichannel
formats, including Dolby Atmos and DTS:X for IMAX Enhanced soundtracks. All MXNet first-
generation encoder features are retained for use with the AC-MXNET-1G-EV2.
