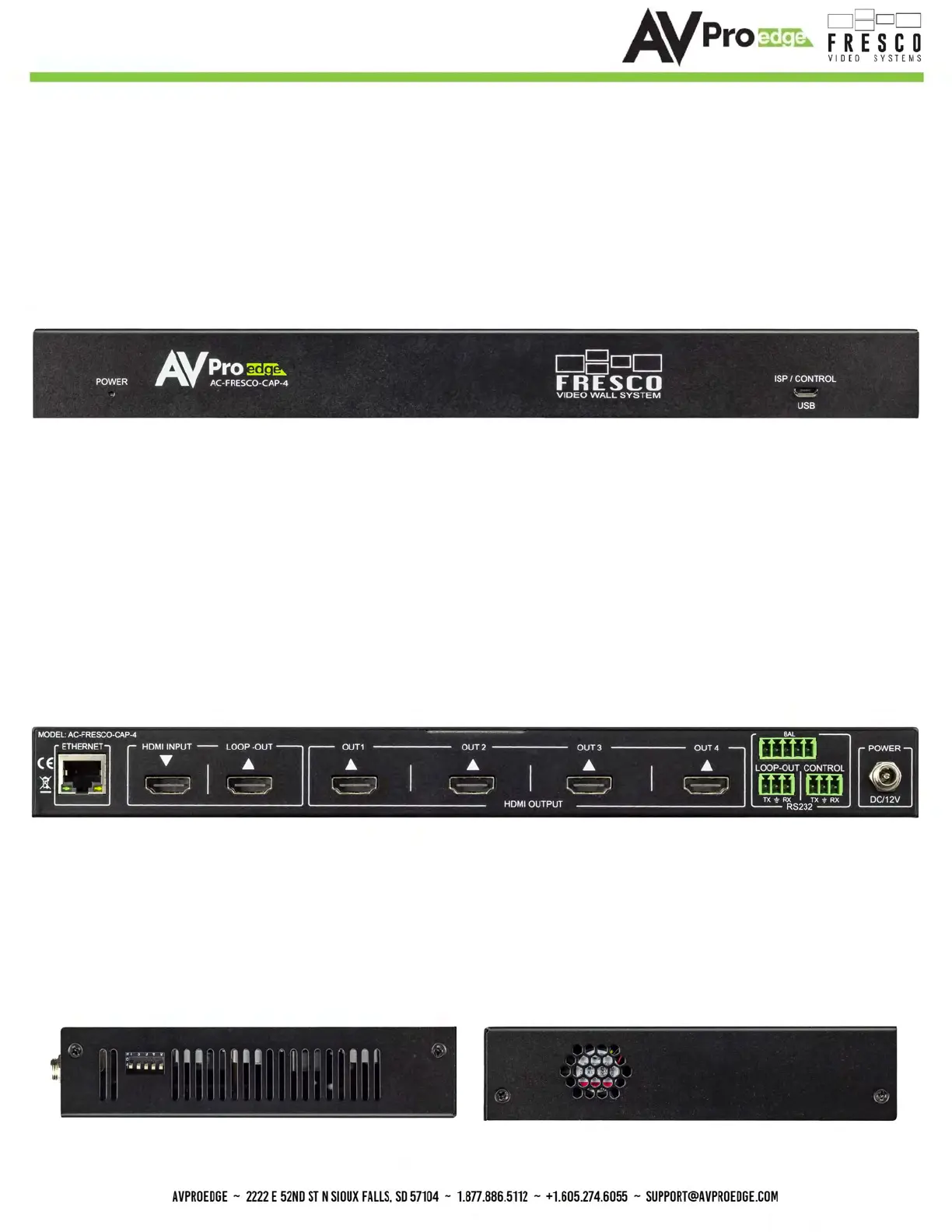

Rear Panel Overview:
• "ETHERNET" (LAN RJ45 PORT) Default IP Address for LAN control is 192.168.001.239
• "HDMI INPUT" used for source input
• "LOOP-OUT" used in cascading additional FRESCO Video Wall processors for building larger Video Wall arrays.
• "HDMI OUTPUT" - OUT1" through "OUT4"
• "BAL" (Balanced Extracted Audio) supports only 2CH PCM.
• "RS232" - "LOOP-OUT" used for cascading RS232 control signals to concurrent FRESCO processors.
• "RS232" - "CONTROL" used for sending control signals via RS232/Serial communications.
• "POWER" - 12V/2A locking power supply.
Device Overview:
• Definition - A Video Wall is a special array consisting of multiple computer monitors, video projectors, or
television sets tiled together contiguously, or overlapped in order to form one large image/picture.
• Video Walls are widely used in commercial and various entertainment venues.
Front Panel:
• "POWER" - Power indicator light. When the FRESCO is plugged into AC power, the light will illuminate in RED.
• "ISP / CONTROL" - Micro USB service and control port. Primarily used for Software and Firmware updates.
Side Panels:
• "DEVICE ID" DIP Switch - Set individual Device ID's when using multiple FRESCO processors, and set EDID options. The
Device ID settings chart and EDID options info are found on the top panel of the FRESCO processor.
• FAN
AC-FRESCO-CAP-4
Page 5
