L-SERIES USER MANUAL | 25
Revision Date: 11 August 2023

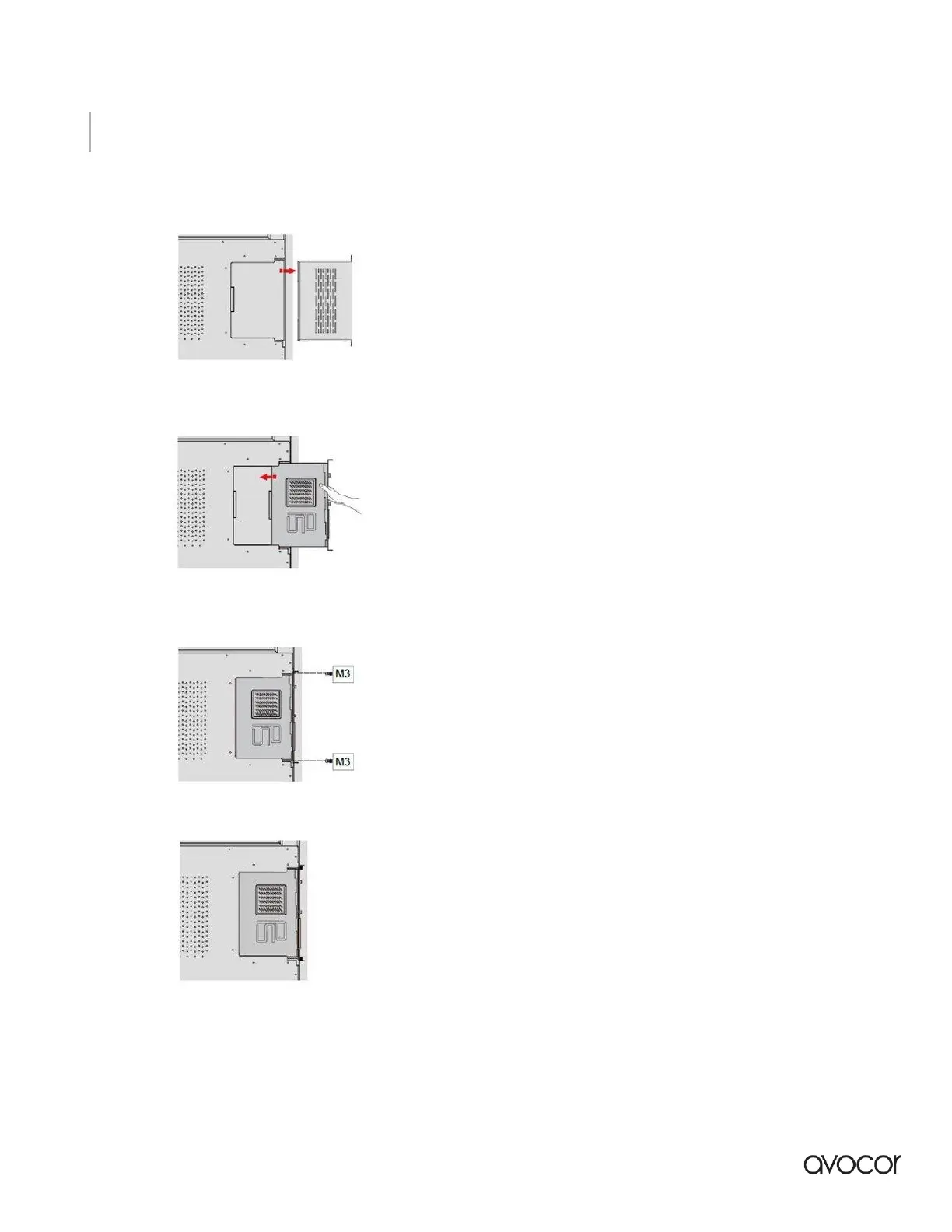

OPS MODULE INSTALLATION
1. Ensure that the display is turned off.
2. Use a Philips screwdriver to unscrew the OPS slot shield on the display input panel. Do not
lose the screws that are removed.
3. Install the OPS module by sliding it into the OPS slot until you hear a click, indicating the
module is securely inserted. When using an Avocor OPS PC, the fan should be visible.
4. Secure the OPS module in position by screwing it onto the display input panel using the
screws that were removed earlier.
5. Ensure the installation is complete before turning on the power.
6. Turn on the display. When using an Avocor OPS PC you should see a green light on the side
of the OPS, this will indicate that the OPS PC is switched on and operational.
