SHARK S4M
四通道音视频切换台
3
48V Phantom Power Switch/ PEAK Indicator
Press this switch to turn on the 48V phantom power indicator, and DC 48V phantom power will be
supplied to the XLR connector for condenser microphones.
Caution:
Before pressing this switch, ensure that the volume knob of the microphone input channel is set to the
minimum position. Otherwise, a loud pop may occur, potentially causing damage to the power amplifier or
speakers.
When using phantom power, please ensure that you are using a condenser microphone and that it is
connected in a balanced configuration for maximum dynamic response. Connecting non-condenser
microphones to the XLR connector with phantom power turned on may cause equipment damage.

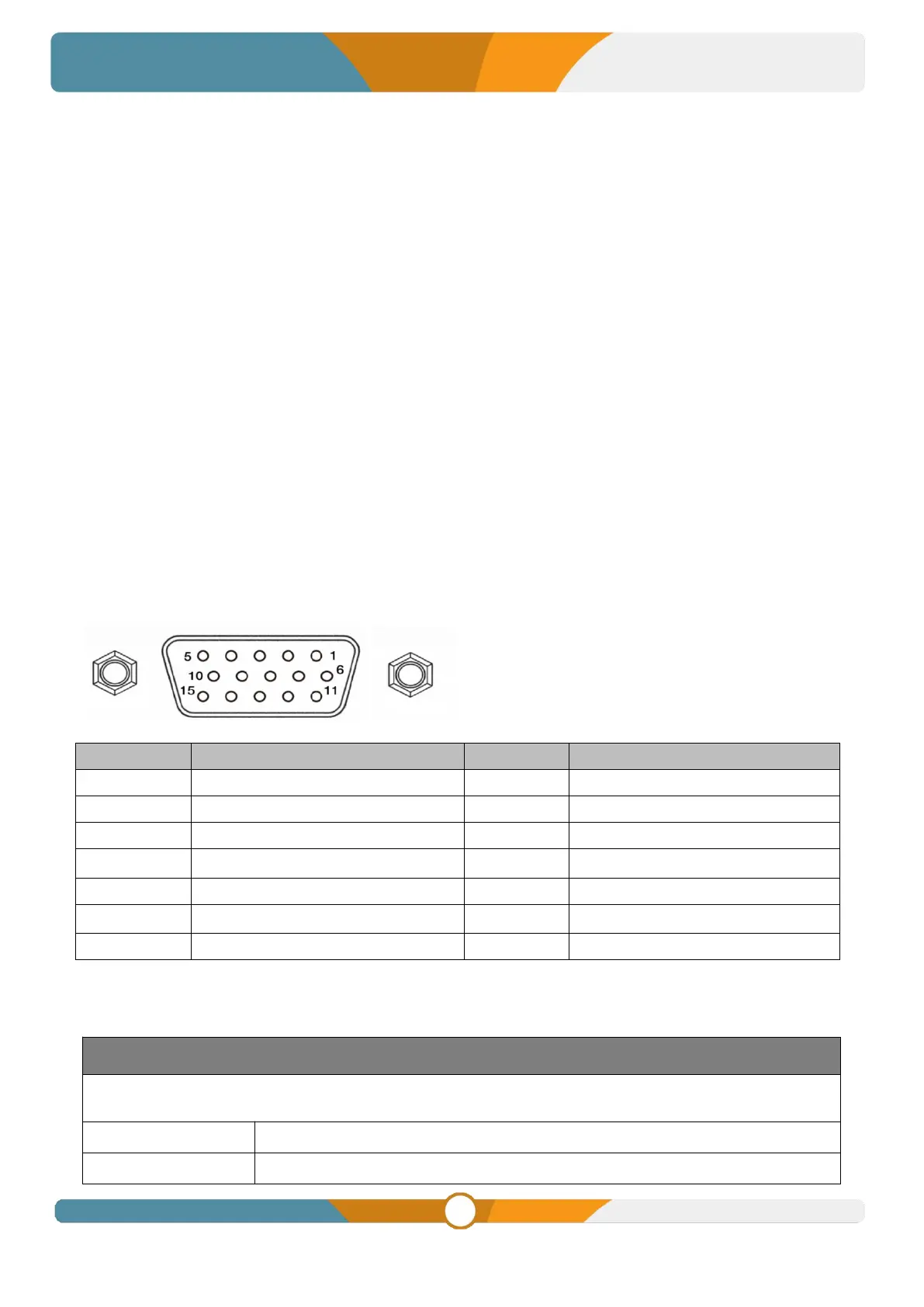

2.2 Tally PIN
PIN
Definition
PIN
Definition
11
PGM-IN1
6
PVW-IN1
12
PGM-IN2
7
PVW-IN2
13
PGM-IN3
8
PVW-IN3
14
PGM-IN4
9
PVW-IN4
15
NC
10
NC
3
NC
4
NC
5
GND
3.Specification
VIDEO
CONNECTION
Video In
HDMI type-A ×2, SDI×2
HDMI type-A PGM ×2
