Operating instructions
EVOLUTION PC 3.3/ 5.3
6
1.2.2.

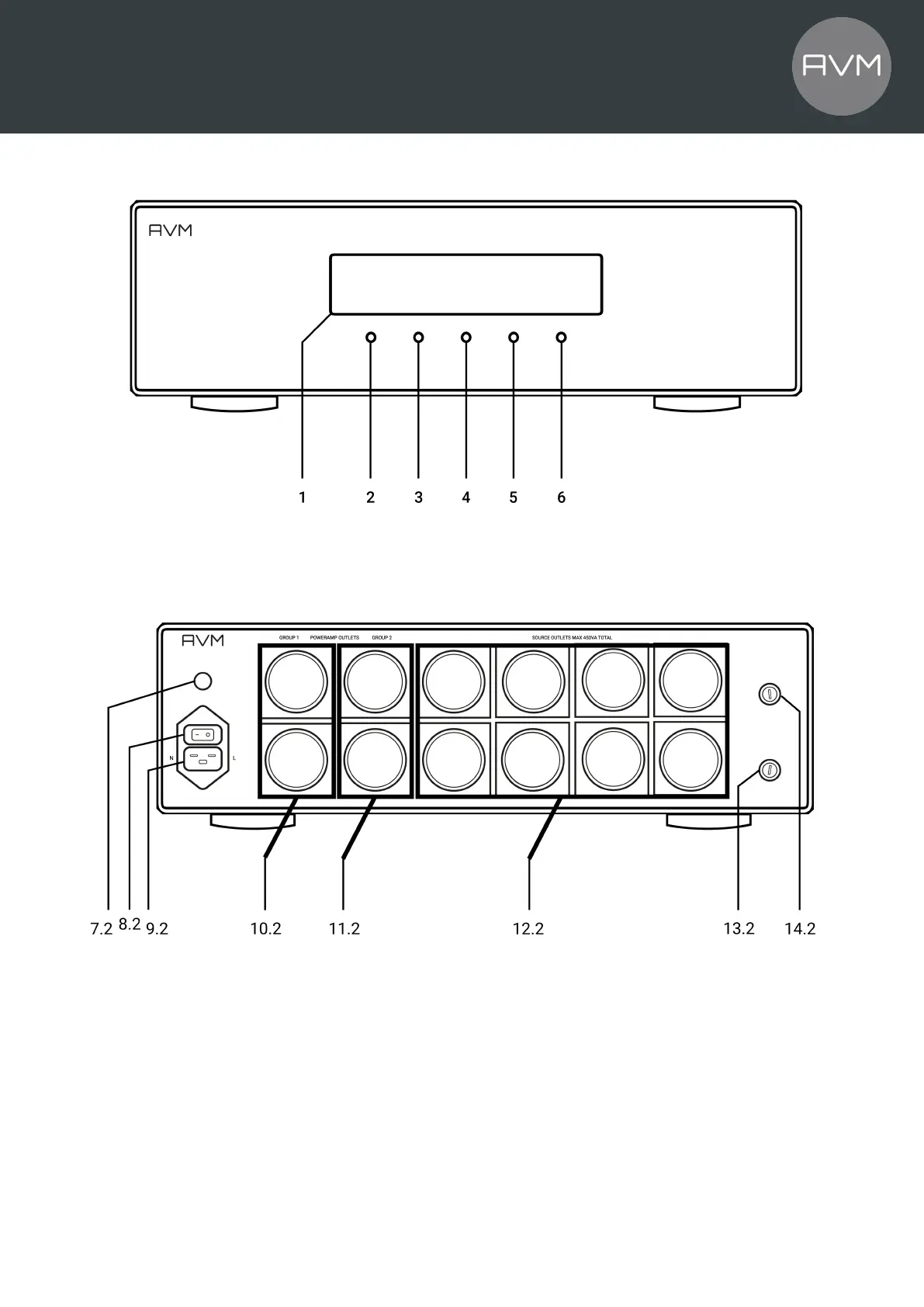

PC 5.3: Front– and Backside
1
Display with Standby-LED
4
Test button for internal speaker
2
Power-Button
5
Test button for HF filtering
3
Test-Button for DC- filtering
6
Display ON/OFF
7.2
15V turntable power supply
11.2
Sockets for power electronics (2)
8.2
Mains switch On/Off
12.2
Sockets for other consumers
9.2
IEC socket
13.2
Fuse holder 1
10.2
Sockets for power electronics (1)
14.2
Fuse holder 2
1.2.3.
Underside of the device (PC 3.3 and PC 5.3): Overcurrent and residual current protection
There is an RCD circuit breaker (also known as an RCD) on the underside of the appliance, which
interrupts the mains N and L in the event of overcurrent (>16A) and residual currents above 30mA.
The RCD is resettable and can be tested from the underside of the appliance (test button).
The technical data of the RCD can be found in chapter
Fehler! Verweisquelle konnte nicht gefunden
werden.
.
