23
UVC Control
1. Make sure the USB2.0 camera output is connected to the USB2.0 port on the PC/MAC, and it is recognized by
the PC Device Manager. If connected to the USB3.0 port, video resolution may be compromised.
2. The interval of control commands sent from the server (via USB) to the camera should be no less than 250ms.
PU_BRIGHTNESS_CONTROL
81 01 04 4d 00 00 0p 0q FF
PU_CONTRAST_CONTROL
81 01 04 A2 00 00 0p 0q FF
PU_SATURATION_CONTROL
81 01 04 A1 00 00 0p 0q FF
PU_SHARPNESS_CONTROL
8x 01 04 42 00 00 0p 0q FF
PU_GAMMA_CONTROL
8x 01 04 5B 0p FF
PU_WHITE_BALANCE_TEMPERATURE_CONTROL
8x 01 04 35 0X FF
PU_BACKLIGHT_COMPENSATION_CONTROL
81 01 04 33 02/03 FF
PU_POWER_LINE_FREQUENCY_CONTROL
8x 01 04 AA 00/01/02 FF
CT_ZOOM_ABSOLUTE_CONTROL
8x 01 04 47 0p 0q 0r 0s FF
CT_PANTILT_ABSOLUTE_CONTROL
8x 01 06 02 VV WW 0Y 0Y 0Y 0Y
0Z 0Z 0Z 0Z F
CT_PANTILT_RELATIVE_CONTROL
8x 01 06 01 pp qq rr ss FF
CT_ZOOM_RELATIVE_CONTROL
8x 01 04 07 pp FF

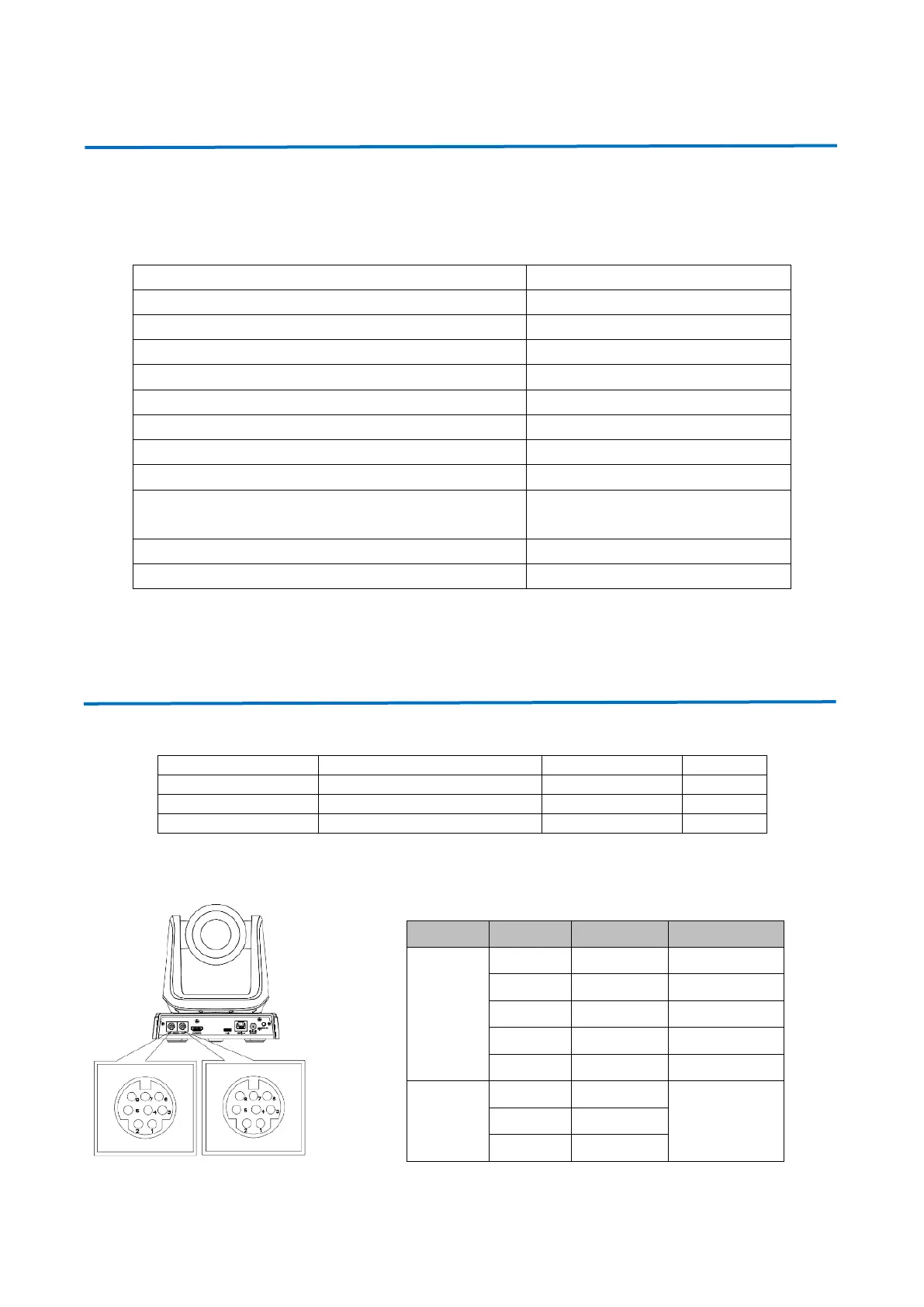

Serial Control
AV-2025 could be controlled through RS232 and RS485 interface. Serial parameters are as below:
1). RS-232 Interface (female 8-pin Mini DIN) Definition
Parameter
Value
Parameter
Value
Baud rate
2400/4800/9600/115200
Stop Bit
1bit
Start Bit
1 bit
Check Bit
None
Data Bit
8 bit
PIN NO
CAM RS232 IN
CAM RS232 OUT
RS232
1
DTR
DTR
2
DSR
DSR
3
TXD
TXD
4
GND
GND
5
RXD
RXD
RS485
6
A (+)
NO CONNECTION
7
IR OUT
8
B (-)
