Chapter 1: Introduction 1
Chapter 1: Introduction

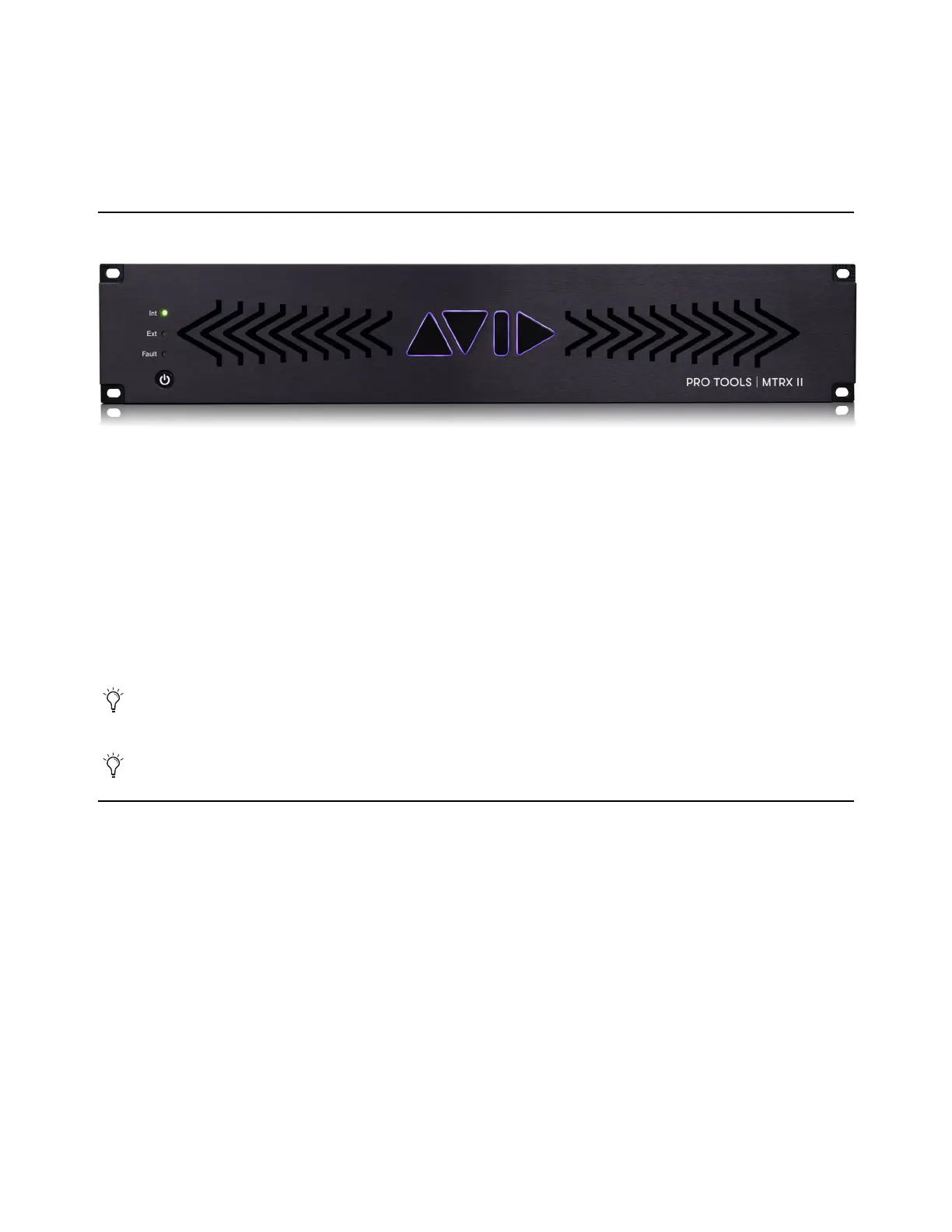

Pro Tools | MTRX II
Welcome to Pro Tools | MTRX
™
II for Pro Tools Ultimate
™
software running with Pro Tools | HDX
™
or Pro Tools | HD
™
Native
hardware. MTRX II is an extremely capable multi-channel audio converter, router, and monitor mixer. MTRX II has eight slots for
optional I/O cards, including DigiLink, MADI, Dante with SRC, 3G SDI, AES/EBU, pristine 8-channel analog line and micro-
phone input, and 8-channel analog line as installable card options.
MTRX II supports an optional Thunderbolt 3 module with 256 bidirectional channels for connection to a computer. Integrated dig-
ital I/O provides 64 channels of DigiLink
™
, 256 channels of Dante™, and 64 channels of MADI. Sample rates are supported from
44.1 to 348 kHz and a resolution of 32-bit floating point over Thunderbolt 3 or 24-bit resolution with DigiLink. An optional
128-channel mini MADI I/O module can be also installed.
The MTRX II routing engine provides a 4,096 x 4,096 matrix where all inputs and outputs can be patched in any combination. In
addition a 512x64 channel summing processor and a built-in 1,024 filter SPQ equalizer is also available for Control Room Moni-
toring and Cue sends.
Pro Tools | MTRX II Overview
Pro Tools | MTRX II features:
• 64-channel audio interface for Pro Tools with two DigiLink Mini ports (Primary and Primary/Expansion).
• Built-in MADI coaxial connections for up to 64 channels of digital I/O at all sample rates.
• Ethernet IP audio interface for 256 I/O channels using Dante with configurable redundant network (with an additional 128 Chan-
nels using the Dante Expansion card).
• Digital router and format converter between all analog and digital inputs and outputs.
• Sample rates of 44.1–384 kHz as well as DSD64/DSD 128 with high precision internal clock and PLL.
• Sample rate can be adapted to the setting of an external device.
• Synchronization by Word Clock, AES11, Video, and all digital audio inputs.
• All settings are controlled over Ethernet (or Thundebolt 3) using DADman software (macOS or Windows).
• Ultra low-noise internal fan with speed adaptation to the temperature.
MTRX II is operated using DADman control software. The control channel is over Ethernet or Thunderbolt connection to the
computer.
With the optional Thunderbolt 3 module installed, MTRX II can be used with any tier of Pro Tools.
