www.avenview.com
Page
7

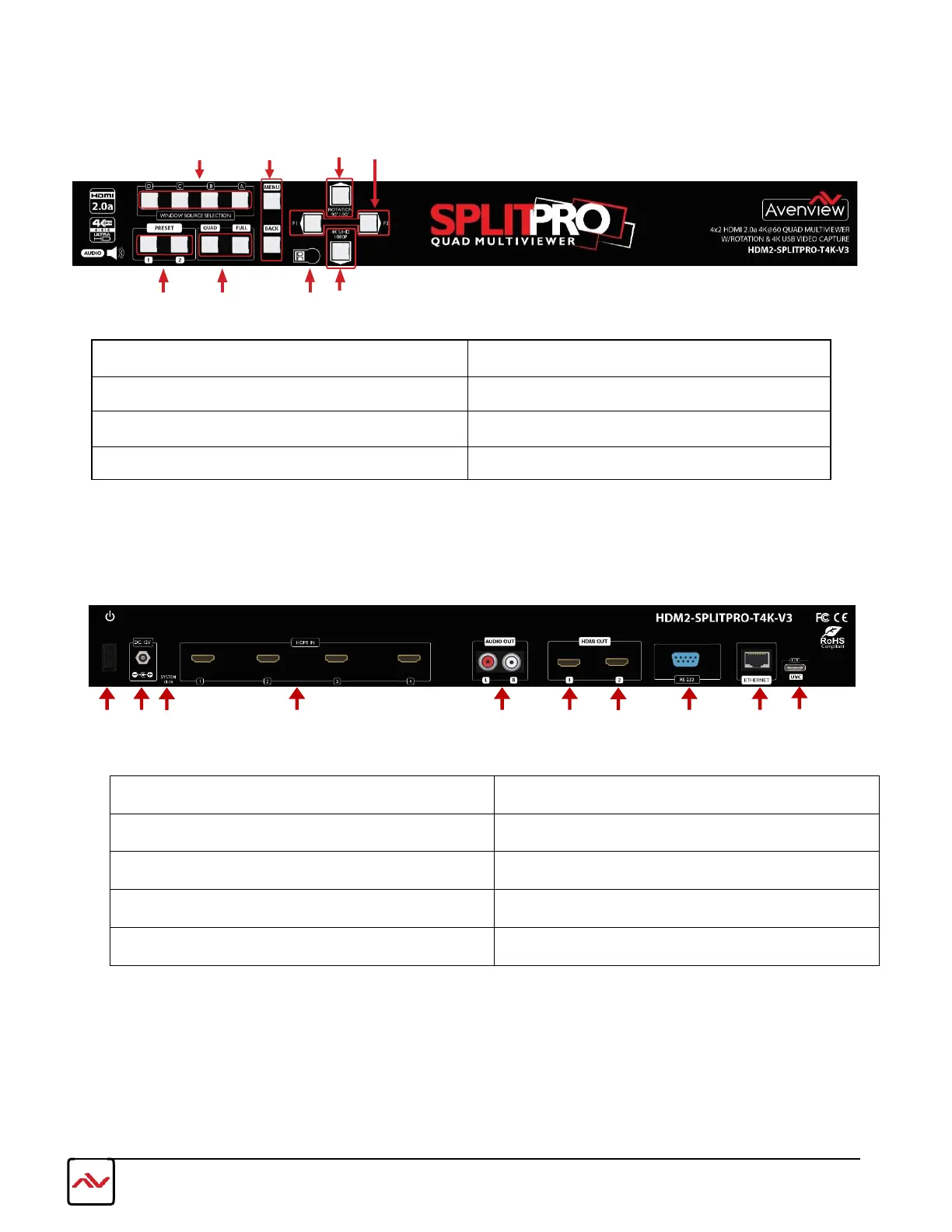

3.1 INPUT PANEL (HDM2-SPLITPRO-T4K-V3) Front
1.
Preset Layouts
2.
: Quad Screen / Full Screen Mode Buttons
3.
IR Sensor: Receive IR commands from IR remote
4.
Resolution Button: 4K UHD/1080p
5.
Reserved Buttons: F1 & F2
6.
Rotation Button: +90 & -90
7.
OSD Menu: Menu control button
8.
Window Source Selection: Source A/B/C/D
3.2 INPUT PANEL (HDM2-SPLITPRO-T4K-V3) Rear
1. Power Switch
2. DC 12V: plug the 12V DC power supply into the unit
supplied to an AC 110v outlet.
3. IR Input: 3.5mm socket for plugging in the extension
cable of IR receiver
4. HDMI IN 1-4: Connect up to 4 HDMI devices to the
INPUT ports 1-4( Blu-Ray Player, Media Box or PC)
5. Stereo Audio Out L/R: Audio Out
6. HDMI OUT 1: Connect HDMI 4K monitor/ Display to
view the four inputs connected.
7. HDMI OUT 2: Automatically downscale according to
EDID of connected display
8. RS-232: D-Sub 9pin port for sending and controlling
the unit by PC/Notebook via RS232 cable.
9. Ethernet: RJ45 jack for sending and controlling the
unit by PC/Notebook via Ethernet cable.
10. USB C: Connect to computer to capture up to 4K
video out and Firmware update port
7
6
5
10
9
8
6
5
4
2
1
1
2
3
4
8
3
7
