6

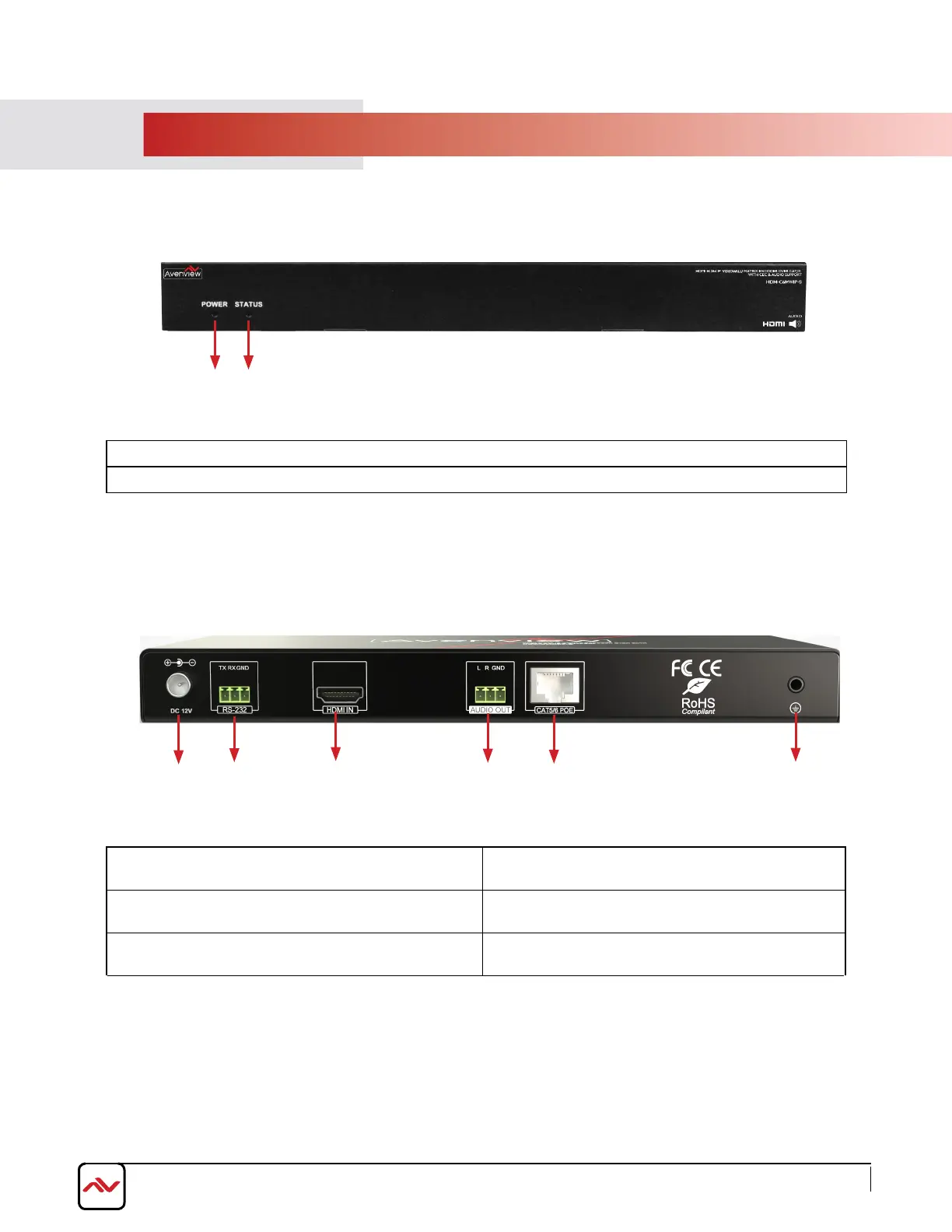

2.4 PANEL DESCRIPTION
2.4.1 FRONT PANEL (Sender/Encoder, HDM-C6MWIP-S)
1.
Power LED: Indicates if the unit is powered OFF or ON by a RED LED
2.
Status LED: Steady Blue Light ON indicates unit is communicating properly. LED blinking waiting on Source
2.4.2 REAR PANEL (Sender/Encoder, HDM-C6MWIP-S)
3.
HDMI IN: Connect to HDMI/DVI Source.
4.
5.
Stereo Audio OUT: Connects to an audio output
device such as an amplifier for audio de-embedding.
6.
CAT5/6: Used for transporting video/audio streams to
Decoder RX units connected.
7.
RS 232: RS-232 Data pass-through port for
receiving /sending commands to RS 232 devices.
8.
1 2
4
5
6
7
8
3
Power Jack: DC 12V 1A
Ground Screw: Ground connection prevent device
from voltage damage.
