VCI — Vehicle Communication Interface
The wireless diagnostic interface MaxiVCI V200 is a small vehicle communication
interface (VCI) used to connect to a vehicle’s DLC and connect wirelessly with the tablet
for vehicle data transmission.
Function Description

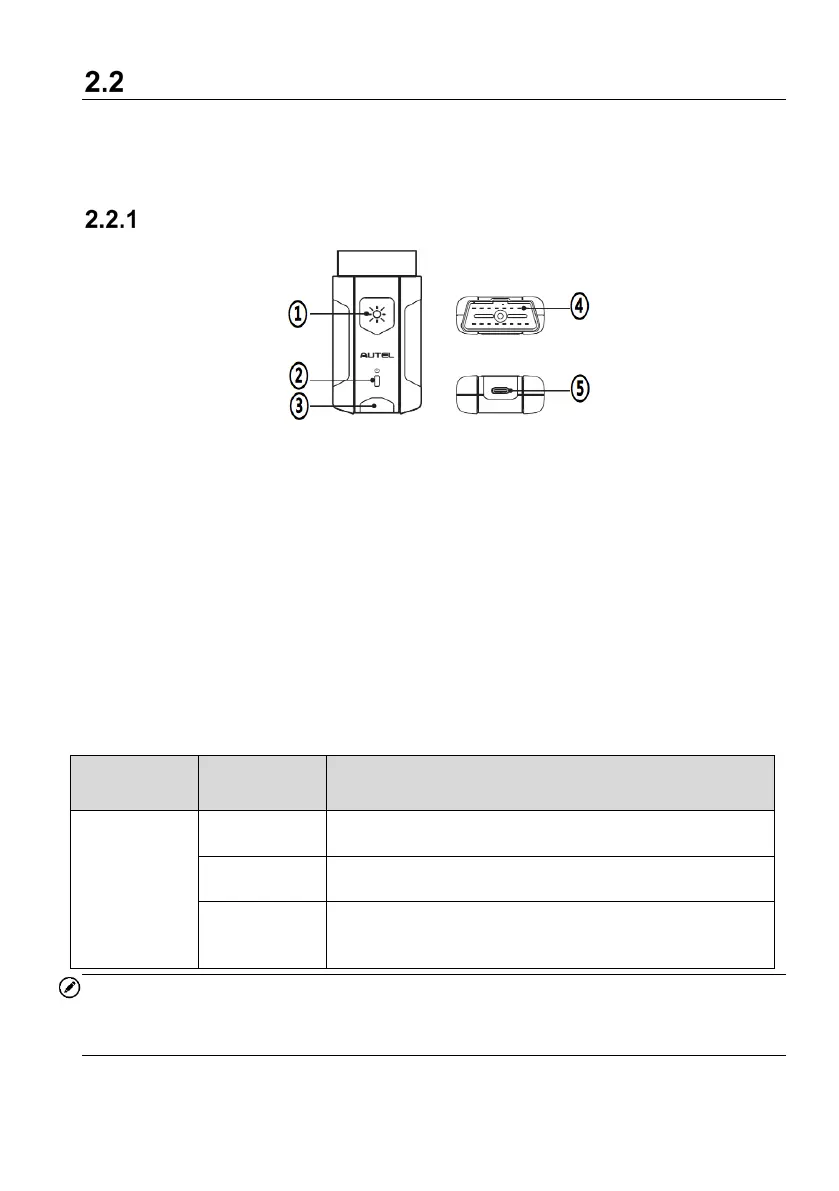

Figure 2-5 MaxiVCI V200 Views
① Flashlight Button
② Power LED
③ Connection LED
④ Vehicle Data Connector (16-pin) — connects the MaxiVCI V200 to the vehicle’s 16-
pin DLC directly.
⑤ USB Port — provides the easiest connection between the device and the tablet via a
USB cable.
Table 2-2 Power LED Description
LED Color Description
Power LED
Yellow The VCI is powered on and performing self-check.
Green The VCI is ready for use.
Flashing
Red
The firmware is updating.
NOTE
The power LED briefly lights yellow each time the device powers on and then lights green
when the device is ready.
