11SVRK SERIES Owner’s Manual
Attaching the Fans
The Auray RKFN-1 (sold separately) is a dedicated fan
for this server rack. It installs inside the top panel and
can be used as exhaust or to blow air into the rack.
Air flows toward the fan’s label.
To attach the fan inside the rack, use the mounting screws
that are included with the fan, and follow these steps:

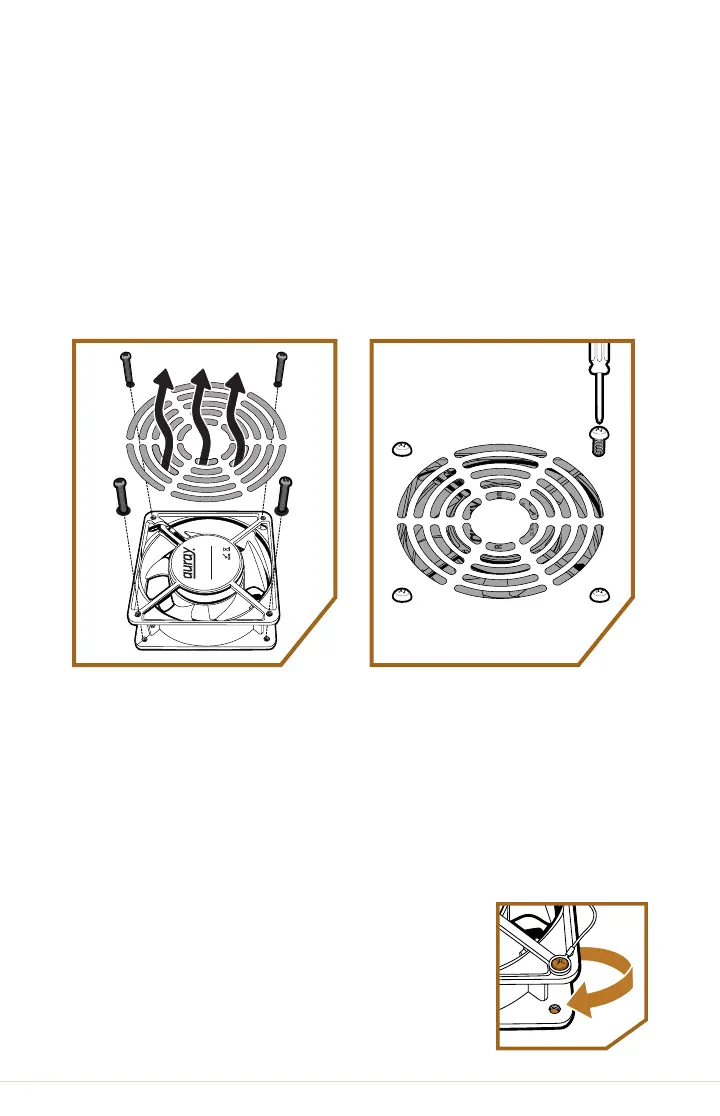

1. Determine the air flow
direction, and place
the fan inside the top
panel. Align the fans
with the mounting
holes inside the top
panel.
2. Screw in the fans
from the outside of the
top panel until secure.
IMPEDANCE P ROTECTED
AC 50/6 0Hz, 110V/ 0.15A
80CFM , 48dBA, 13W
RKFN-1 / Rack Fan
Made in Chi na
QG1010
IMPEDANCE P ROTECTED
AC 50/6 0Hz, 110V/ 0.15A
80CFM , 48dBA, 13W
RKFN-1 / Rack Fan
Made in Chi na
QG1010
IMPEDANCE PROTECTED
AC 50/60Hz, 110 V/0.15A
80CFM, 48dBA , 13W
RKFN-1 / Rack Fan
Made in C hina
QG1010
Important! A ground cable is attached
to the front side of the fan and is set to
be installed for exhaust. If you want the
fan to blow air into the rack, unscrew
the ground cable, and attach it to the
other side of the fan. This will allow the
fan to mount flush to the top panel.
IMPEDANCE PROTECTED
AC 50/60Hz,
110 V
/
0.15 A
80CFM, 48dBA, 13W
RKFN-1 / Rack Fan
Made in China
QG1010
IMPEDANCE PROTECTED
AC 50/60Hz, 110 V/0.15 A
80CFM, 48dBA, 13W
RKFN-1 / Rack Fan
Made in China
QG1010
