RACK MOUNTING RACK MOUNTING
It is not advised to run the unit in a rack above or below hot units such as valve
outboard and multichannel AD/DA converters without suitable ventilation space
around the unit.
We would suggest a space of at least one rack unit above and below the unit.
Additionally, do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including ampliers) that produce heat.
If the EVO SP8 is to be added to a rack that will be regularly transported (i.e live-
audio applications). We strongly recommend adding additional support to the
unit within the rack, such as a rack tray or side supports, to minimise the risk of
damage to the rack ears or to the EVO SP8 itself.
EVO SP8 RACK MOUNTING
Caution regarding rack placement
EVO SP8 can be tted with optional Rack Ears which can be purchased from
your dealer. These can be attached to the sides of the unit with the contained
screws.
The following items are provided with an EVO SP8 Rack Ear Kit (check within
packaging):
4 x M4 Screws
2 x EVO Rack Ears
Required:
3mm Hex Driver/Key
Pozidriv Screwdriver
1. Use a 3mm hex driver to remove the two screws either side near the front
of the unit.

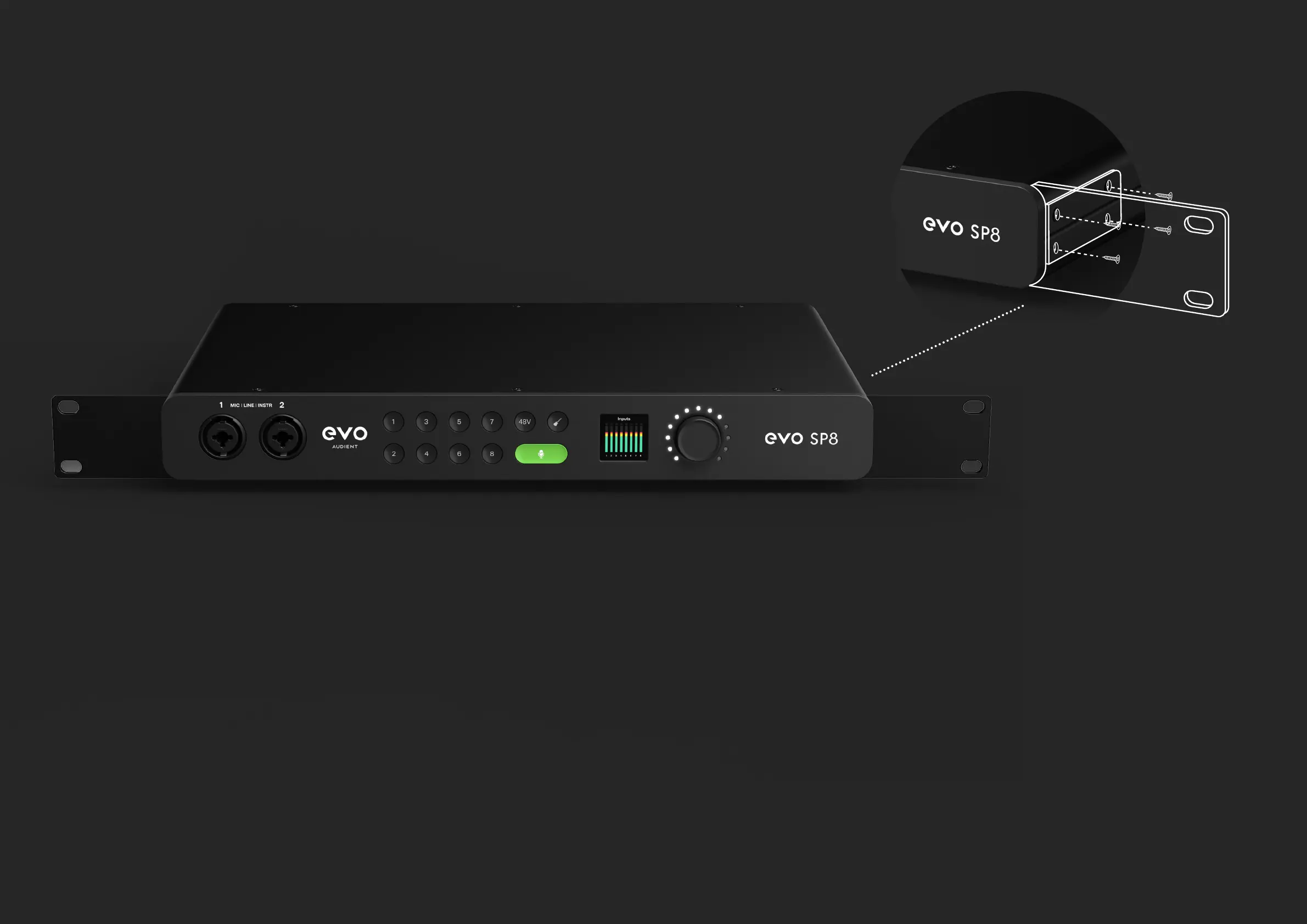

2. Position Rack Ear so that the four screw holes are inline with the four
screw holes found on the side of the EVO SP8. Refer to the image above for
correct positioning.
3. Insert the 4 x M4 screws into the holes and tighten until rm.
4. Remove the rubber feet which are located on the bottom of the EVO SP8
using a Pozidriv screwdriver.
How to install the Rack Ears
