www.audibax.com 45
M88 DSP / M88 DSP Dante
4bytes prefix
UDP:
4bytes
IP Address
2bytes
Port
1byte
Data Length
1byte
Reserved
128bytes
Data
4bytes prefix
0x3a504455（’:PDU’）
4bytes
0x1610A8C0
2bytes
0xC350
1byte
0x09
1byte
0x00
128bytes
”HELLO
DSP”
Serial Port-to-UDP (RS232 To UDP)
DSP devices support RS232 translating into UDP. The protocol formats are as follows.
After receiving the protocol format data packet, RS232 send data in the protocol to
appointed IP addresses and devices at ports.
For example, when sending data ”HELLO DSP to device port 50000 of device
”192.168.10.22”, the protocol commands are as follows.

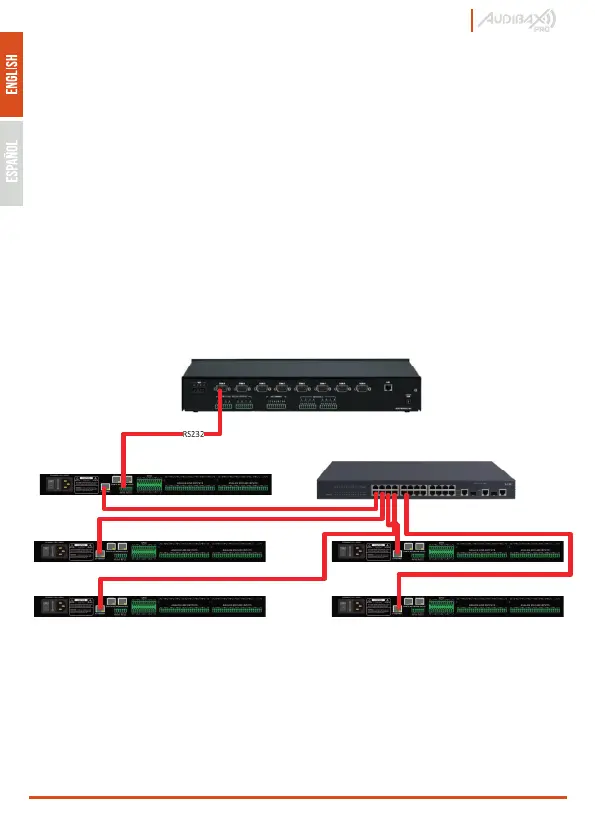

Application scenario: The function can be applied in scenarios when many central control
hosts have no network port. As shown in the figure, central control hosts transalate
network commands through serial ports to control any network device.
ASCII control command
Preface:
1, because the starting bit of the channel is 0, it can be understood that the 0-3 channel
corresponds to the IN1-4 software display channel, and 0-3 is only for example The actual
number of channels shall prevail the device model.
2. In the function on/off settings, 1 is open and 0 is off; For example, set:output#mu-
te#0-3#1 The last 1 stands for "turn on mute".
