www.audibax.com 36
M88 DSP / M88 DSP Dante
Each group can select 1-device
maximum number of passes. The
maximum number of channels for the
device depends on the model you
purchased. The channel is set as a
group, which will be distinguished by
a color on the Home screen.
The relationship between groups and link: The channel participating in group won’t
participate in LINK, which means group’s priority is higher than LINK. The difference
between groups and LINK is that groups can only control channel gain and mute while
LINK links all parameters at the channel.

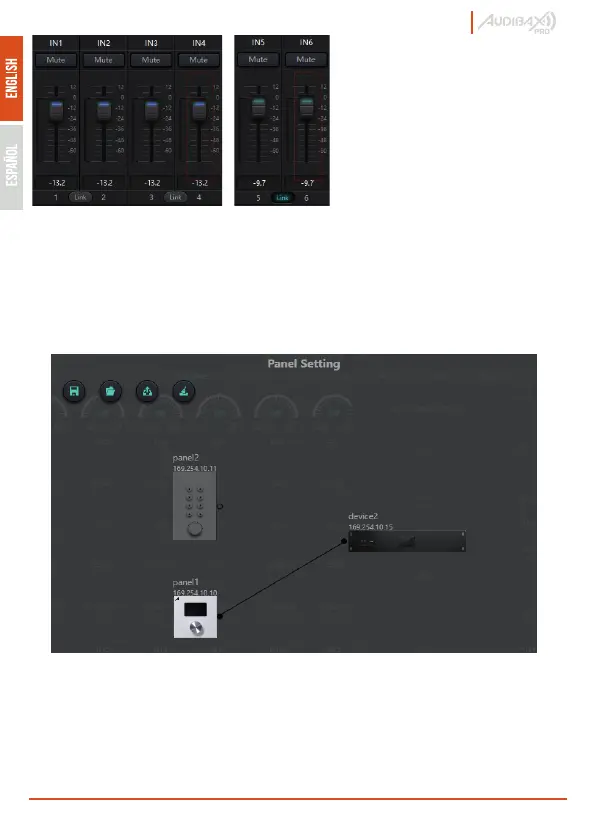

M88WP1 Panel Configuration
Drag the panel link icon to the unit you want to control with the mouse pointer.
Double click on the panel icon to enter the work menu.
The M88WP1 control panel consists of a 1.3" Oled screen, and a multi-function manage-
ment encoder, there are 5 types of menu within the configuration interface:
-Volume
-Button
- Preset
-Command
-Matrix
