- Space required:
1U (width * depth * height: 18.91″ x 9.5″x 1.72″ / 48.02 cm x 24.13 cm x 4.37 cm).
- Power supply
Universal input power: 110-240 VAC, 50/60 Hz, 40 W.
- Ventilation:
The maximum recommended operating ambient temperature is 30°C/86°C.
Make sure there are no blockages on both sides (space (at least 5.08 cm, 2 inches) should
be reserved). Do not cover the device's fan heater with newspapers, tablecloths, curtains
and other objects.
- Weight:
6.6 lbs. (3 kilograms)
Front panel
Back panel

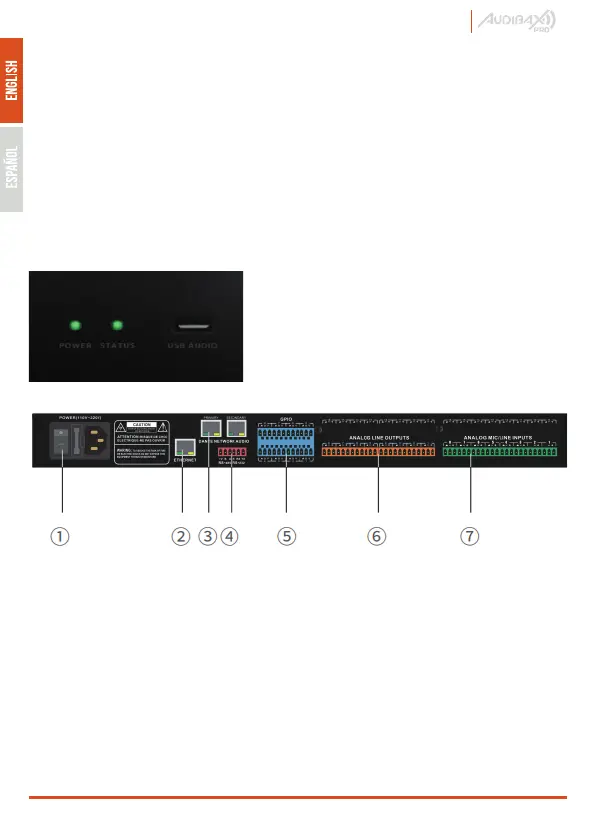

Power: LED power indicator;
STATUS: The device's operating status indicator.
USB AUDIO: USB sound card (2 ch input + 2 ch
output), full duplex audio interface.
① POWER power interface: connect the unit with the supplied cable to a voltage of
110V-240V, fuse holder, power off switch of the unit.
② ETHERNET network control interface: Connect the equipment to a router or dchp
server to operate the unit from a computer.
③ Dante network interface: (only in M88DSP Dante) network port dedicated to the Dante
protocol, Primary and Secondary connector to work in cascade.
④ RS232+RS485 interface
⑤ GPIO interface: Eight definable input/output logic level control ports, controlled by the
control module in the device design. It can be set in the software to reach the output level
(0V or 5V) after internal conditions are triggered; Or activation by input level (0V or 5V) to
control the corresponding internal functions.
⑥Analog signal output interface: can be connected to power amplifiers, active speakers
or other equipment.
⑦ Analog signal input interface: allows connection to sound players, microphones and
microphones powered by Phantom 48V.
