Je bekijkt pagina 29 van 106

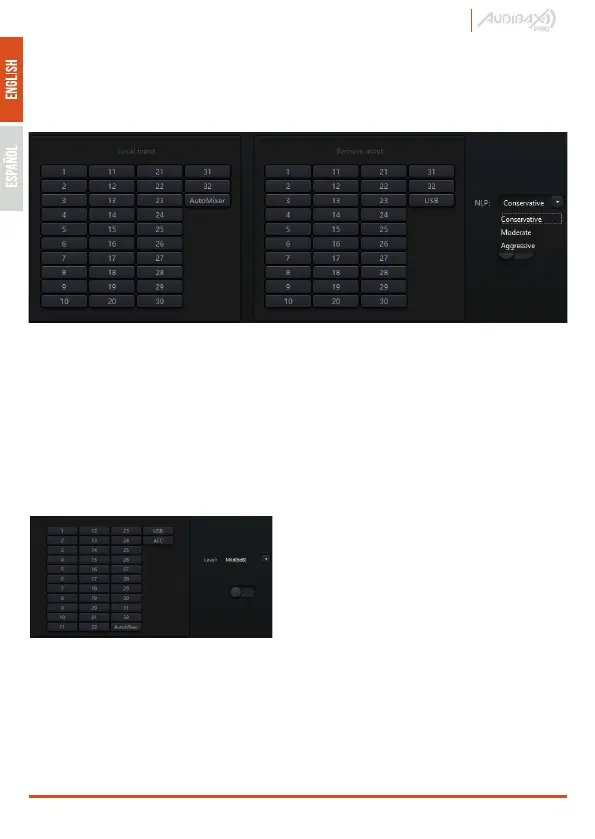

There is only an echo cancellation module in DSP Controller. Two local input and remote
output mixers are preset to realize multichannel signal participating echo cancellation as
shown in the figure. A parameter can be adjusted:
Non-linear filter (NLP): Three types including Conservative, Moderate and Aggressive can
be selected to determine echo suppression level.
Note: The settings of echo cancellation module shall be used cooperatively with matrix
module setting signal router.
Noise Suppression
Noise suppression module can remove non-human voice effectively. It may distinguish
human voice from non-human voice and treat the latter as noise. After its processing,
only human voice is the oretically left for an audio file consisting both human voice and
noise.
There is only an echo cancellation module in DSP Controller. Multichannel mixers are
preset to realize multichannel participating noise cancellation as shown in the figure.
Matrix
Matrix has dual operation functions including router and sound mixing. As shown in the
figure, the horizontal direction indicates the input channel and the vertical direction
indicates the output channel. One-to-one input and output is the default setting. If it is
necessary to mix voices from channel 1 and channel 2 and then send them to channel 1,
users only need to click 1 in the horizontal and vertical directions on output channel 1. If
inputs 1 and 2 participate in the mix automatic, then the output should not be influenced
by it. Similarly, after configuring the auto mixing, echo cancellation and noise suppression
module, users must also configure the matrix to obtain the correct signal path ratio.
Suppression level: There are totally three levels
including Mild(6dB)，Medium(10dB)
and Aggressive(15dB) for selection. dB here
refers to the decibel of suppression noise
reduction. The bigger the value, the more harm
on voice generated, which is inevitable.
M88 DSP / M88 DSP Dante
www.audibax.com 27
