Velocity
85
Reports
All Devices

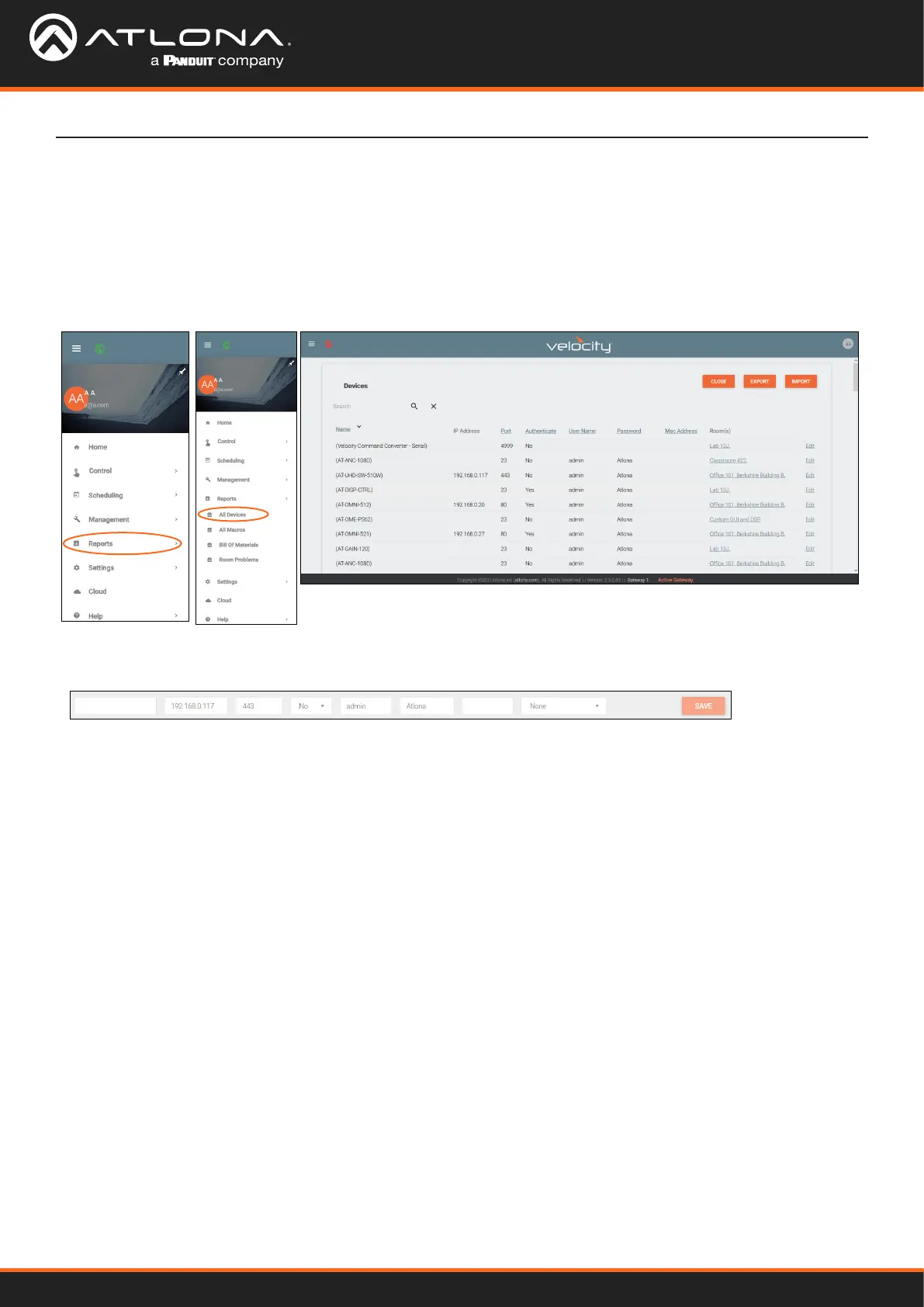

All devices added to the site can be found within the All Devices page. This page will allow devices to be named, the
IP and port set, and User Name/Password set if required.
4. Select Edit on the right side of the screen to adjust device settings. Name (alias), IP Address, Port,
Authentication, User Name, Password, Mac Address, and IP Linking can be updated here.
1. Press the ≡ button on the top right of the screen.
2. Select Reports from the menu.
3. Select All Devices from the options that becomes available. A new window will appear.
• Export button - Will provide a CSV le of the site devices along with any Atlona URLs for easier access for
purchasing.
• Import button - This will allow for any already set up Macros that had been previously exported or saved to a PC
to be uploaded to this site.
• Close button - Will close the page and redirect to the buildings page.
