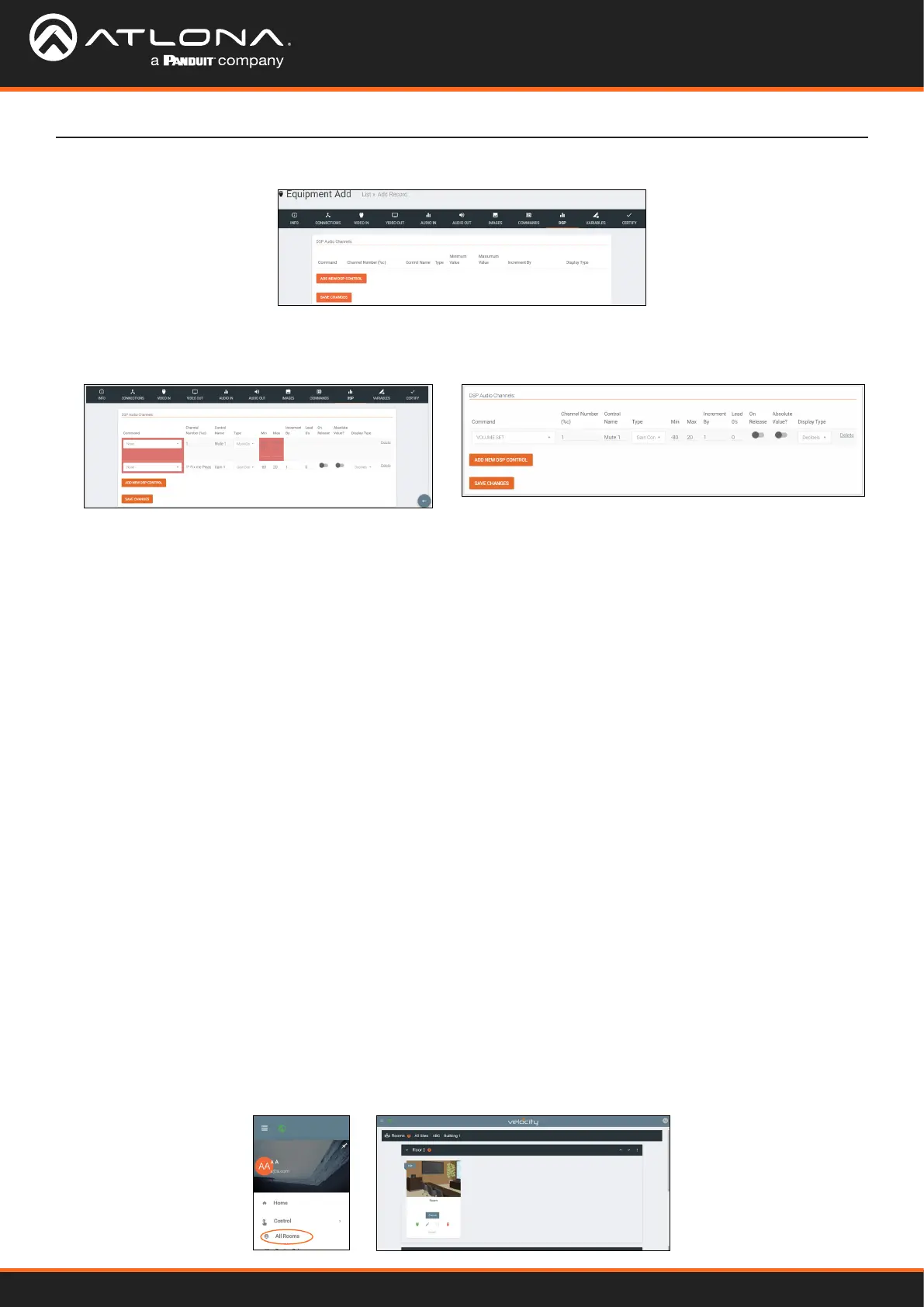

Velocity
79
Device Drivers
Once the DSP has been saved, it can be added to a room and congured for access.
e.g.
Command: Mute Toggle
Channel Number: 0
Control Name: Master Mute
Type: Mute/On/O
Minimum Value: OFF
Maximum Value: ON
Command: Volume Adjust
Channel Number: 0
Control Name: Master Volume
Type: Gain Control (Integer)
Minimum Value: -60
Maximum Value: 15
Increment By: 1
Display Type: Decibels
Command Variables
Command - Select the previously created volume or mute command.
Channel Number - Select the value of %c for this command. Channel number will vary by device.
Control Name - Provide a name to make command selection within the room easier.
Type - Select between the drop down options: Gain Control (Integer), Gain Control (Float), and Mute/On/O.
Minimum and Maximum Value - This will vary based on type of command and unit values. (Mute commands
should come from the device manual)
Increment By - Select the value the volume level will increase/decrease by when the volume button is pressed.
Lead 0s - Set the number of 0s at the beginning of the integer for devices that require multiple 0s to work.
On Release - Sets the command to only send when the button is released.
Absolute Value? - Sets the variable so that negative numbers are possible to use. Only positive numbers are
available if this is disabled.
Display Type - The value will appear when adjusting Volume in the control screen. Options: Decibels (dB),
Percentage of Range, and None.
21. Press the ADD NEW DSP CONTROL button. New elds will appear for each variable command already created.
e.g. One eld for mute and one for volume.
22. Select and ll each command with the correct information.
23. Repeat steps 20 and 21 until all channel commands are created.
24. Save the DSP.
20. Once the volume level and mute variable commands have been created, select DSP from the top navigation.
Once the switcher has been saved, it can be added to a room and congured for access.
1. Select the ≡ button from the top left corner and select Control.
2. Select the All Rooms. A new screen will open.
3. Select the Edit Room Technology button on the room the switcher will be located.
