Velocity
74
Device Drivers

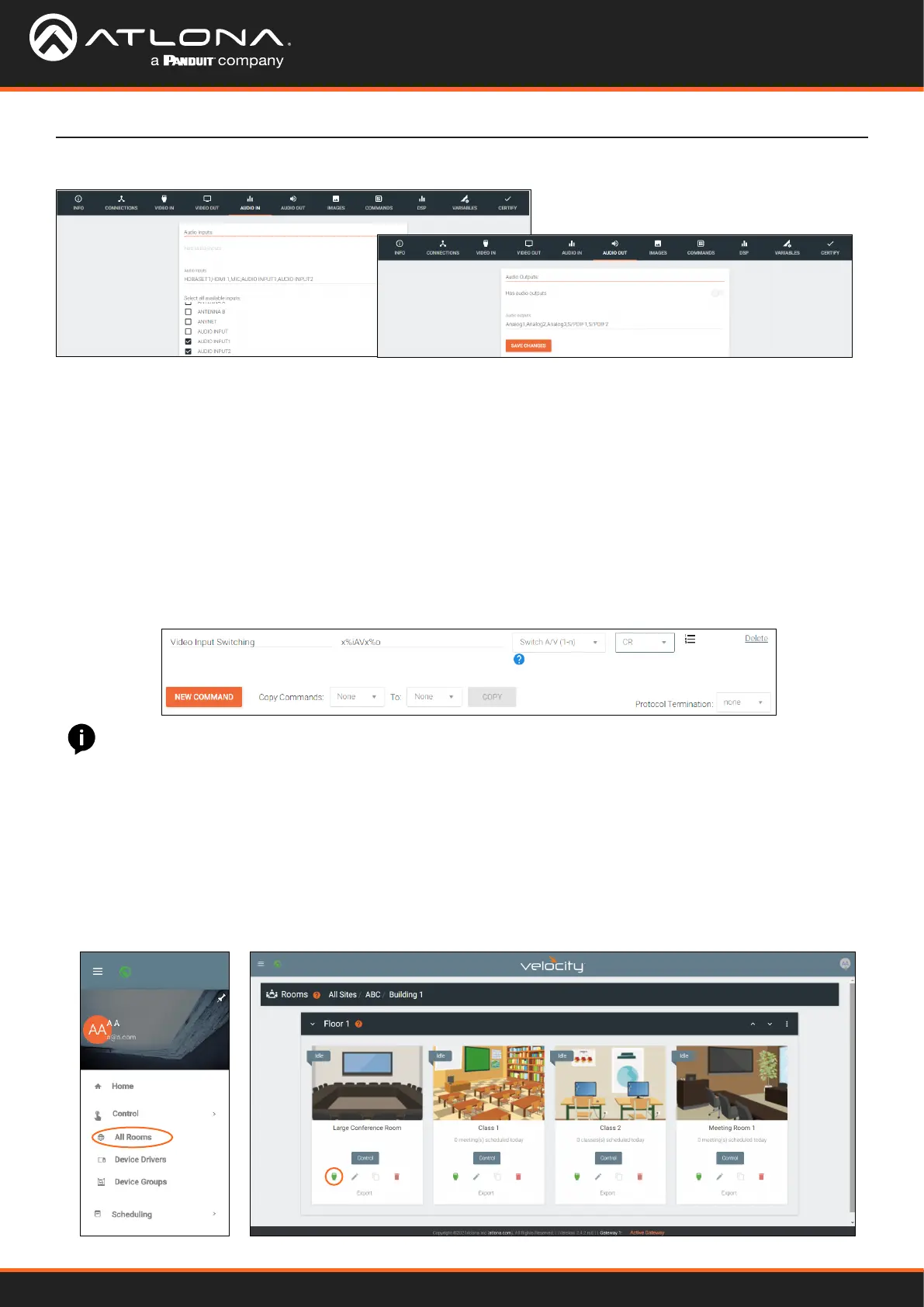

18. Select Commands from the top navigation.
19. The basic input commands for the switcher will already be listed. Type in the corresponding commands found
within the device manual.
20. Add in new commands as needed.
a. For automatic matrix input/output switching, a variable command can be used.
1. With variables, if the command is x1AVx2 the variable will be x%iAVx%o to signify inputs (i) and outputs
(o). Variables for audio will be the same. e.g. If the command is x1Ax2, the variable will be x%iAx%o.
2. Once the variable is created, select the input type from the drop down. e.g. Switch A/V (1-n) for audio
and video input/output matrix switching.
3. *Optional* Delete the input commands. If the automatic switching functionality is being used, the
individual input commands are not needed.
21. Save the switcher.
Once the switcher has been saved, it can be added to a room and congured for access.
1. Select the ≡ button from the top left corner and select Control.
2. Select the All Rooms. A new screen will open.
3. Select the Edit Room Technology button on the room the switcher will be located.
NOTE: 1-n is for matrix switchers with the command for input/output switching starting at 1. 0-n is for matrix
switchers with the command for input/output switching starting at 0.
NOTE: To have independent audio or video switching, a variable command will need to be created for each.
Use the Switch Audio (1-n)/(0-n) or Switch Video (1-n)/(0-n) variables.
17. Repeat steps 12 to 14 for AUDIO IN and AUDIO OUT if there is audio switching on the switcher.
